Front Side Door Window Frame Rear Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

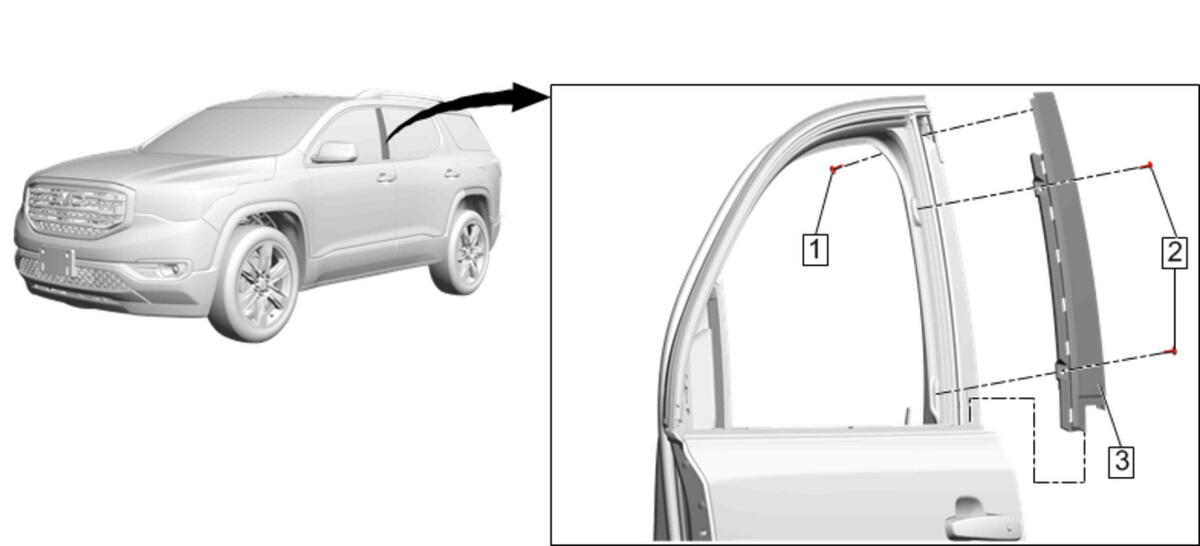

Callout	Component Name
Preliminary Procedures Front Side Door Window Garnish Molding Replacement Front Side Door Window Belt Reveal Molding Replacement It is not necessary to completely remove the weatherstrip. Reposition the upper rear edge of the front side door weatherstrip. Front Side Door Window Weatherstrip Replacement
1	Front Side Door Window Frame Inner Upper Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Door Window Frame Rear Applique Outer Screw [2x] Tighten 2.5 N.m (22 lb in)
3	Front Side Door Window Frame Rear Applique Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and install the rear applique to the vehicle.
