Installation Procedure

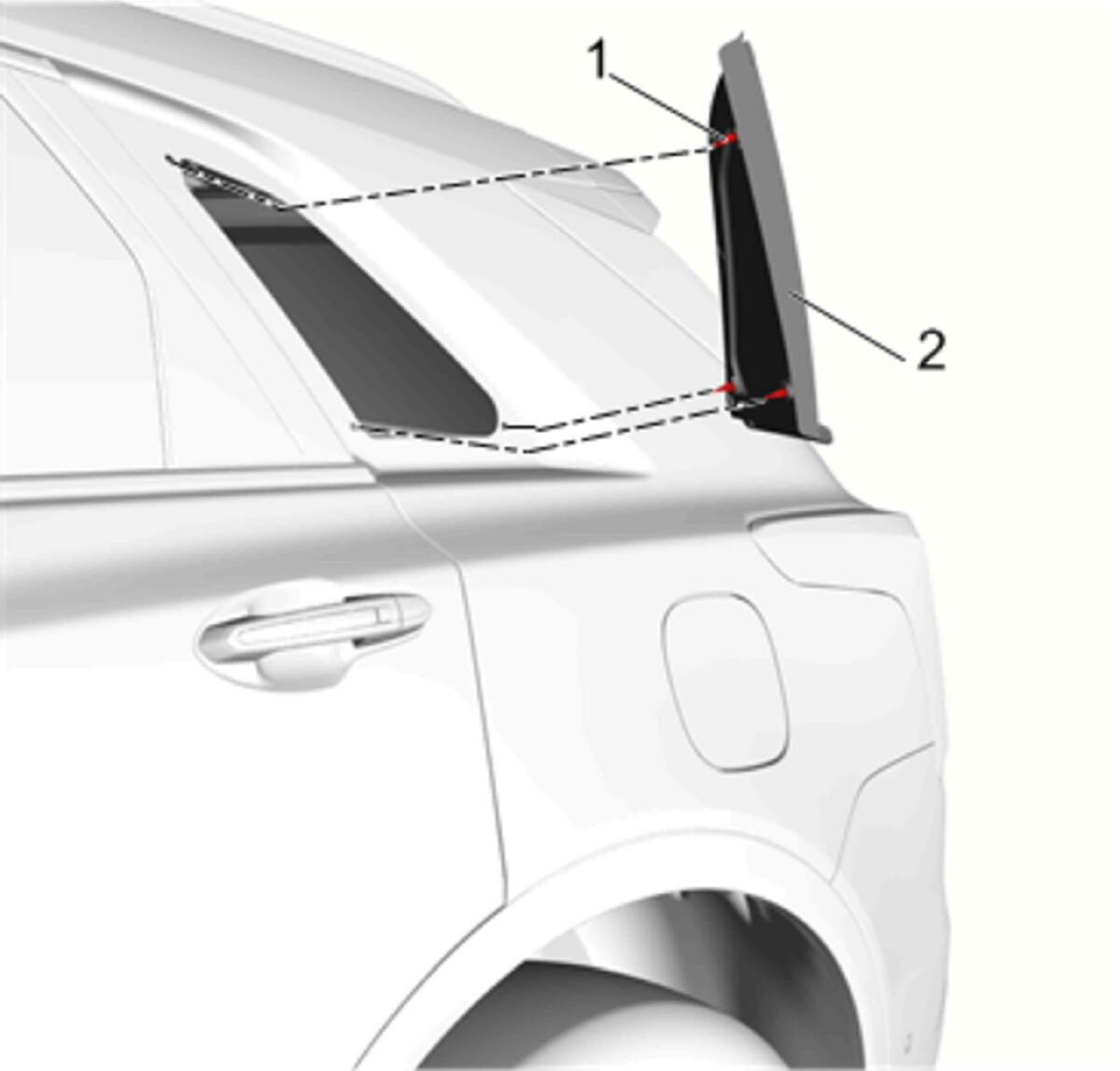

  1. GM4283942Courtesy of GENERAL MOTORS COMPANY

    Body Side Window (2) - Install - Adhesive Installation of Bodyside Stationary Windows

  2. Quarter Lower Rear Trim Panel - Install - Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side)
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
