Removal Procedure

  1. GM4580542

    Outside Rearview Mirror Glass (1) - Remove - Outside Rearview Mirror Glass Replacement

  2. GM4726495

    Outside Rearview Mirror Upper Housing Cover (1) - Remove - Outside Rearview Mirror Housing Upper Cover Replacement

  3. GM4726520

    Outside rearview mirror housing bezel screw (1) - Remove [2x]

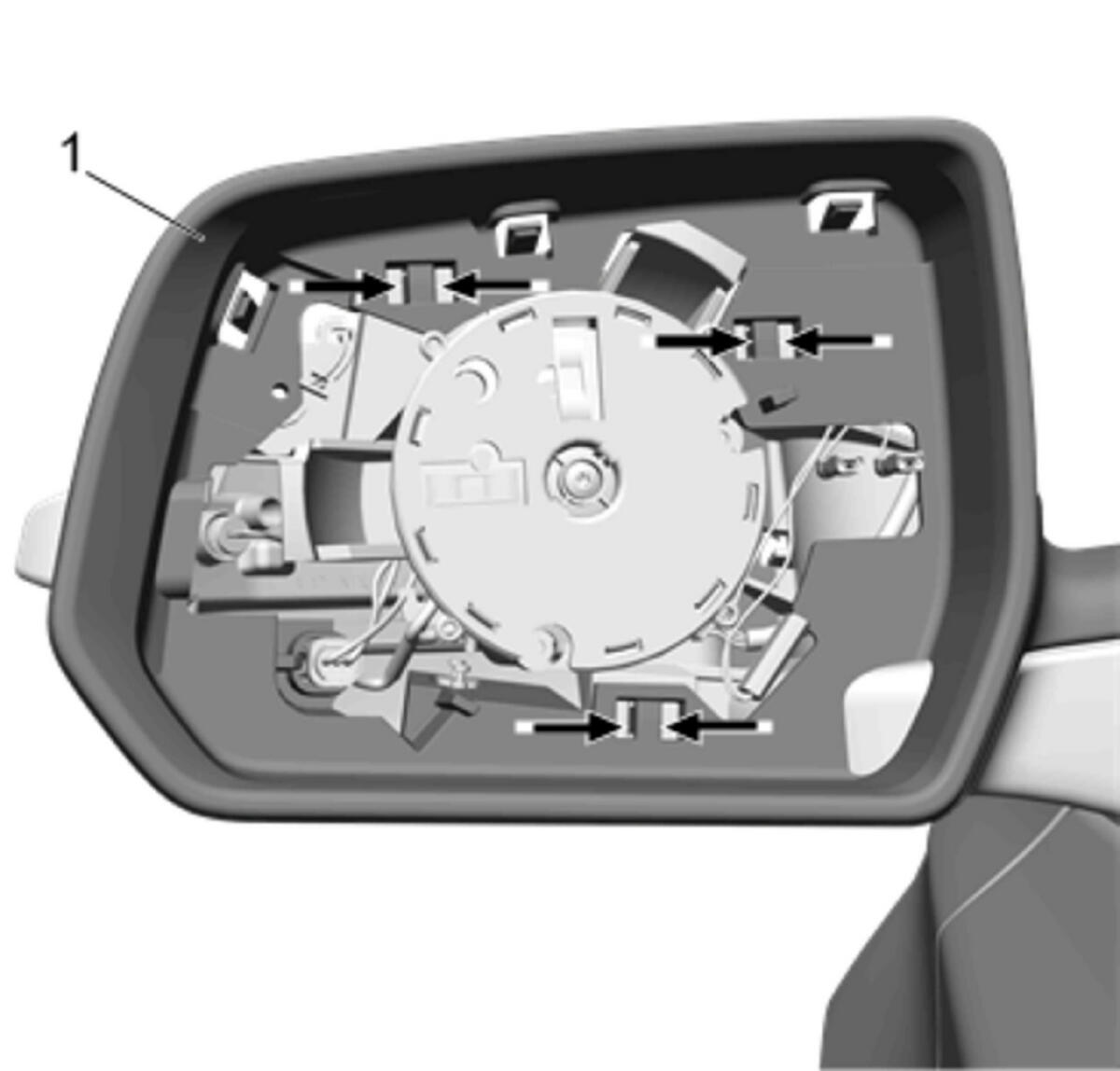

  4. GM4726501

    Squeeze the retaining clips to release the outside rearview mirror housing bezel. (1) - Remove

  5. GM4726153

    Disconnect harness from bezel (1).

  6. Outside Rearview Mirror Housing Bezel (1) - Remove
