Preliminary Procedures
- Instrument Panel Compartment Door Replacement
- Human Machine Interface Control Module Bypass Module Bracket Replacement
|

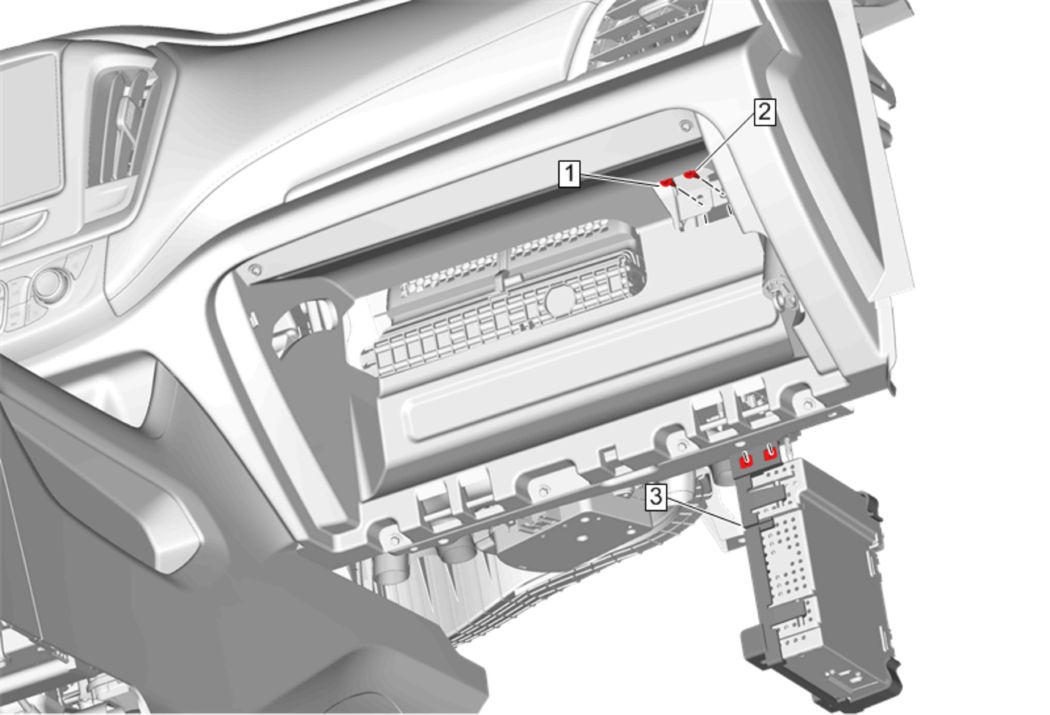

| 1 |
Radio Bracket Bolt
Tighten
2.5 N.m (22 lb in) |
| 2 |
Human Machine Interface Control Module Bracket Bolt
Tighten
2.5 N.m (22 lb in) |
| 3 |
Radio Bracket Procedure
- Disconnect the electrical connectors.
- Transfer components as necessary.
|
