Windshield Washer Nozzle Hose Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

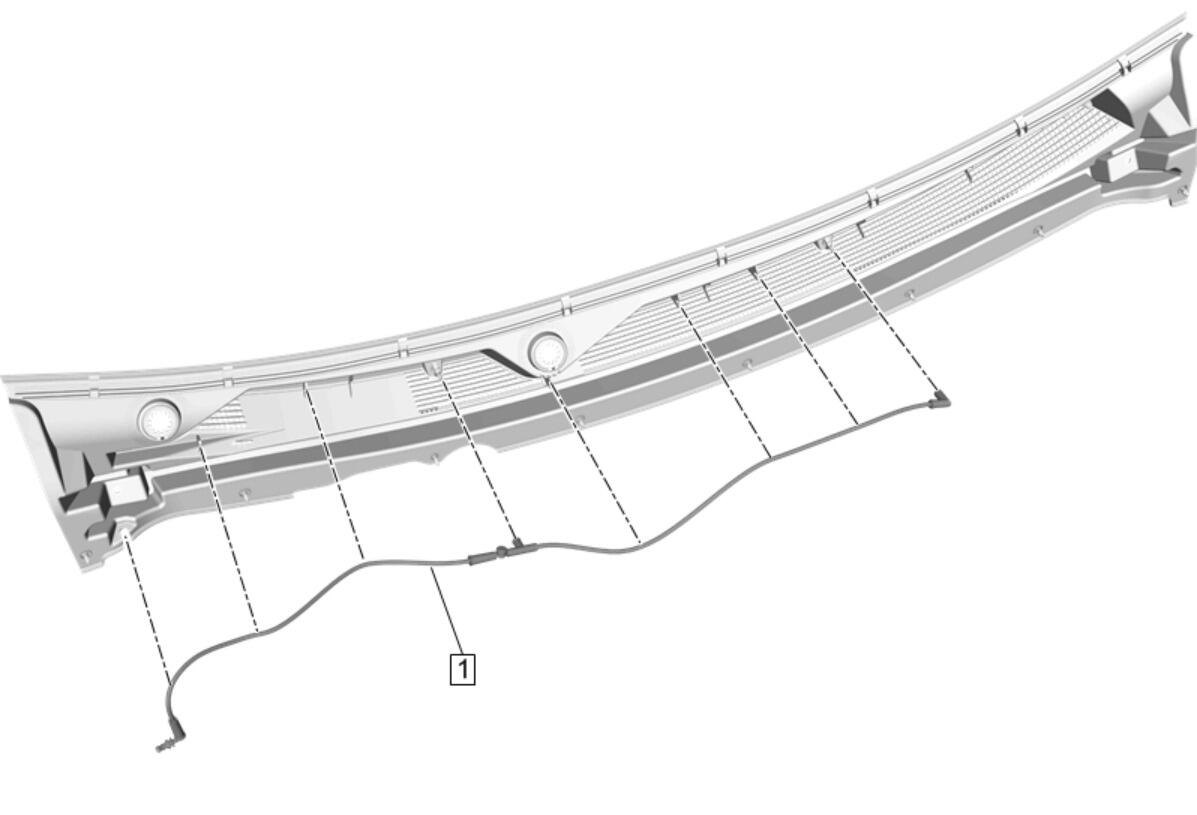

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Washer Nozzle Hose Procedure Disconnect the windshield washer nozzle hose at both windshield washer nozzles. Remove the windshield washer hose from the air inlet grille panel retainers. Slide the windshield washer nozzle hose between the air inlet grille panel and the foam seal.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Replacement

Windshield Washer Nozzle Hose

Procedure

Disconnect the windshield washer nozzle hose at both windshield washer nozzles.
Remove the windshield washer hose from the air inlet grille panel retainers.
Slide the windshield washer nozzle hose between the air inlet grille panel and the foam seal.
