Rear Window Washer Nozzle Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear End Spoiler Replacement

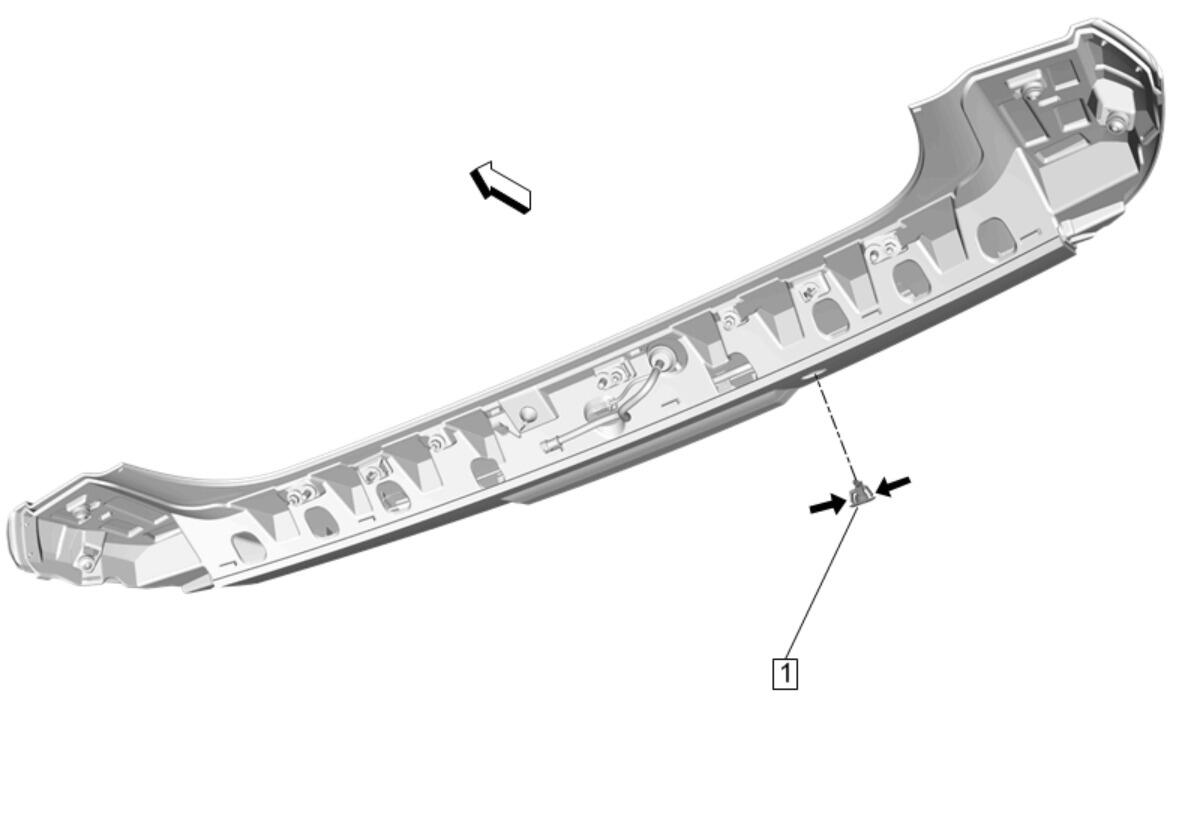

1	Rear Window Washer Nozzle Procedure Disconnect the windshield washer liftgate extension rear hose from the rear window washer nozzle. Depress the tabs on the rear window washer nozzle to remove.

Callout

Component Name

Preliminary Procedure
Rear End Spoiler Replacement

Rear Window Washer Nozzle

Procedure

Disconnect the windshield washer liftgate extension rear hose from the rear window washer nozzle.
Depress the tabs on the rear window washer nozzle to remove.
