Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4755883Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Install

  2. GM4756474Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install - Instrument Panel Assembly Replacement

  3. GM4754904Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  4. GM4751041Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)

  5. GM4751035Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bracket (1) - Install - Instrument Panel Knee Bolster Bracket Replacement

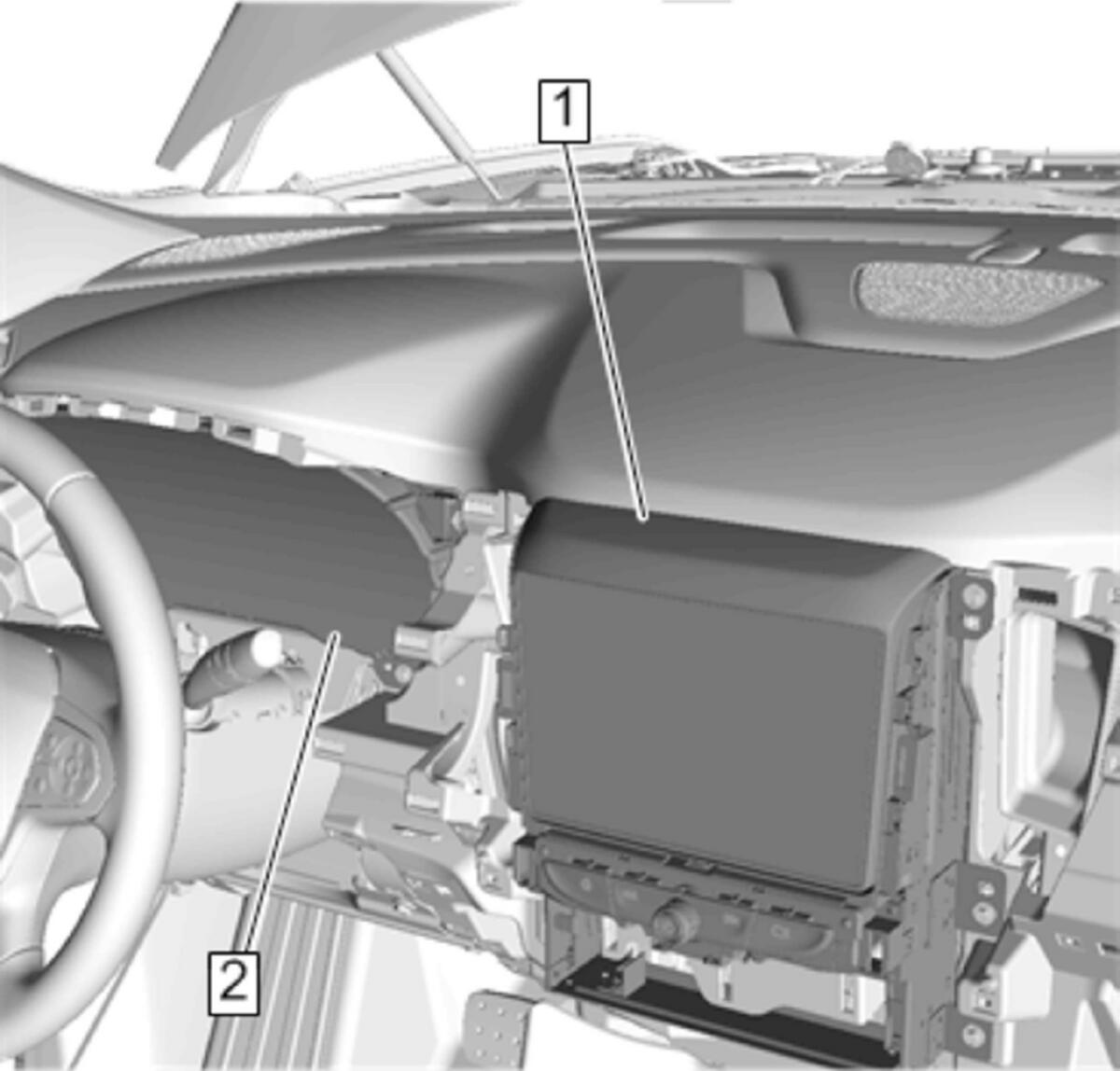

  6. GM4756496Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Cluster (2) - Install - Instrument Cluster Replacement
  8. Radio Control (1) - Install - Radio Control Assembly Replacement (With IO5, IO6)

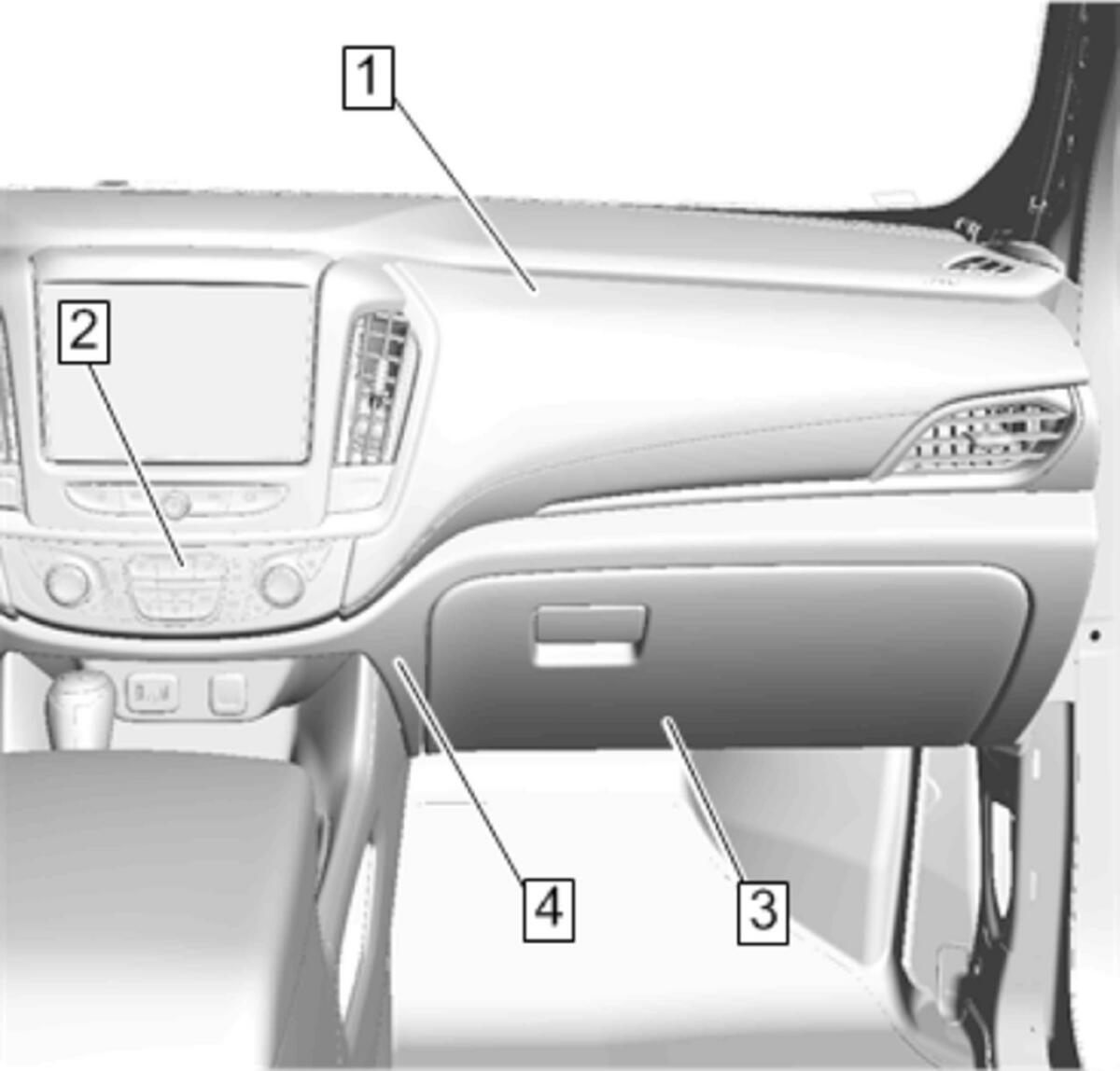

  9. GM4739266Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Opening Frame (4) - Install - Instrument Panel Compartment Door Opening Frame Replacement

  10. Instrument Panel Compartment Door (3) - Install - Instrument Panel Compartment Door Replacement
  11. Connect the electrical connectors.
  12. Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
  13. Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
  14. GM4749778Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Plate (1) - Install - Front Floor Console Cup Holder Plate Replacement

  15. GM4749780Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

  16. GM4749789Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

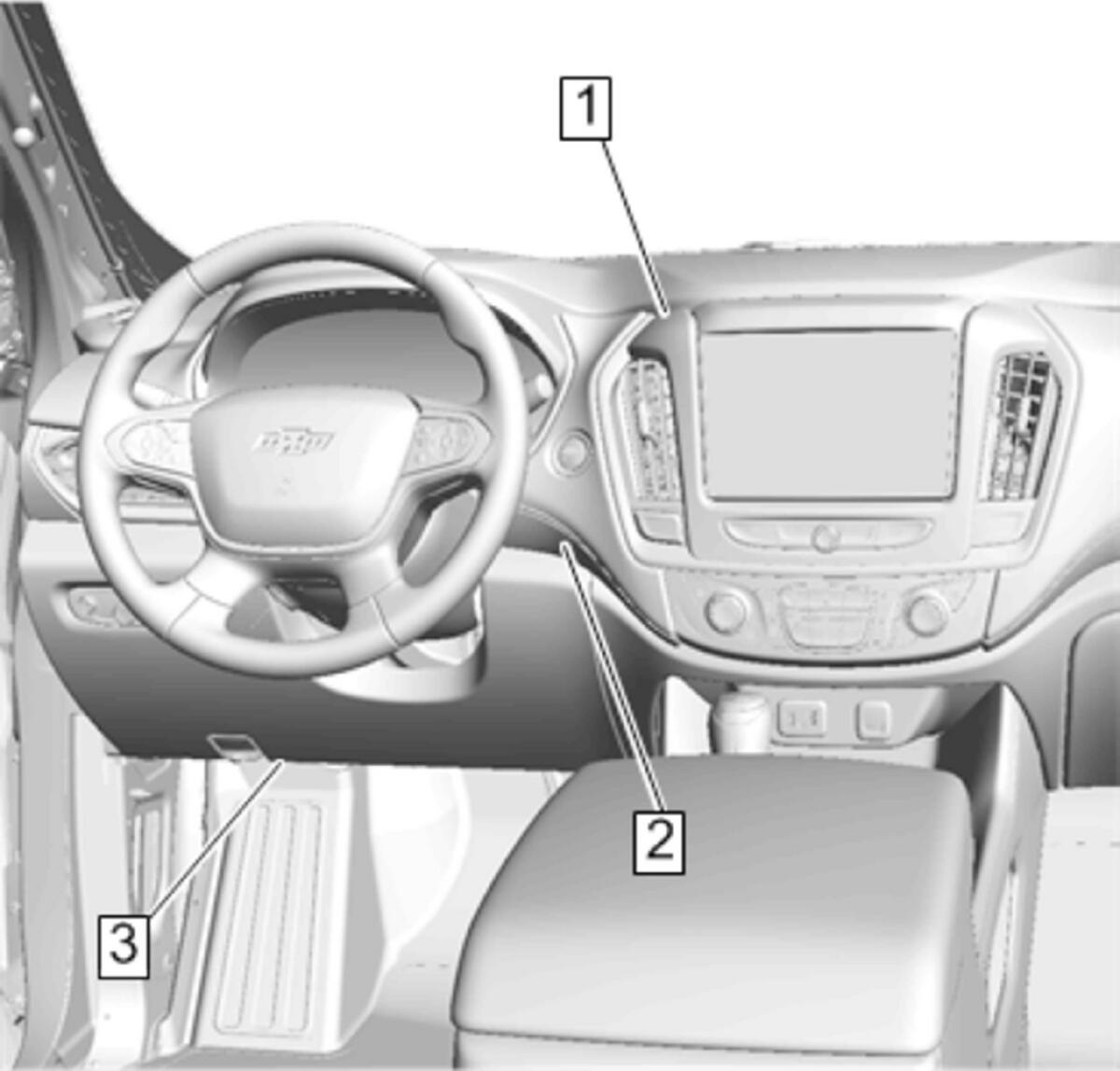

  17. GM4739254Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side

  18. Instrument Panel Radio Front Trim Plate (1) - Install - Instrument Panel Radio Front Trim Plate Replacement (RPO IOA) , or Instrument Panel Radio Front Trim Plate Replacement (RPO IO5, IO6)
  19. Instrument Panel Knee Bolster (3) - Install - Instrument Panel Knee Bolster Replacement
