Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
- Front Floor Console Extension Panel - Left Side - Remove - Front Floor Console Extension Panel Replacement - Left Side
- Brake and Accelerator Pedal Assembly - Remove - Brake and Accelerator Pedal Assembly Replacement

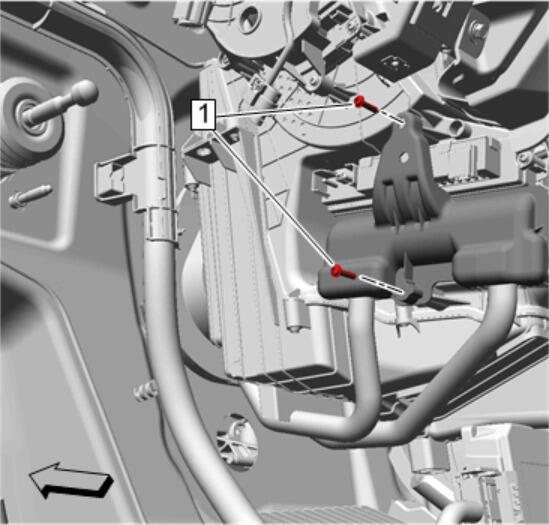

Heater Core Cover Screw (1) - Remove [2x]

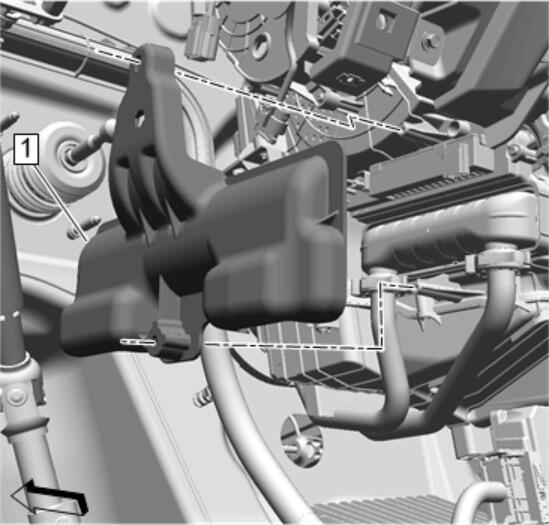

Heater Core Cover (1) - Remove
Prior to removing the heater core tubes, use clean and absorbent shop clothes/towels to cover the electrical components protecting the electrical components from water damage.

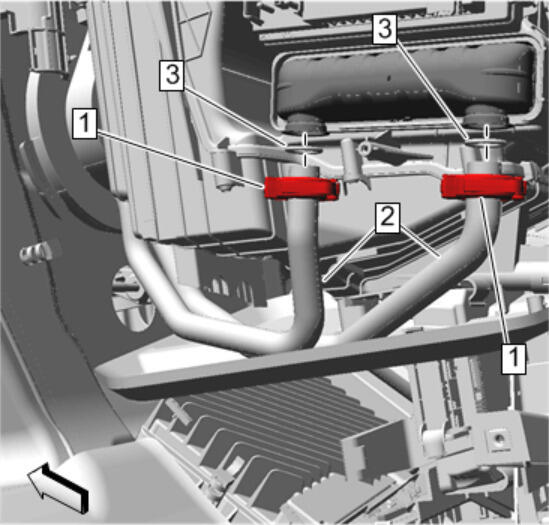

- Heater Core Tube Clamp (1) - Remove and DISCARD [2x]
- Heater Core Tube (2) @ Heater Core - Remove [2x]
- DISCARD the O-ring seal. (3) [2x]

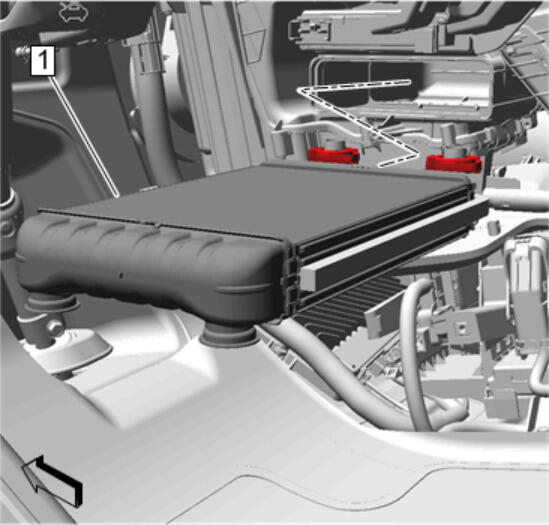

Heater Core (1) - Remove
