Radio Antenna Opening Cover Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

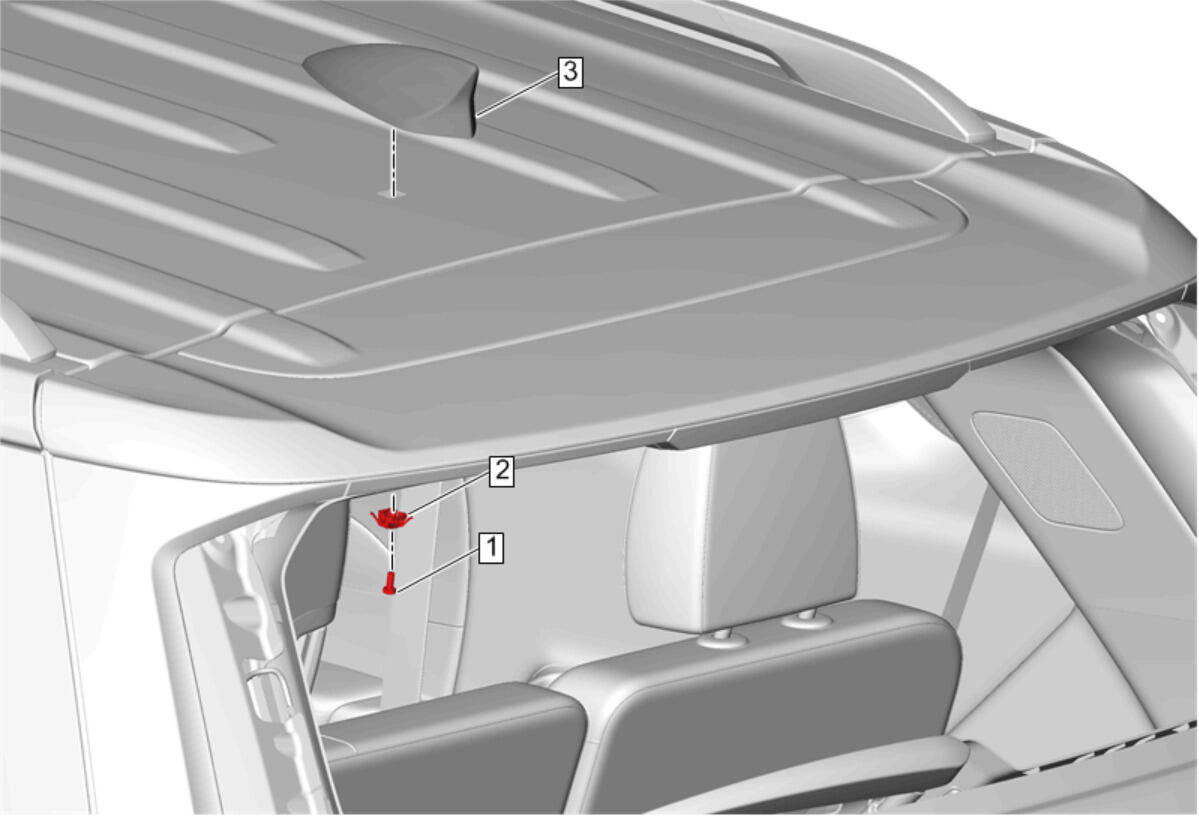

| Callout | Component Name |
|---|---|
| Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U) |
|
| 1 | Radio Antenna Opening Cover Bolt
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Opening Cover Retainer
NOTE:
Discard the retainer and replace with a new retainer. |
| 3 | Radio Antenna Opening Cover Procedure The new bolt and retainer will fit through roof opening prior to tightening the bolt and compressing the retainer. |
