Transmission Fluid Cooler Pipe Replacement (with V08): Notes

  1. Place a drain pan under the vehicle.
  2. GM4755739
    NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

    Transmission Fluid Cooler Pipe (1) @ Radiator - Disconnect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

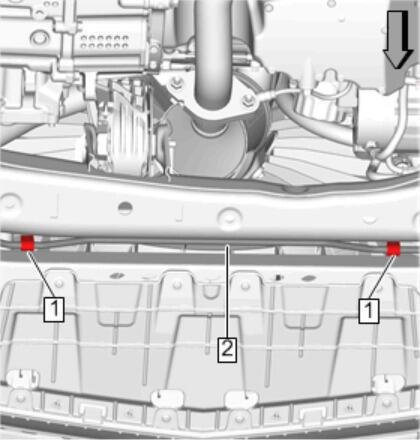

  3. GM4755634

    Transmission Fluid Cooler Pipe (2) @ Transmission Fluid Cooler Pipe Clip (1) - Unclip [2x]

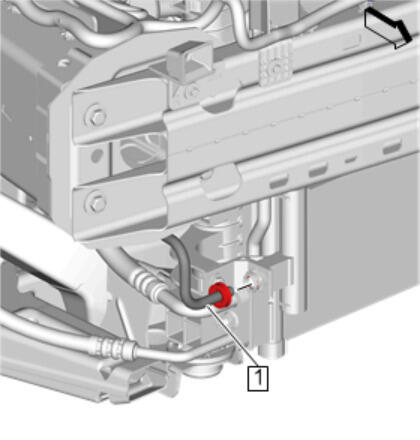

  4. GM4755655

    Transmission Fluid Cooler Pipe (1) @ Transmission Fluid Auxiliary Cooler - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

  5. Remove the transmission fluid cooler pipe (1) from vehicle.
