Transmission Fluid Cooler Pipe Fitting Replacement

Callout	Component Name
Preliminary Procedures Place a drain pan under the transmission fluid cooler pipe. Remove the transmission fluid cooler pipe from the auxiliary oil cooler. Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection Cap the fittings and plug the holes when removing the transmission fluid cooler pipe from the auxiliary oil cooler.

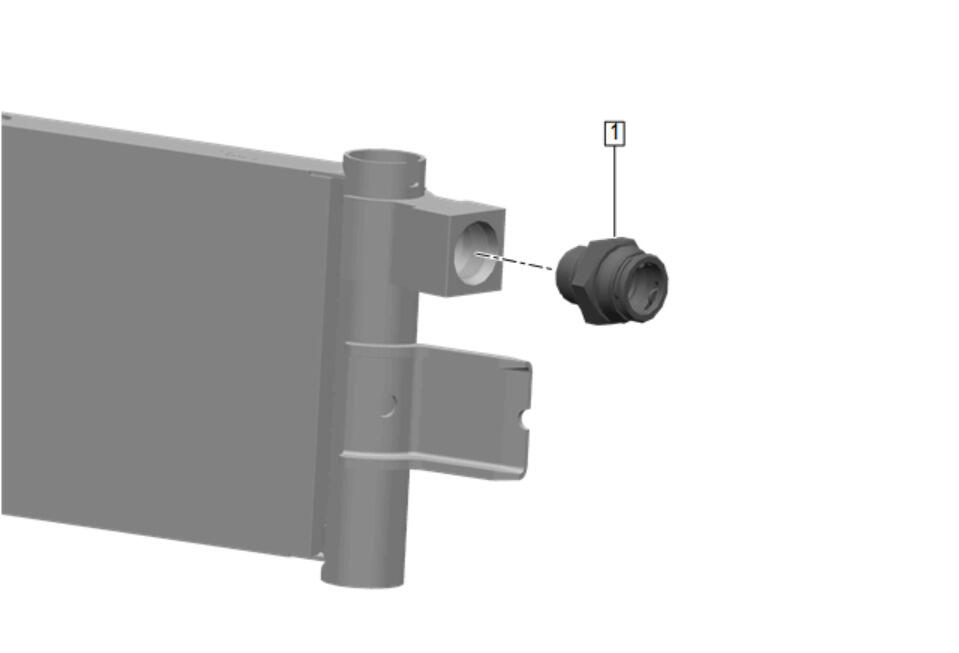

1	Transmission Fluid Cooler Pipe Connector NOTE: The correct thread engagement is critical, hand start the fitting. Cross-threaded fittings can achieve proper tightness and still leak. Procedure Inspect the transmission fluid level. Inspect for transmission fluid leaks. CAUTION: Refer to Component Fastener Tightening Caution . Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Place a drain pan under the transmission fluid cooler pipe.
Remove the transmission fluid cooler pipe from the auxiliary oil cooler. Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Cap the fittings and plug the holes when removing the transmission fluid cooler pipe from the auxiliary oil cooler.

Transmission Fluid Cooler Pipe Connector

NOTE:

The correct thread engagement is critical, hand start the fitting. Cross-threaded fittings can achieve proper tightness and still leak.

Procedure

CAUTION:

Tighten
20 N.m (15 lb ft)
