Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

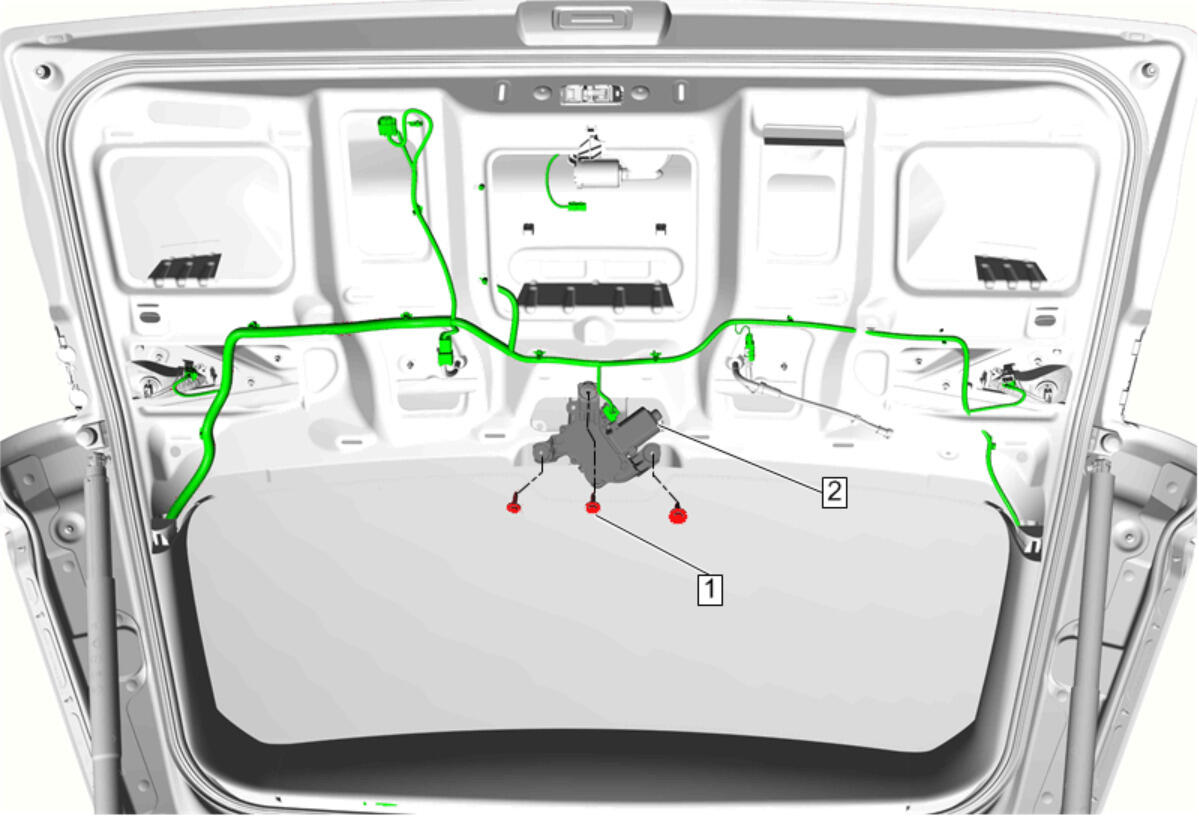

GM4744693Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Window Wiper Arm Replacement
  2. Open the liftgate.
  3. Liftgate Lower Trim Finish Panel Replacement
1 Rear Window Wiper Motor Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
9N.m (80 lb in)
2 Rear Window Wiper Motor

Procedure

  1. Disconnect the electrical connector.
  2. Remove the rear window wiper motor from the vehicle.
