Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The front side door trim has an integral front side door trim assembly belt bracket that hooks over the front side door window inner sealing strip assembly and the front side door window garnish molding.

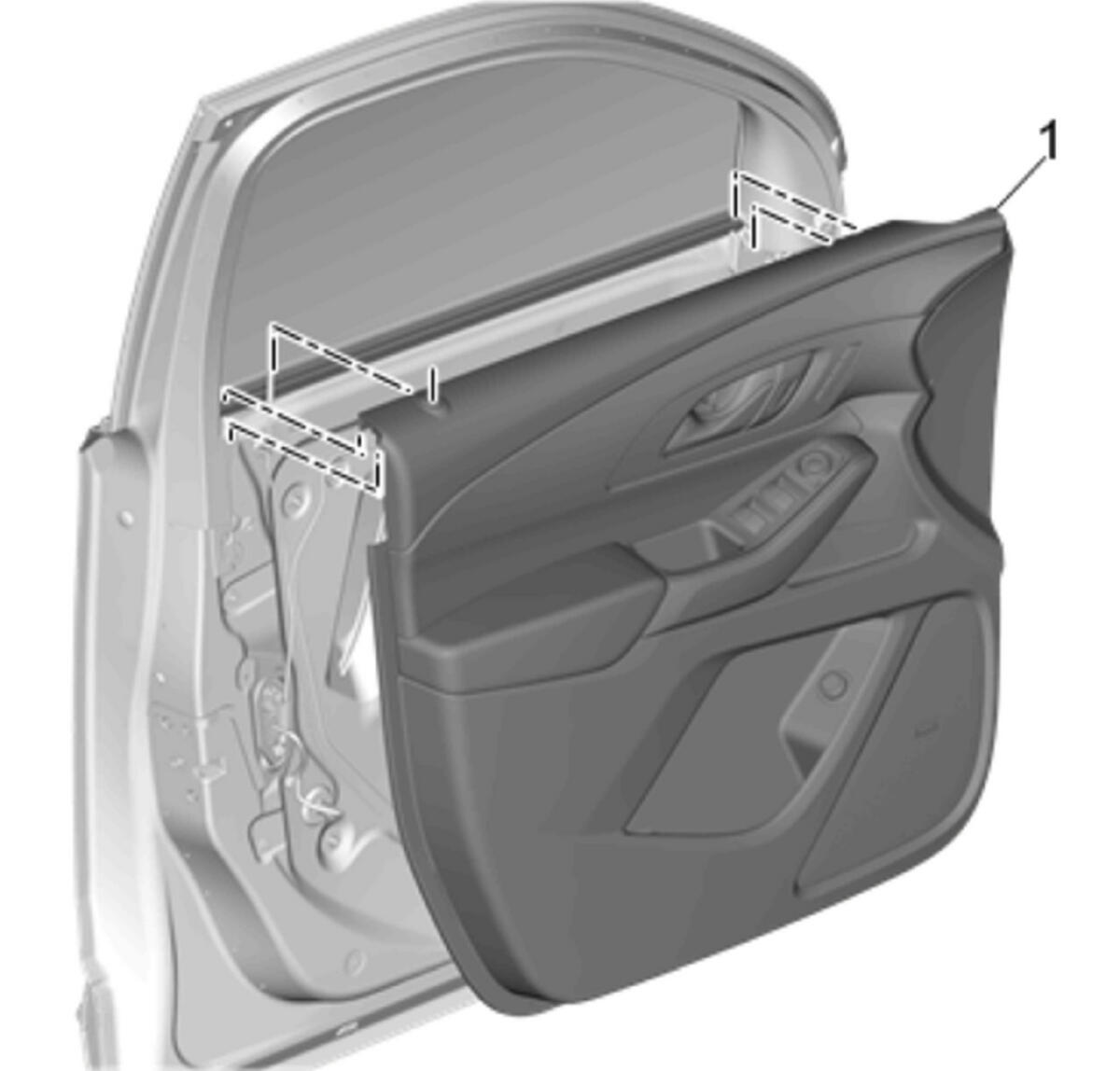

Front Side Door Trim (1) - Install
1. Connect the electrical connector.
2. Route lock rod through lock rod bezel on front side door trim. (1)
3. Hook the integral front side door trim assembly belt bracket to the front side door window inner sealing strip assembly and the front side door window garnish molding and swing in to install.
4. Connect the door lock retainer cable to the front side door trim (1)and the inside handle.
Engage most forward locator pin.
Engage remaining retainers starting from the bottom to the front and rear.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Trim Panel Bolt (1) - Install and tighten [2x] 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

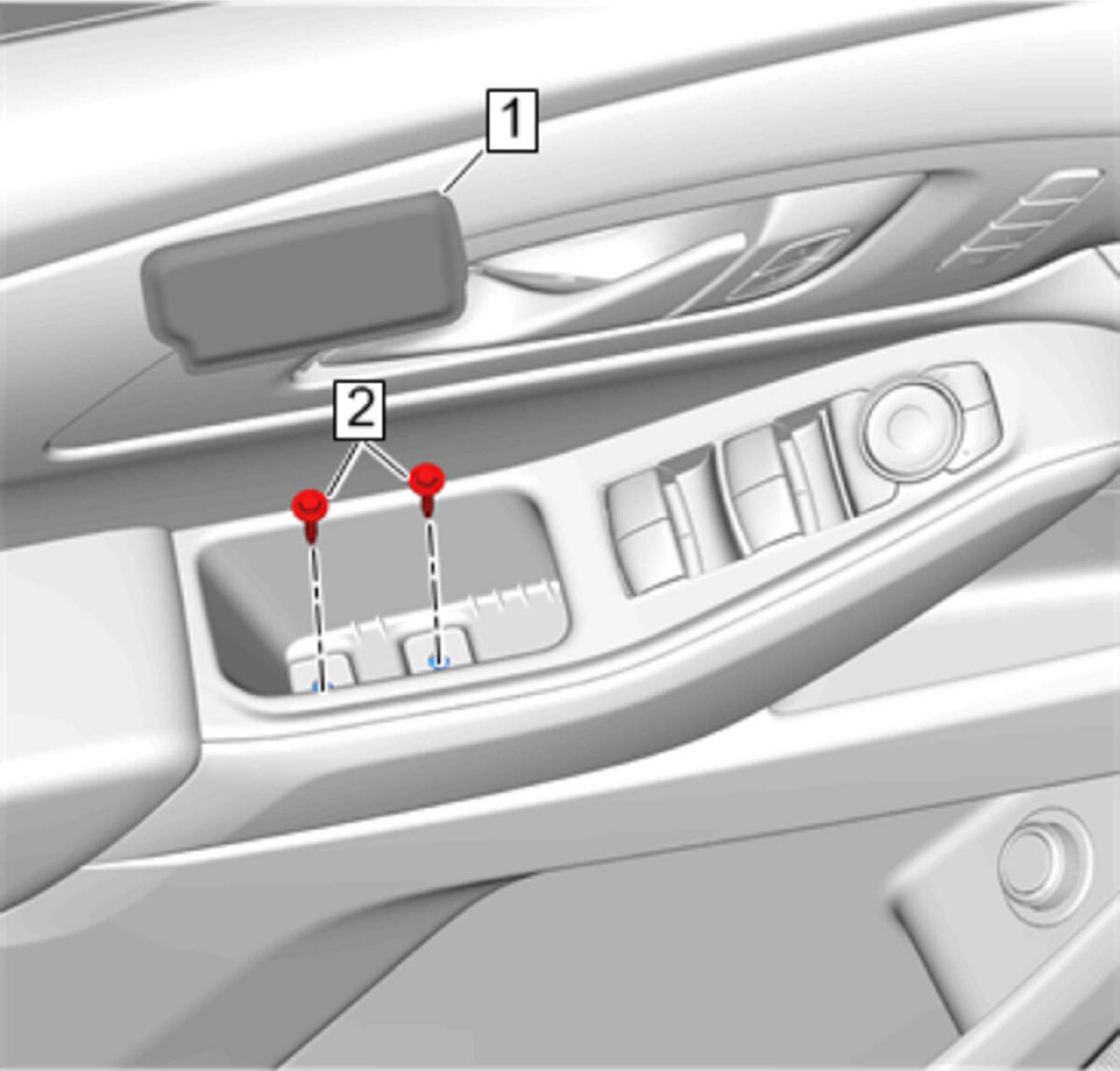

Front Side Door Armrest Pull Cup Bolt (2) - Install and tighten [2x] 2.5 N.m (22 lb in)
Front Side Door Armrest Pull Cup Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

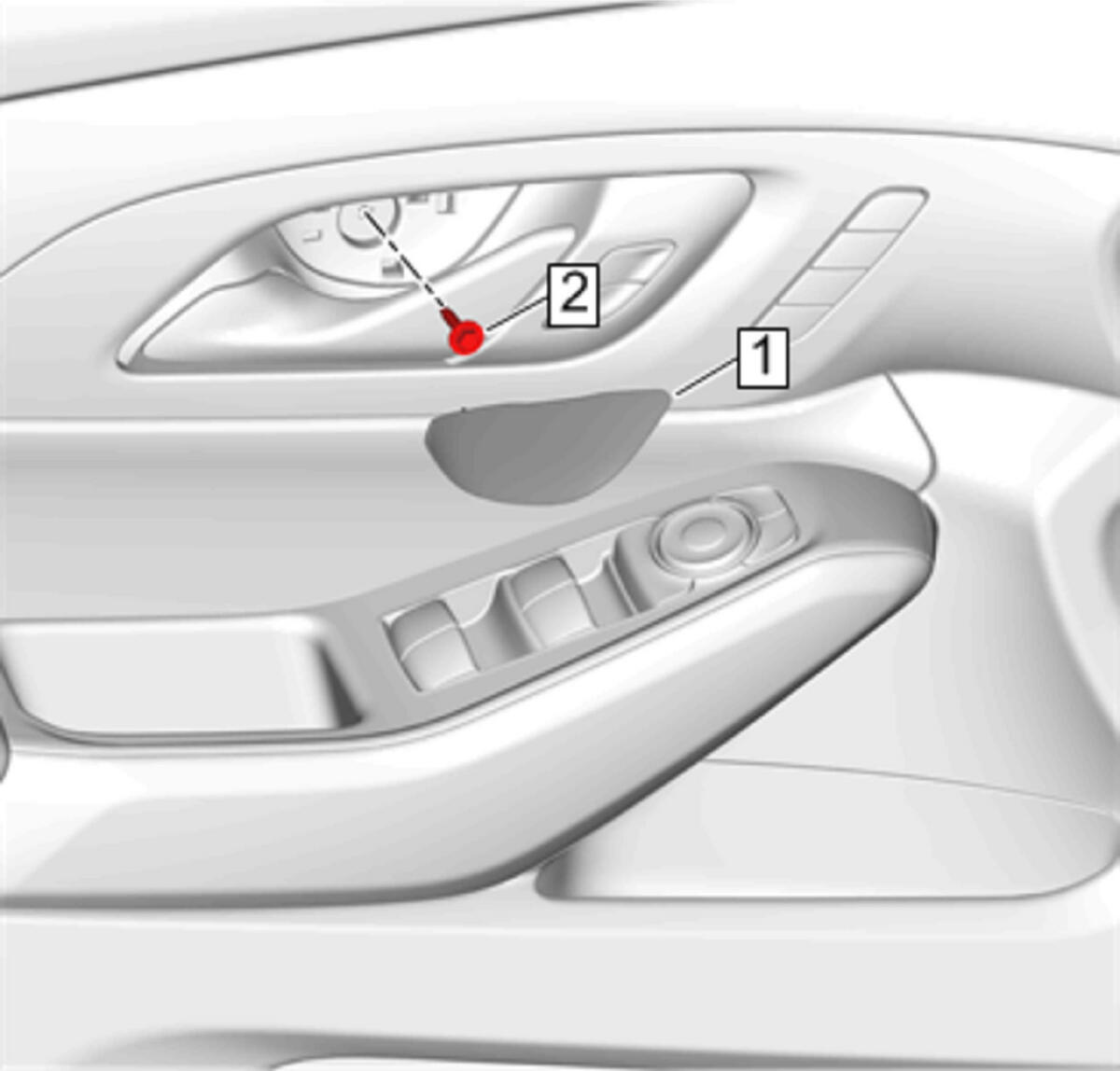

Front Side Door Inside Handle Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
Front Side Door Inside Handle Bolt Finish Cap (1) - Install
