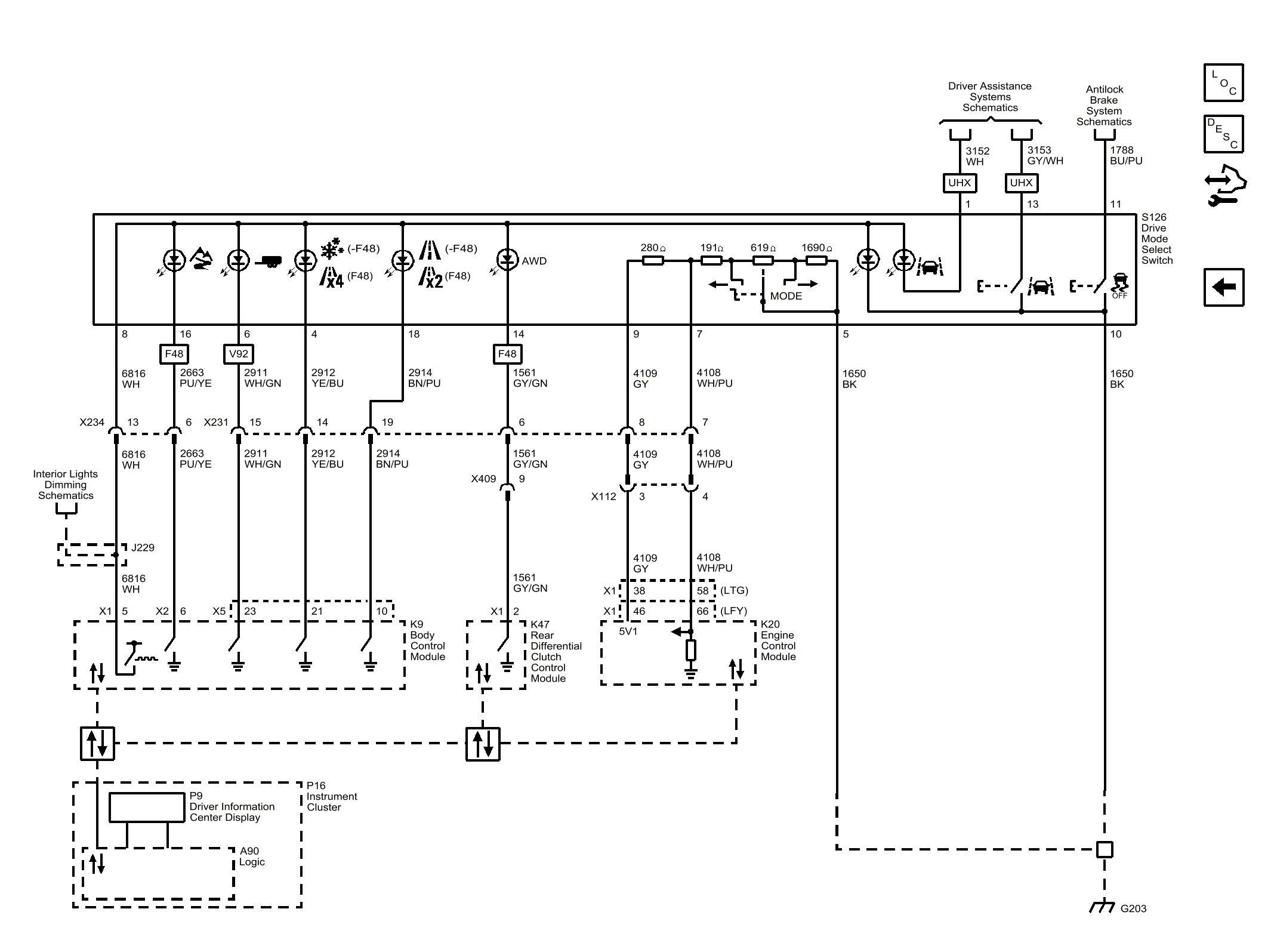

Ride Mode Controls (X88)

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
GM4919608Courtesy of GENERAL MOTORS COMPANY
