Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

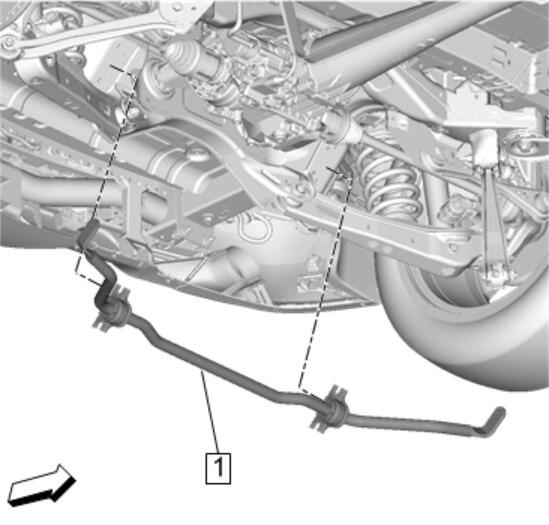

Rear Stabilizer Shaft (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

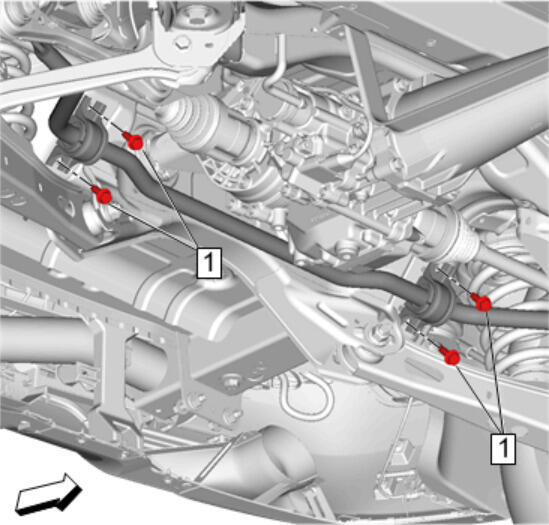

Rear Stabilizer Shaft Clamp Bolt (1) - Install and tighten [4x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

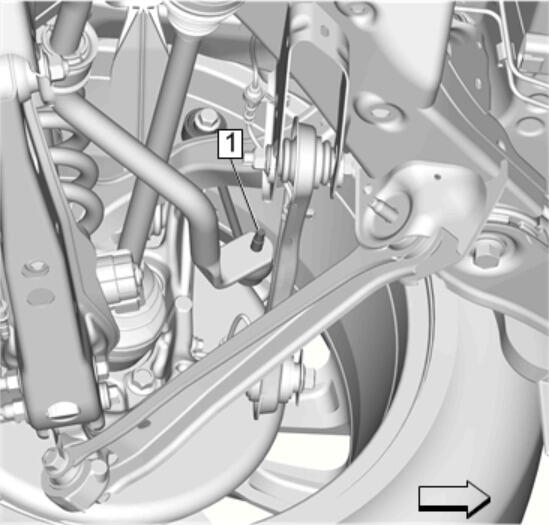

Rear Stabilizer Shaft Link (1)@Left Side - Install - Stabilizer Shaft Link Replacement
Courtesy of GENERAL MOTORS COMPANY

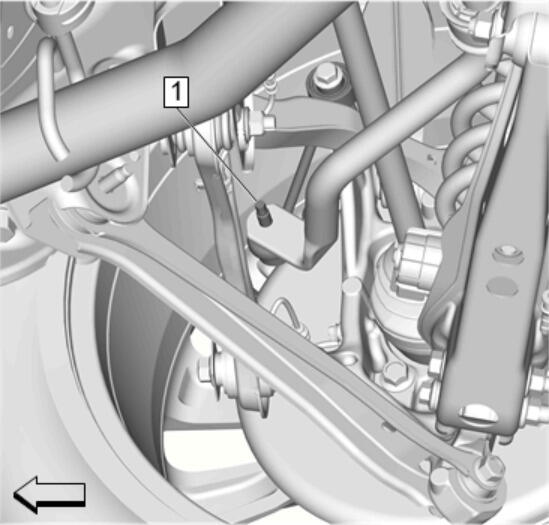

Rear Stabilizer Shaft Link (1)@Right Side - Install - Stabilizer Shaft Link Replacement
Exhaust Muffler - Install - Exhaust Muffler Replacement (LTG) , or Exhaust Muffler Replacement (LFY)
Remove the support and lower the vehicle.
