Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
Rear Shock Absorber (1) - Install

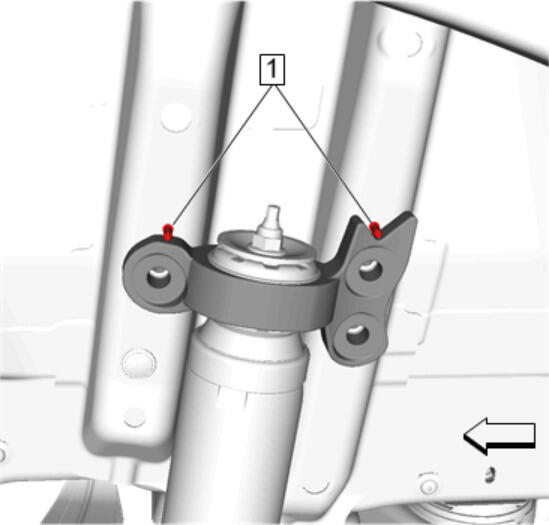

If equipped, inspect the condition of the locator pins (1). If the pins are bent upward or blocking the bolting surface, the pins should be removed and the surface ground flat.
- Ensure that the rear shock absorber mount is seated against the locator pins (1).
- CAUTION:
Refer to Fastener Caution .

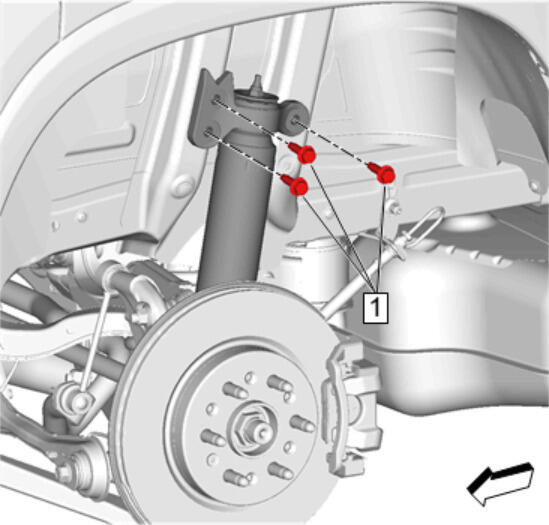

Rear Shock Absorber Bolt (1)@Body - Install and tighten [3x] 58 N.m (43 lb ft)
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
Rear Shock Absorber Bolt (2)@Rear Suspension Lower Control Arm - Install NEW
- Rear Shock Absorber Nut (1) - Install and tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (90 - 105 degrees)
- Remove the support from the rear suspension lower control arm.
- Rear Wheelhouse Liner - Install - Rear Wheelhouse Liner Replacement
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
