Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
Rear Coil Spring Insulator (3) - Install
- Rear Suspension Jounce Bumper (2) - Install
- Rear Coil Spring (1) - Install

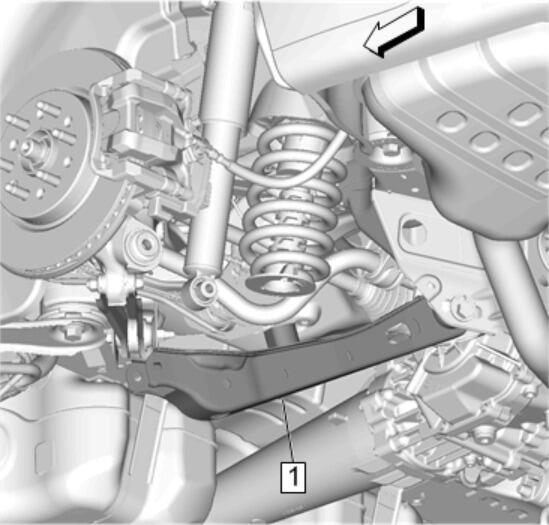

Raise the rear suspension lower control arm (1) back into position.
Install the rear suspension lower control arm outer bolt (2) and rear suspension lower control arm outer nut (1). Lower Control Arm Replacement

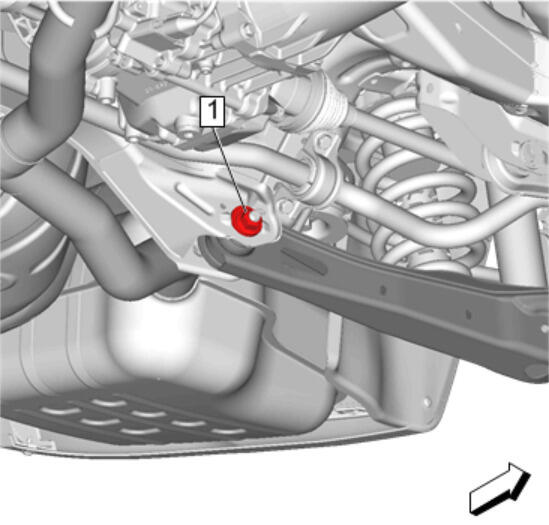

- Rear Suspension Lower Control Arm Inner Nut (1) - Tighten - Lower Control Arm Replacement

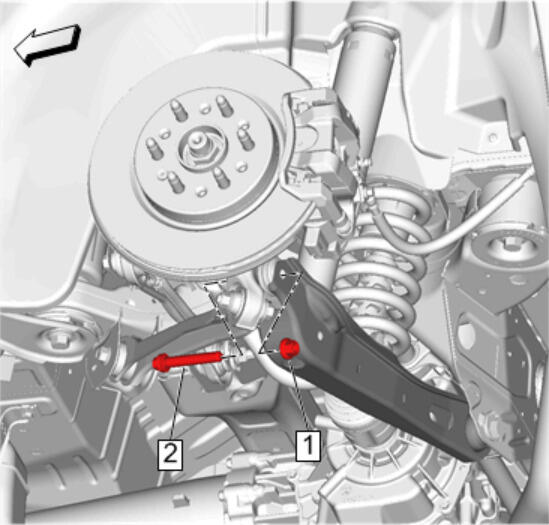

Install the rear shock absorber bolt (2) and rear shock absorber nut (1). Shock Absorber Replacement
- Remove the support from the rear suspension lower control arm.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation .
- Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment
- Remove the support and lower the vehicle.
