Installation Procedure

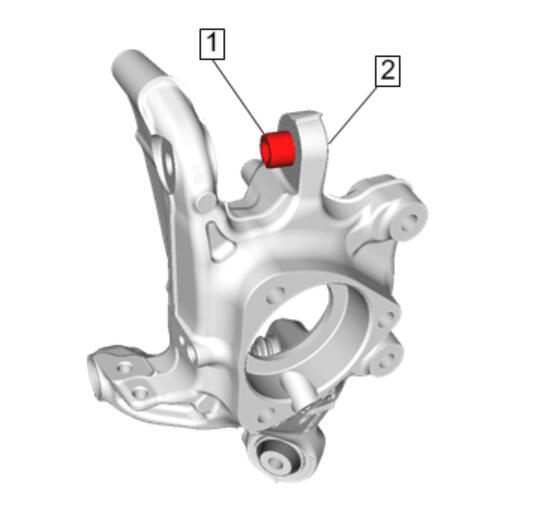

Test fit the rear suspension upper lateral link to the knuckle (2) prior to installation. If the rear suspension upper lateral link does not easily fit, the split sleeve bushing (1) must be repositioned by performing the following steps:
-
Courtesy of GENERAL MOTORS COMPANY

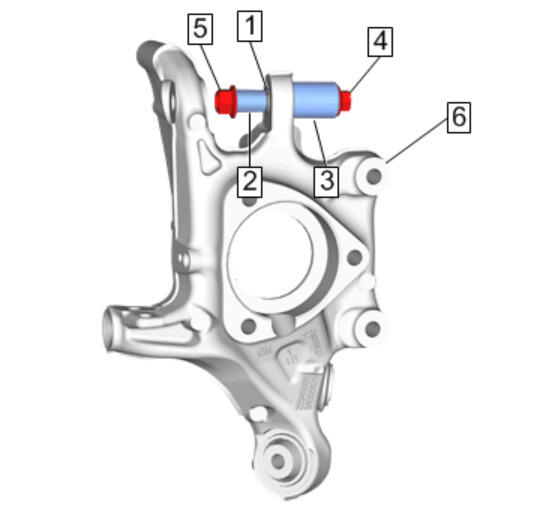

Install a suitable socket (2) that is slightly smaller than the outside diameter of the split sleeve bushing (1).
- Install a suitable socket (3) that is larger than the outside diameter of the split sleeve bushing on the opposite side of the knuckle (6).
- Install a suitable bolt (4) and nut (5).

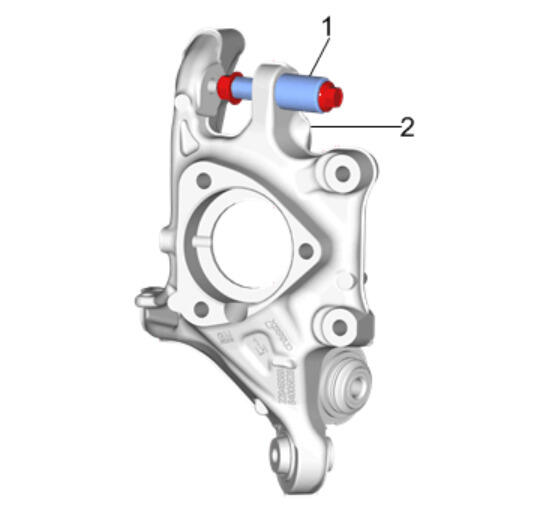

Ensure that the socket (1) is larger than the split sleeve bushing and sits flush against the knuckle (2).

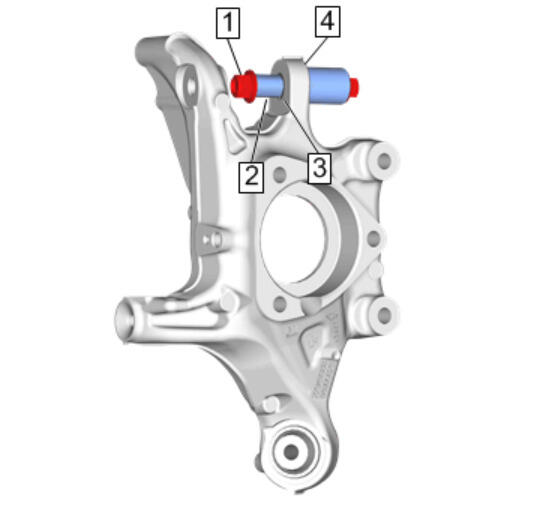

Rotate the nut (1) forcing the socket (2) and the split sleeve bushing (3) flush with the knuckle (4).

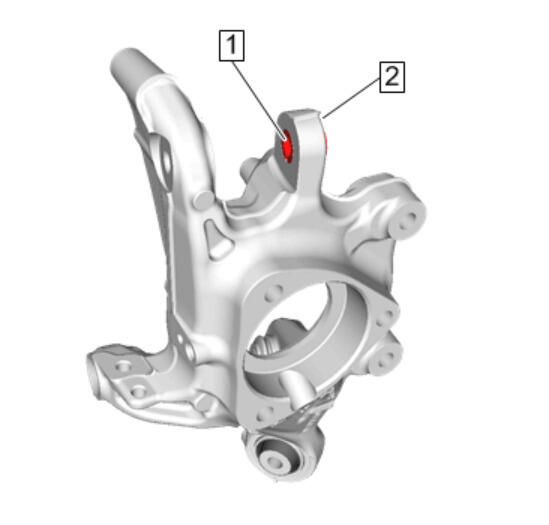

The split sleeve bushing (1) should now be flush with the knuckle (2) as shown.
-

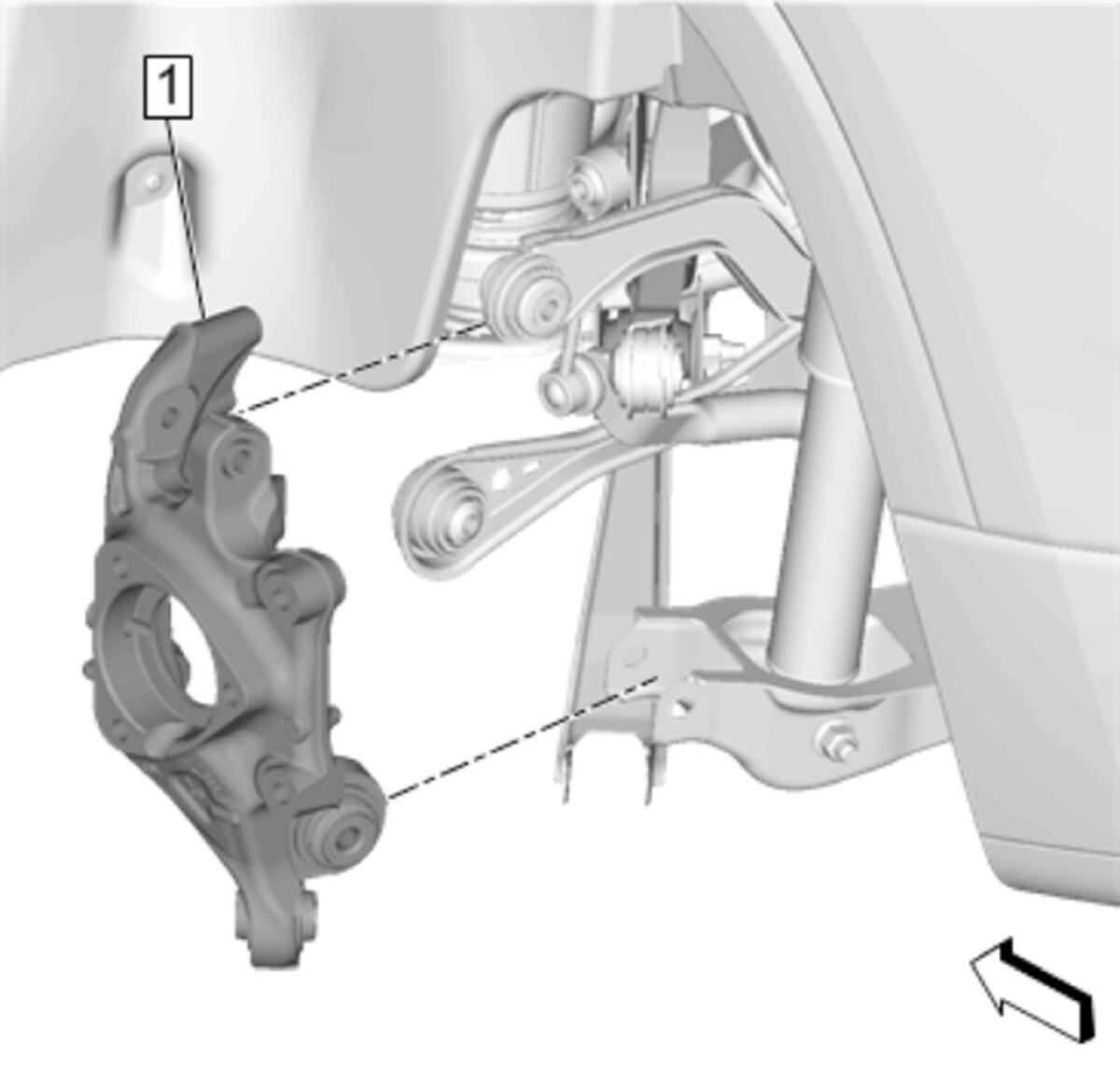

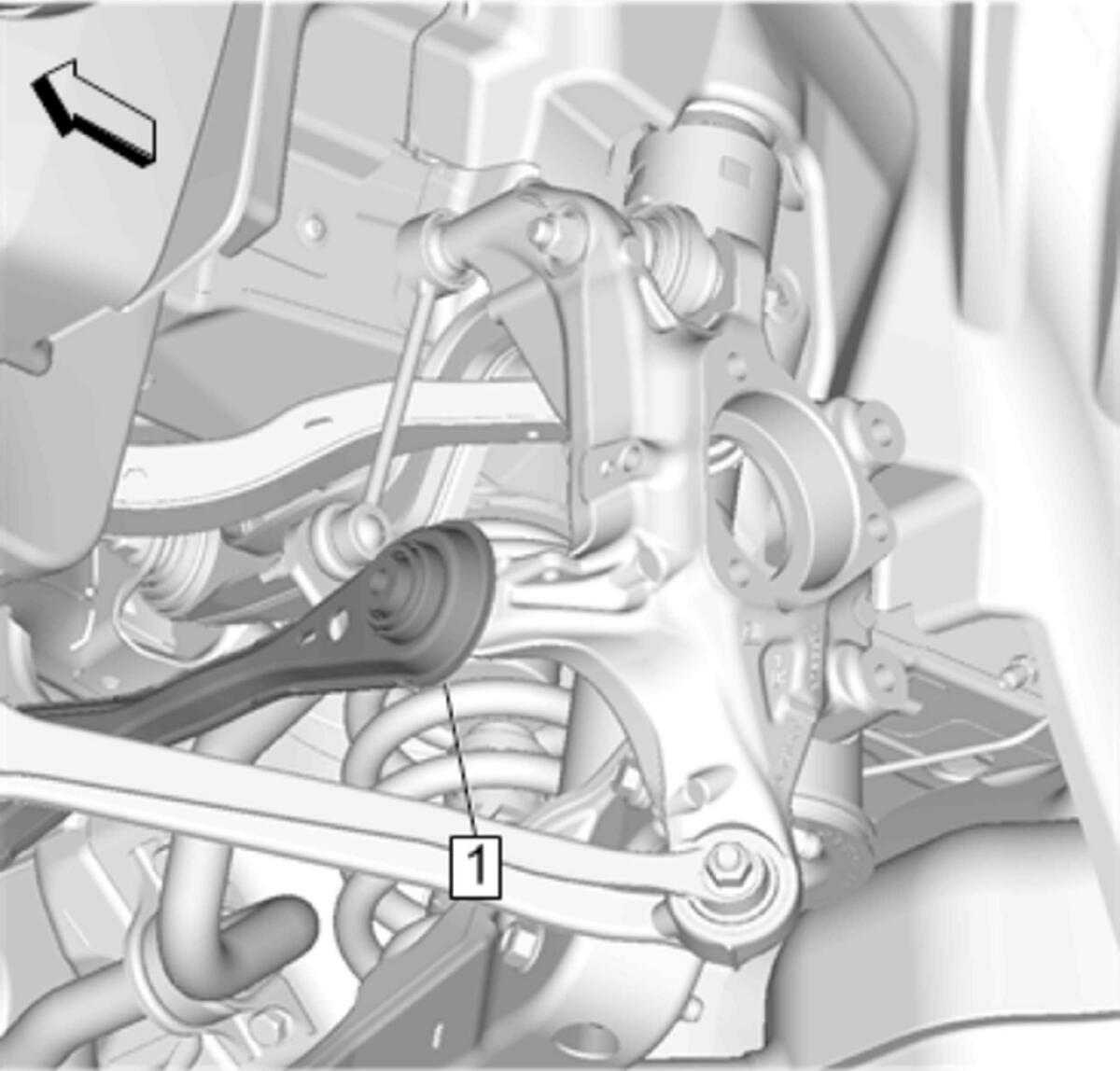

Knuckle (1) - Install

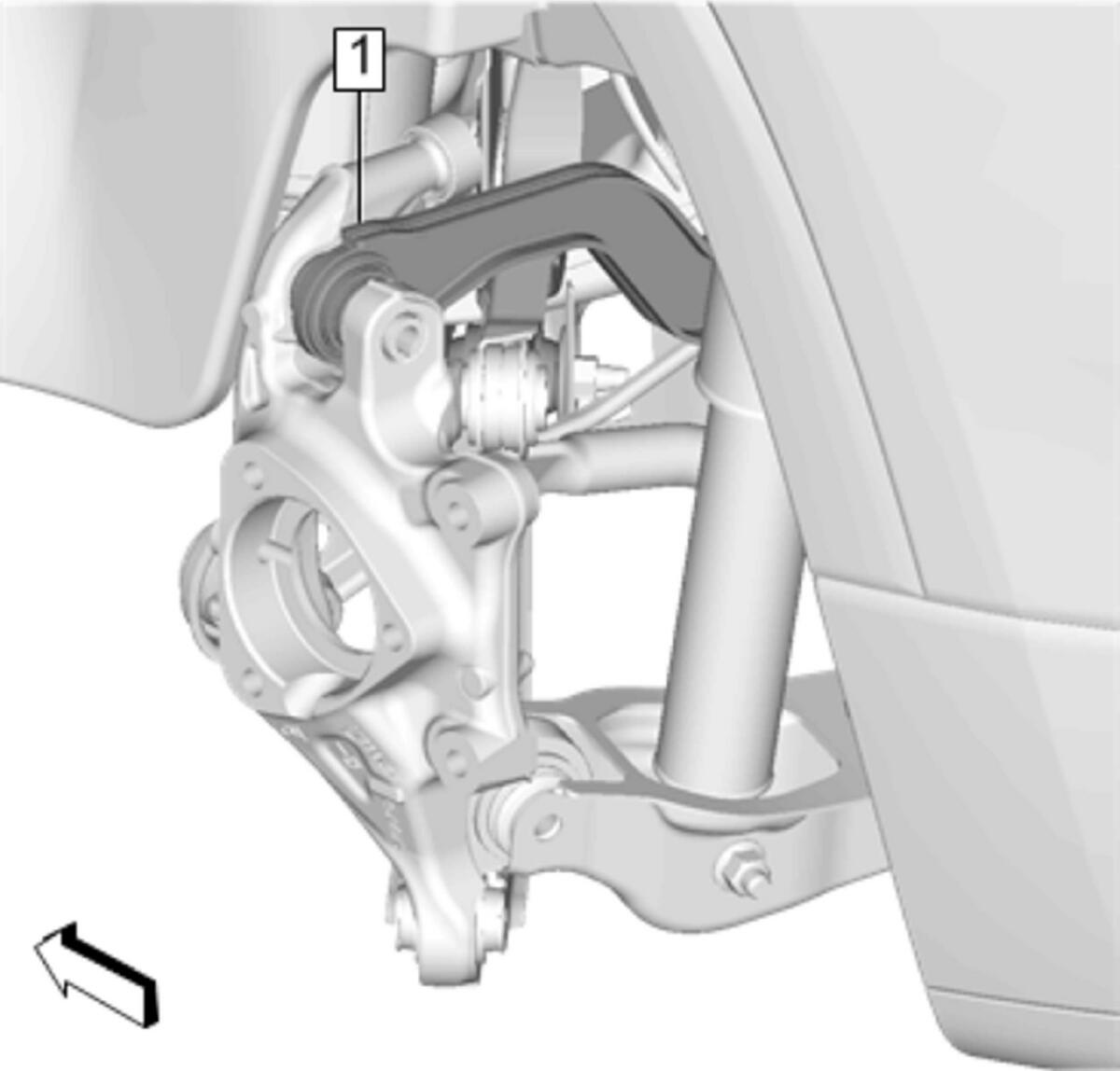

Rear Suspension Upper Lateral Link (1)@Knuckle - Install - Rear Suspension Upper Lateral Link Replacement

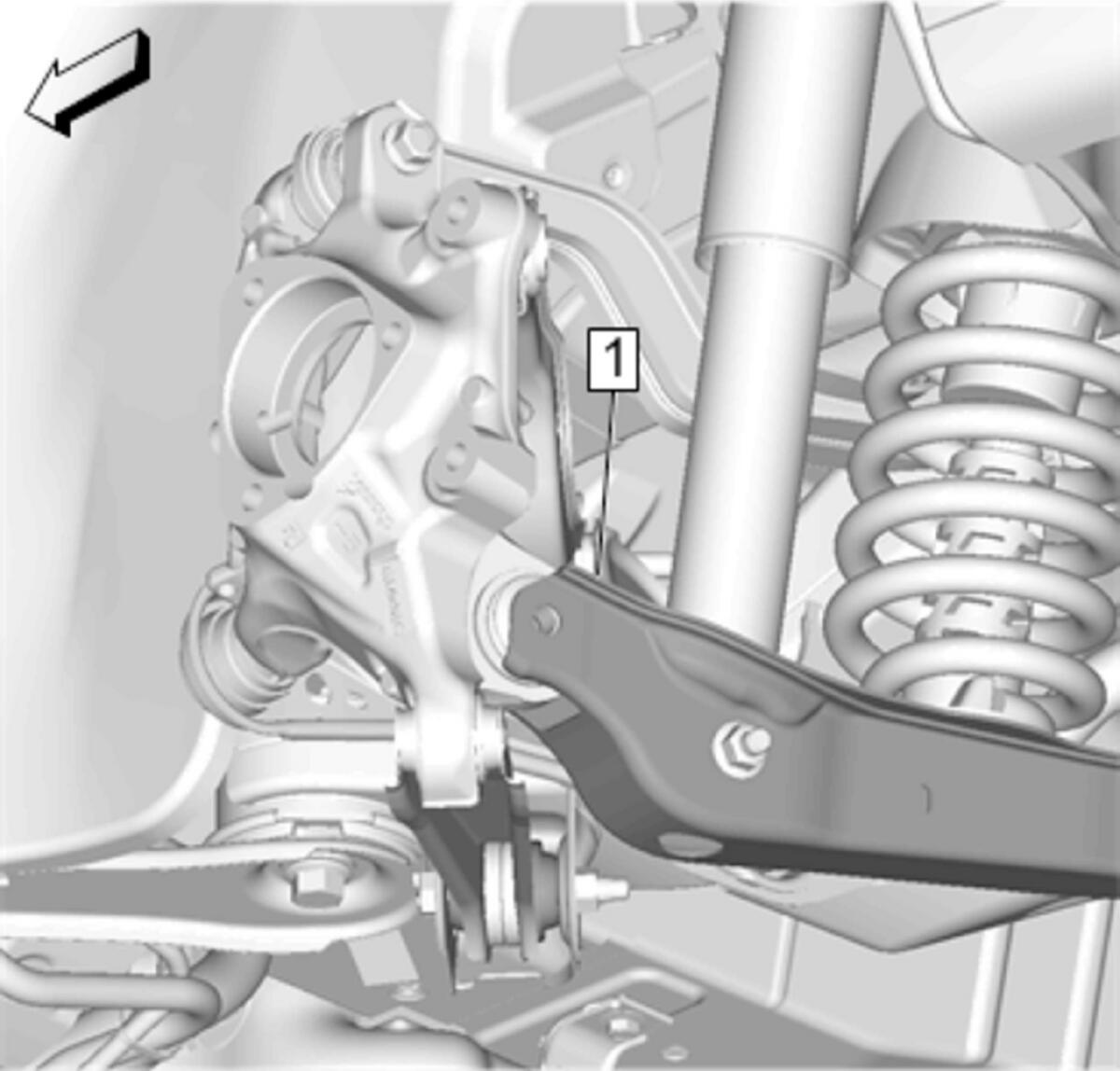

Rear Suspension Lower Control Arm (1)@Knuckle - Install - Lower Control Arm Replacement
Rear Suspension Upper Trailing Link (1)@Knuckle - Install - Rear Suspension Upper Trailing Link Replacement

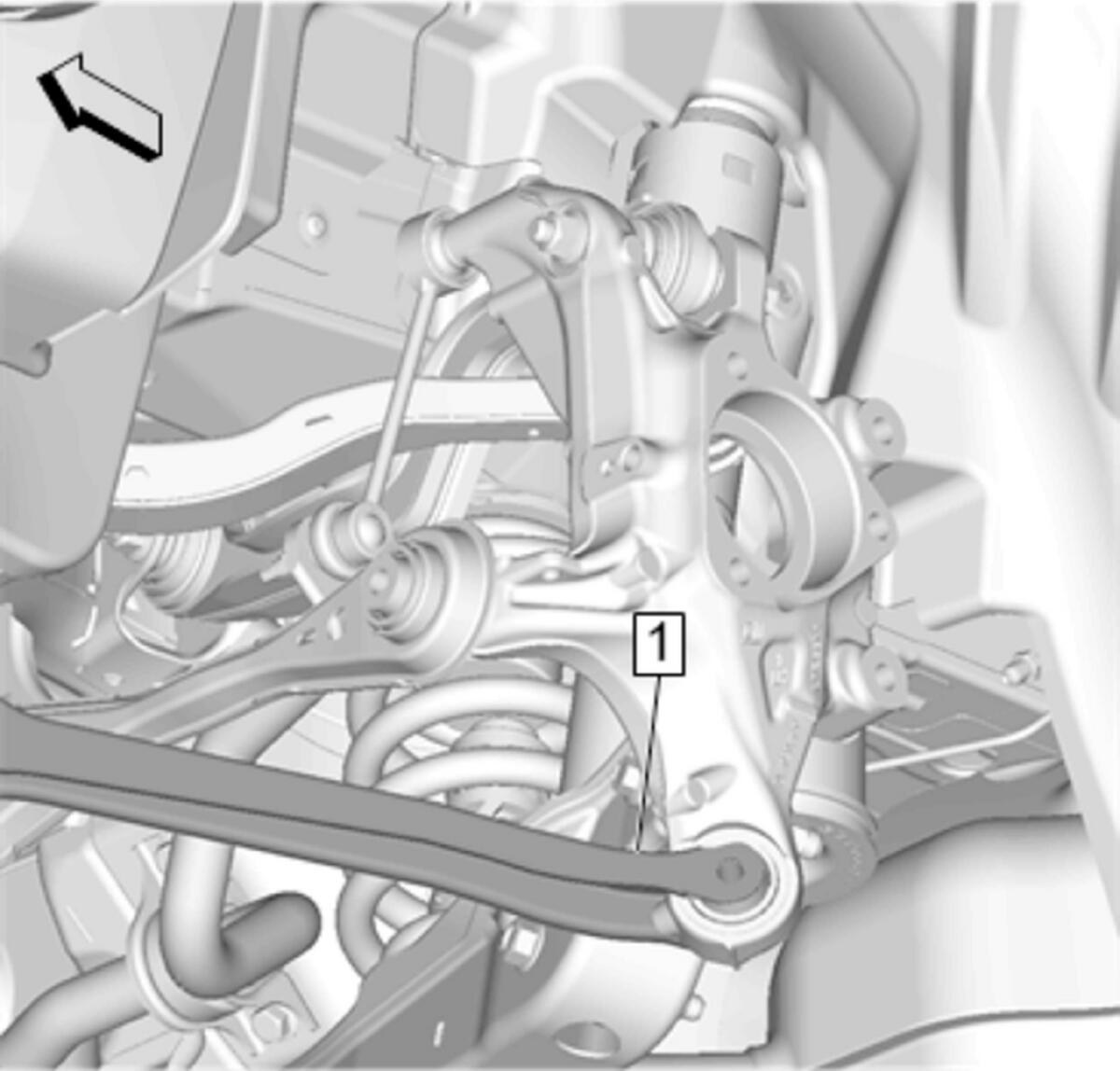

Rear Suspension Lower Trailing Link (1)@Knuckle - Install - Rear Suspension Lower Trailing Link Replacement

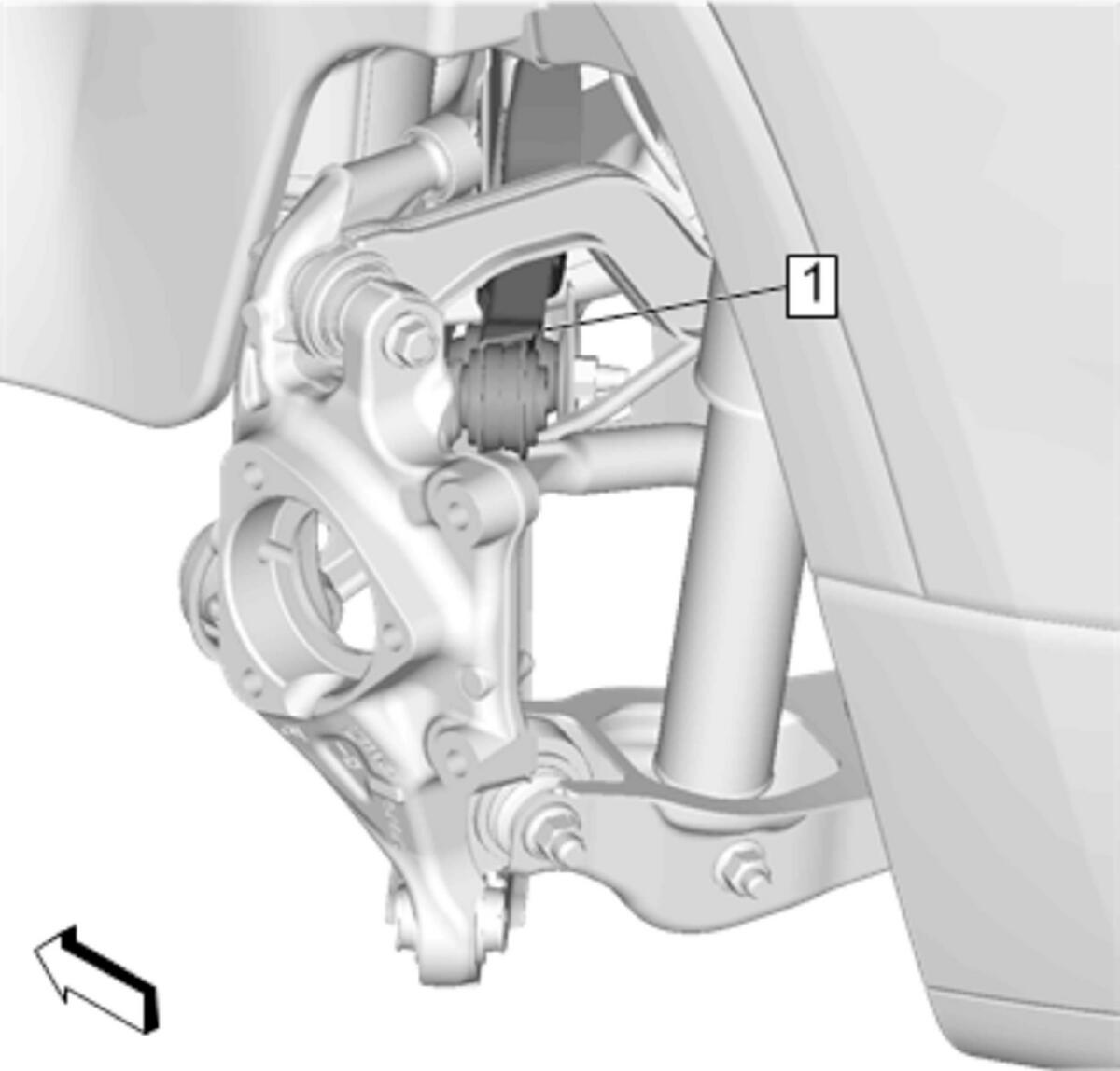

Rear Suspension Adjust Link (1)@Knuckle - Install - Adjust Link Replacement

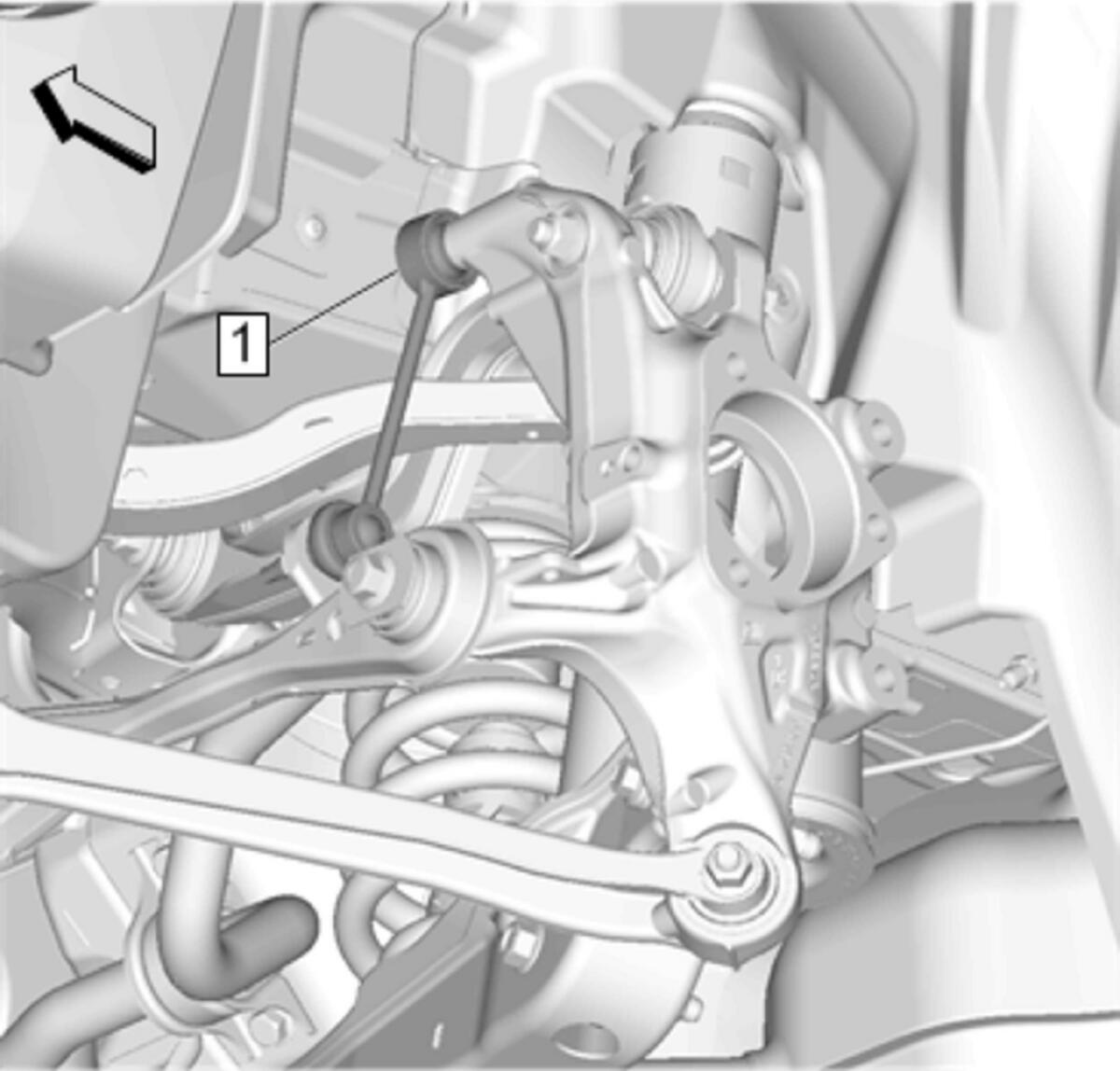

Stabilizer Shaft Link (1)@Knuckle - Install - Stabilizer Shaft Link Replacement

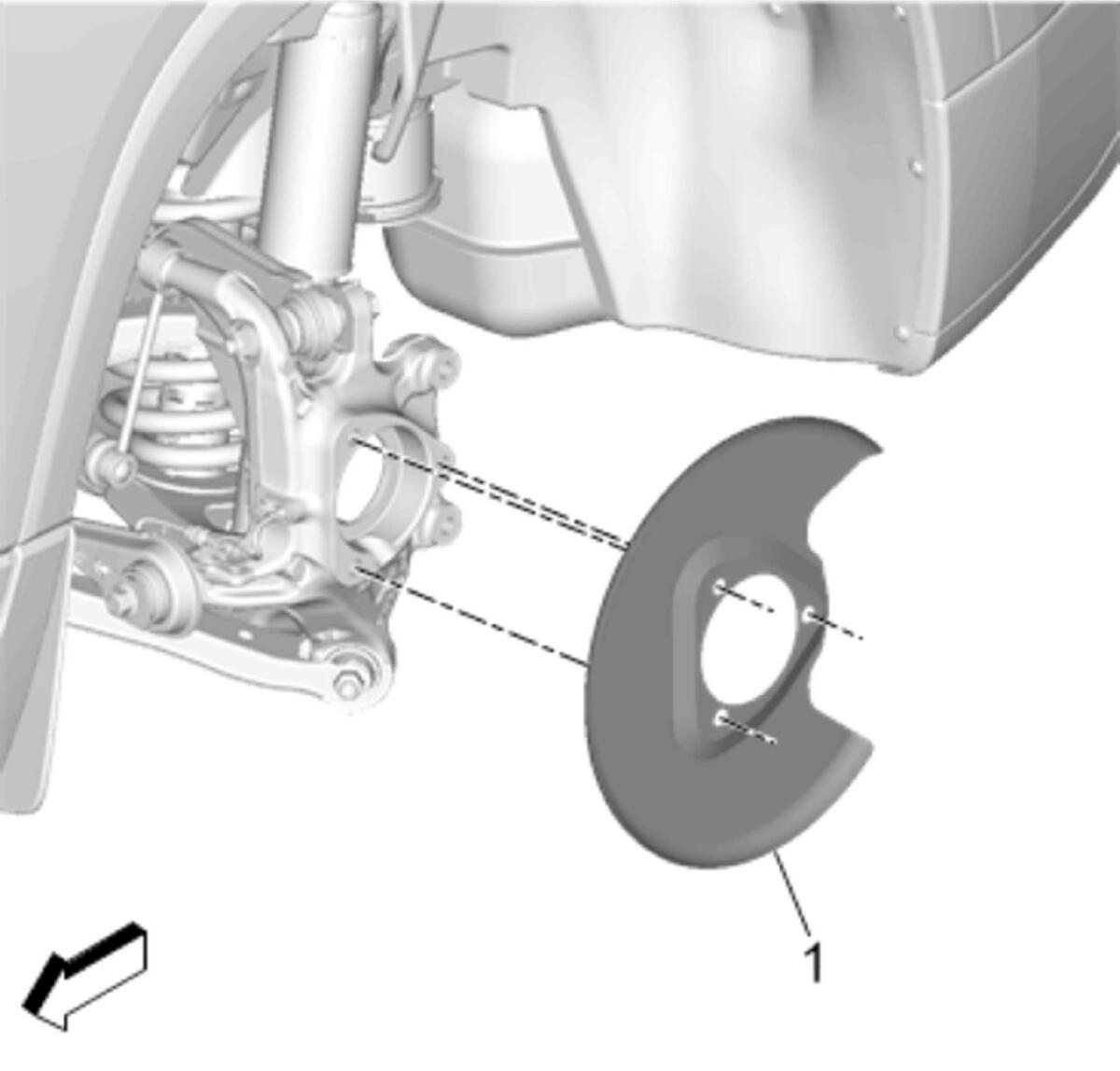

Rear Brake Shield (1) - Install - Rear Brake Shield Replacement

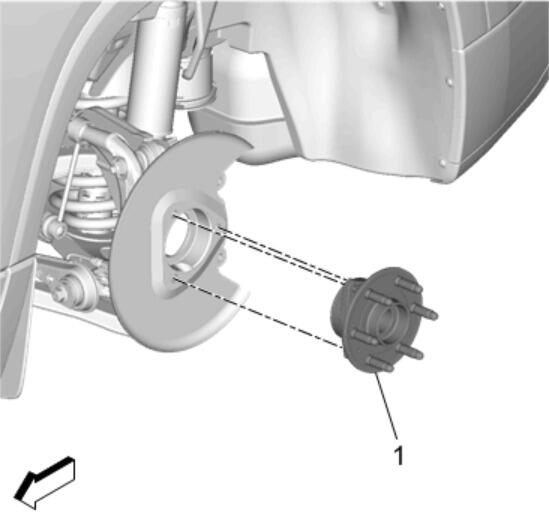

Rear Wheel Bearing and Hub Assembly (1) - Install - Rear Wheel Bearing and Hub Replacement (AWD) , or Rear Wheel Bearing and Hub Replacement (FWD)
- Rear Wheel Speed Sensor@Knuckle - Install - Rear Wheel Speed Sensor Replacement

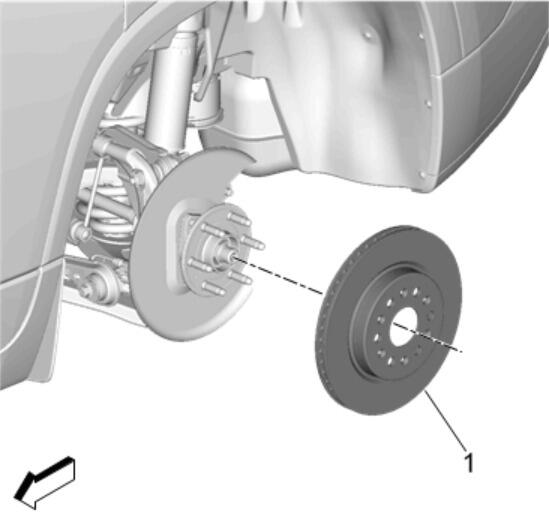

Rear Brake Rotor (1) - Install - Rear Brake Rotor Replacement
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
