Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

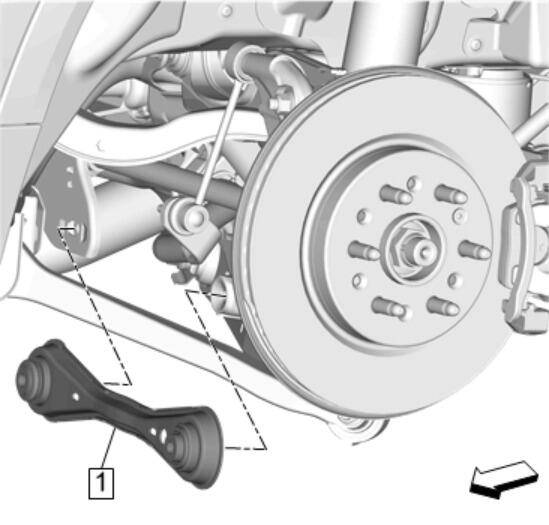

Rear Suspension Adjust Link (1) - Install

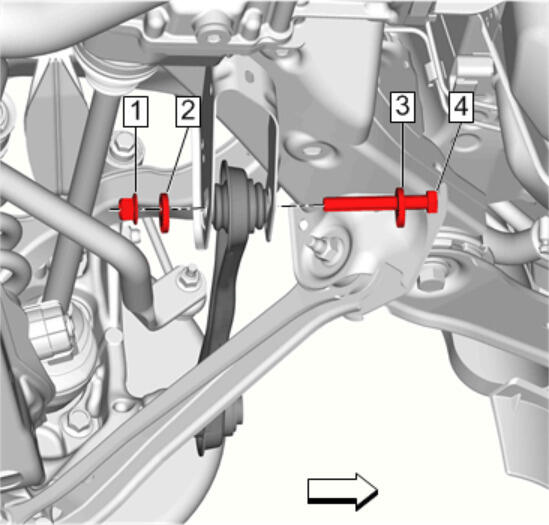

Rear Suspension Link Inner Washer (3) - Install
- Rear Suspension Link Adjust Bolt (4) - Install
- Rear Suspension Link Inner Washer (2) - Install
- Rear Suspension Link Inner Nut (1) - Install and tighten 100 N.m (74 lb ft)

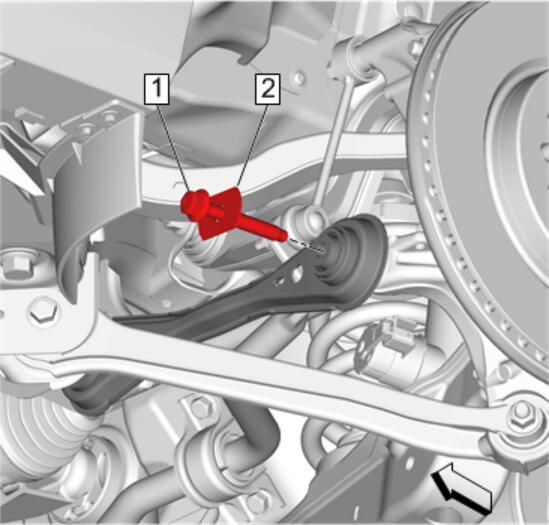

Rear Suspension Adjust Link Washer (2) - Install
- Rear Suspension Adjust Link Bolt (1) - Install NEW and tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (90 - 105 degrees)

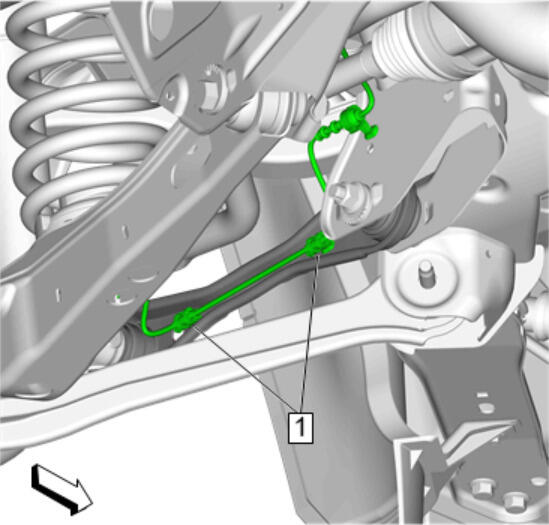

Rear Wheel Speed Sensor Harness (1)@Rear Suspension Adjust Link - Install
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Check the rear wheel alignment. Rear Toe Adjustment
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
