Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Install a NEW thermostat bypass pipe gasket.

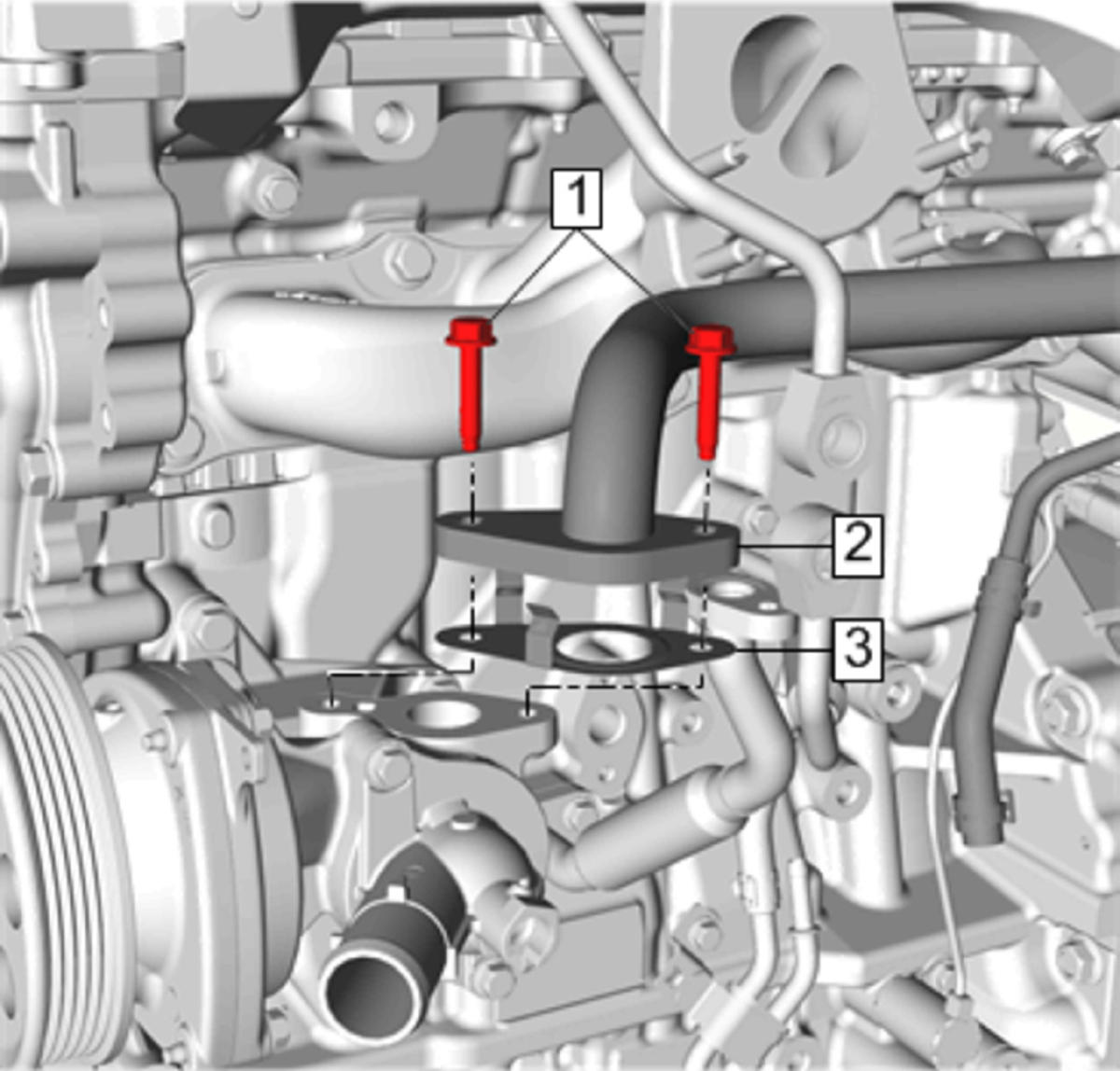

Thermostat Bypass Pipe Gasket (3) - Install
- Thermostat Bypass Pipe (2) - Install
- Thermostat Bypass Pipe Bolt (1) - Install and tighten [2x] 10 N.m (89 lb in)

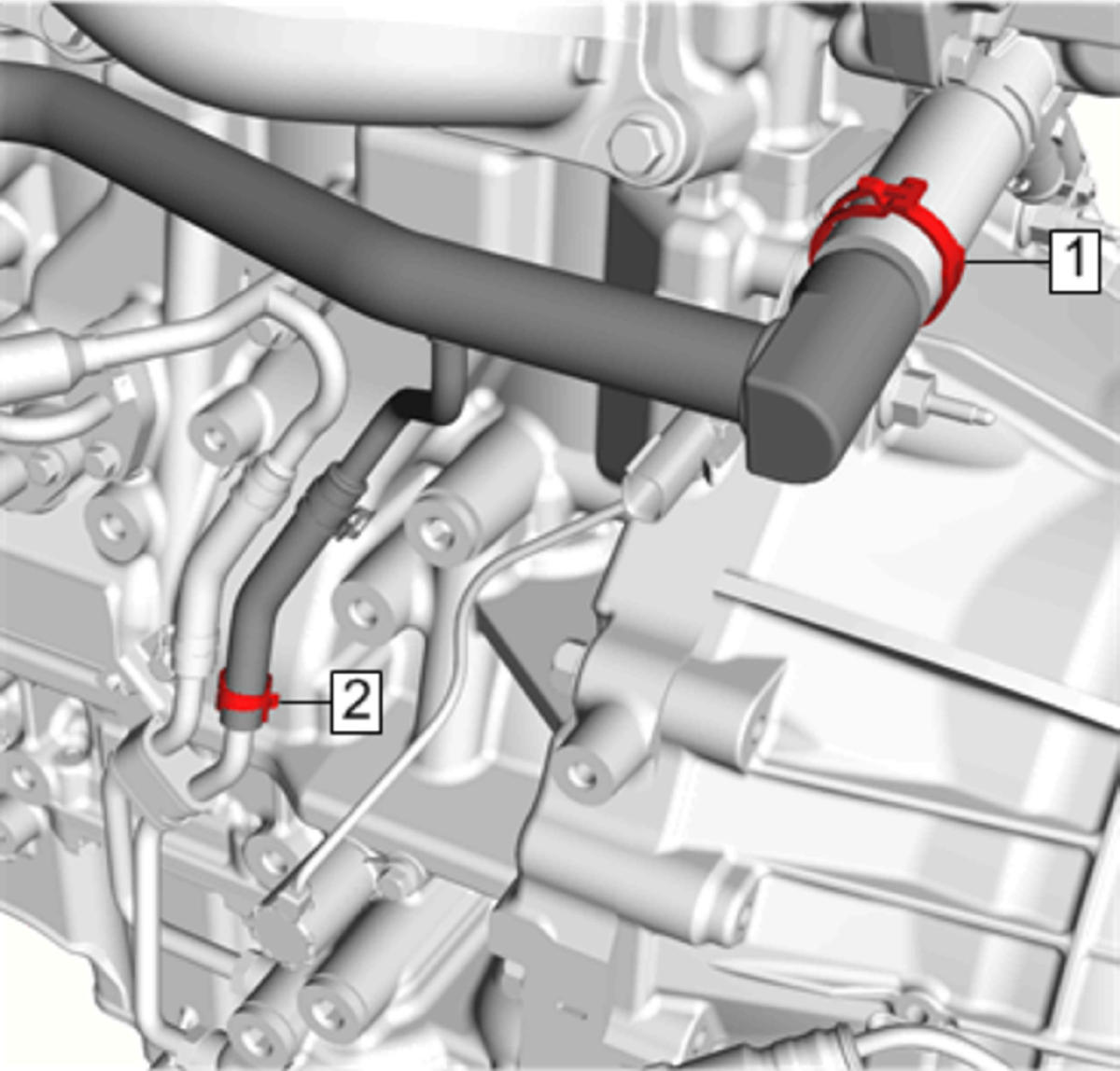

Engine Oil Cooler Inlet Hose Clamp (2) - Engage
- Thermostat Bypass Hose Clamp (1) - Engage
- Exhaust Manifold Brace - Install - Exhaust Manifold Brace Replacement
- Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
- Start the engine and check for leaks.
CAUTION:
Refer to Fastener Caution .
