Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
- Front Bumper Fascia - Remove - Front Bumper Fascia Replacement (LTG) , or Front Bumper Fascia Replacement (LFY)
If equipped Front Bumper Shutter- Upper (2) - Remove - Front Bumper Shutter Replacement (Upper) , or Front Bumper Shutter Replacement (Lower)
Front Bumper Fascia Center Support - Upper (3) - Remove - Front Bumper Fascia Center Support Replacement
- Wiring Harness@Radiator Air Upper Baffle - Remove

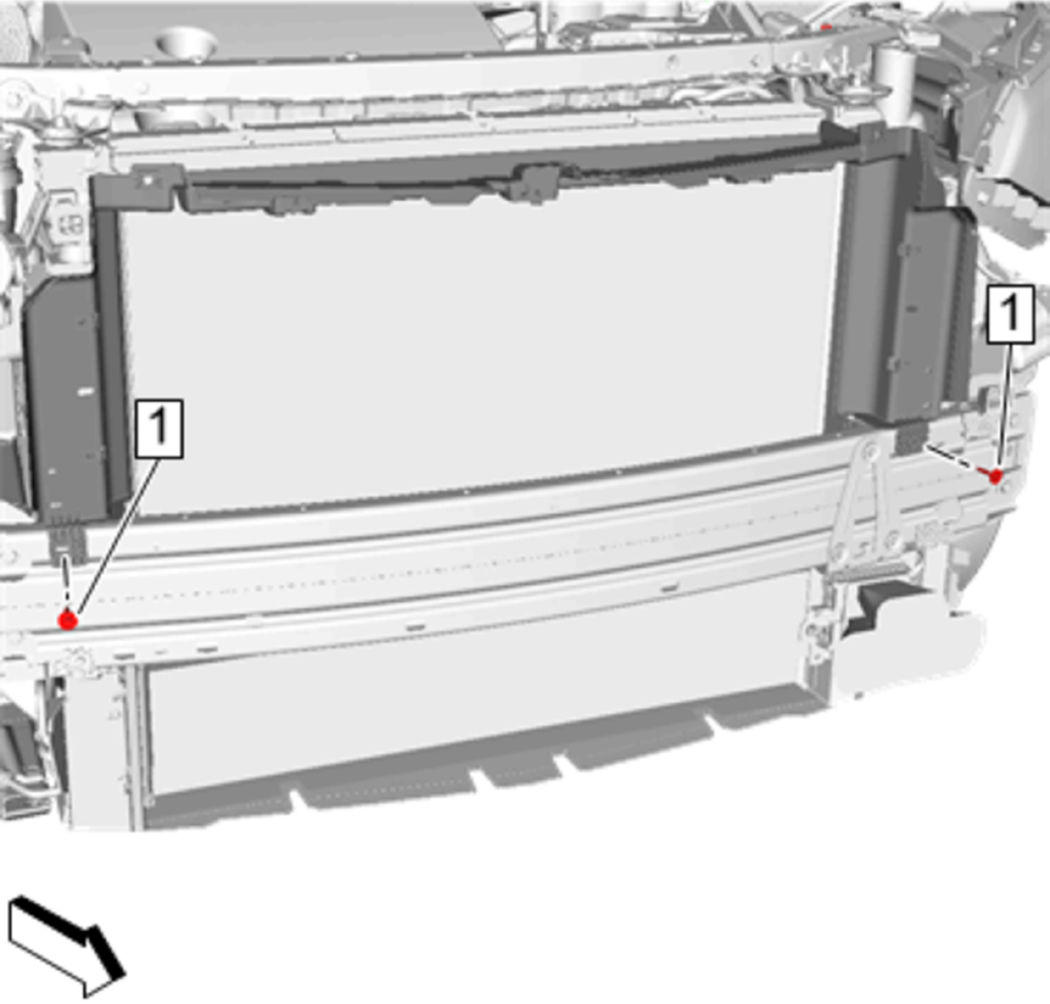

Radiator Air Upper Baffle Bolt (1) - Remove [2x]
Radiator Air Upper Baffle (1) - Remove
