Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake Air Splash Shield - Remove - Intake Air Splash Shield Replacement
  2. Front Bumper Fascia - Remove - Front Bumper Fascia Replacement (LTG)
  3. Drain the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
  4. Front Bumper Fascia Center Support - Remove - Front Bumper Fascia Center Support Replacement
  5. GM4738555Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement

  6. GM4738320Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Baffle (1) - Remove - Radiator Air Baffle Replacement

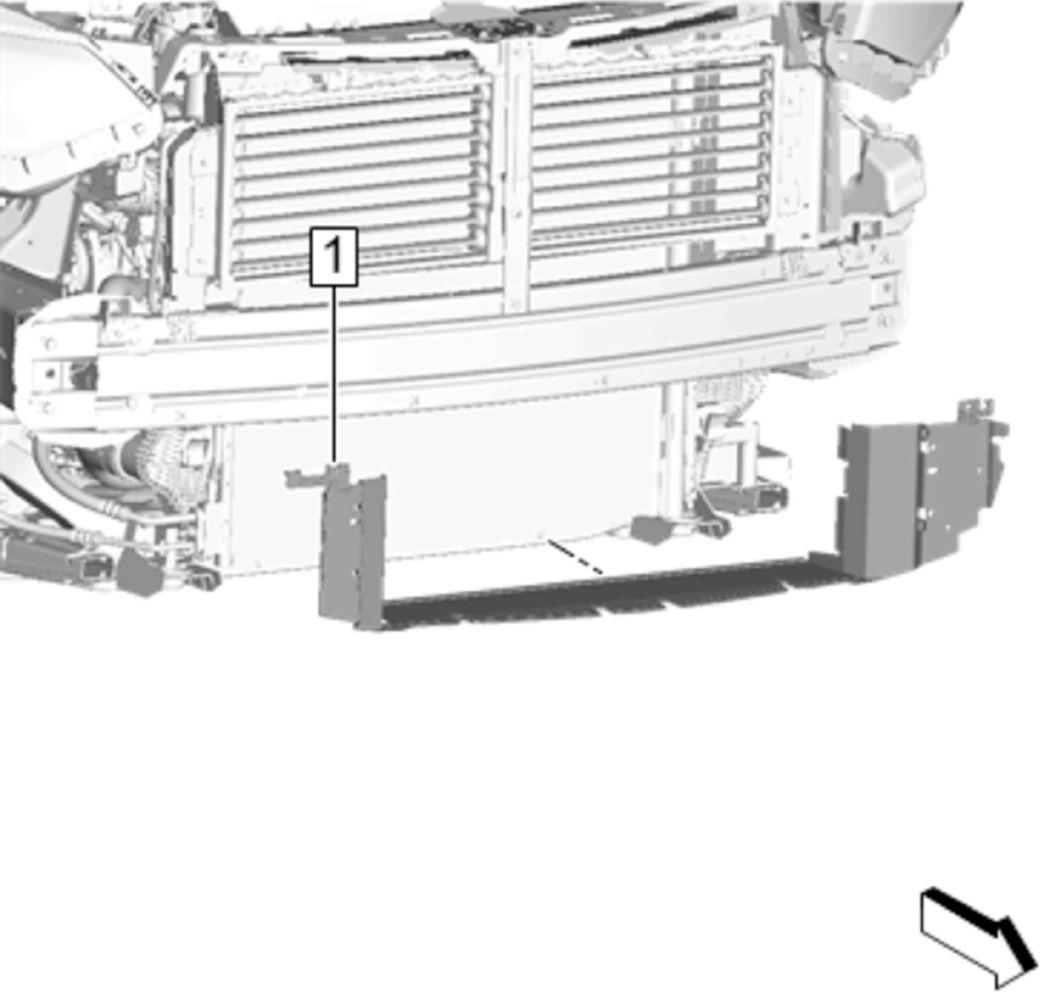

  7. GM4829189Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (1) - Remove - Radiator Air Lower Baffle Replacement (LTG)

  8. GM4840739Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) - Remove - Air Conditioning Condenser Replacement (LTG)

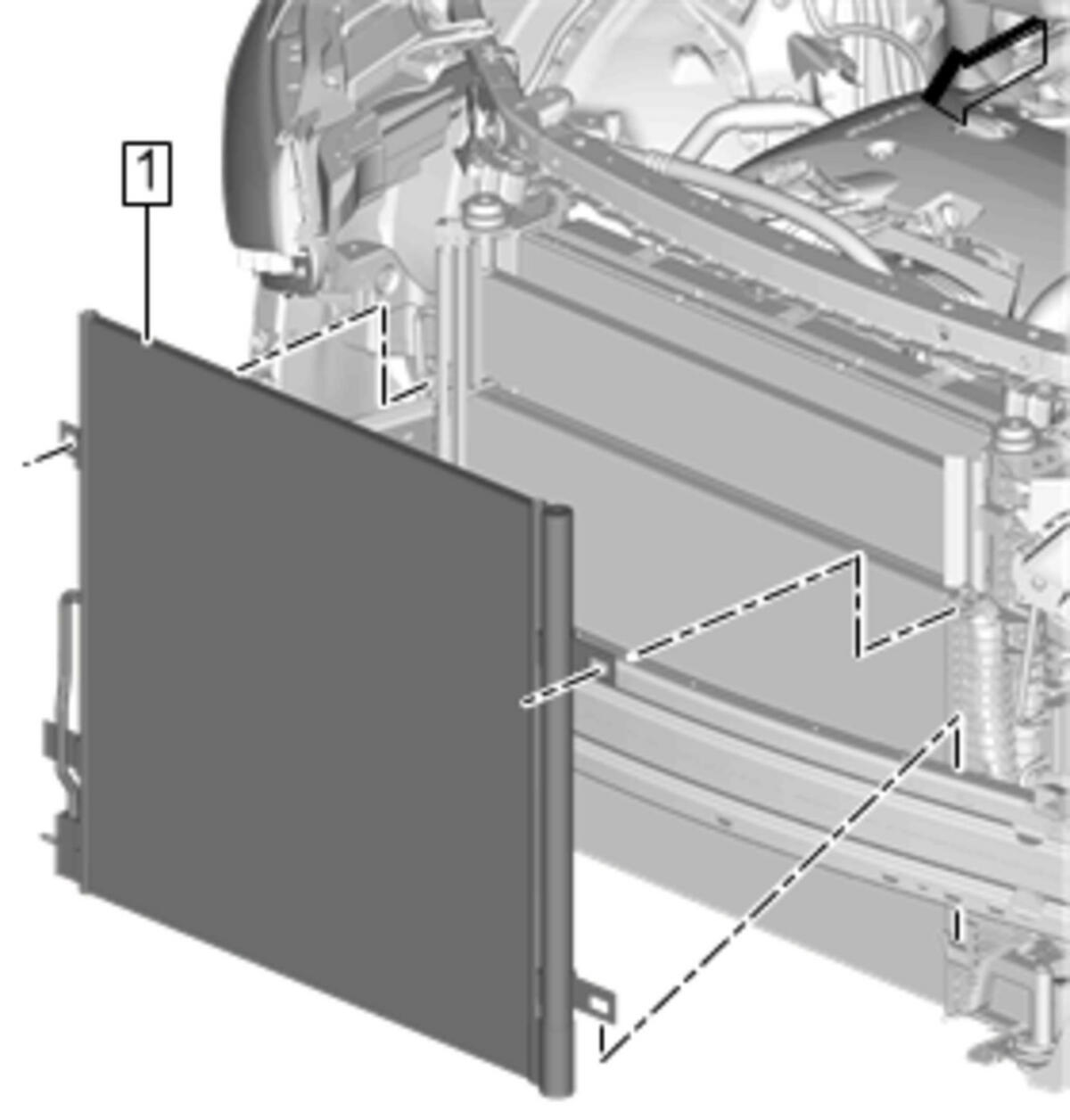

  9. GM4840824Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler (1) - Remove - Transmission Fluid Auxiliary Cooler Replacement (LTG)

  10. GM4839631Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler (2) - Remove - Charge Air Cooler Replacement

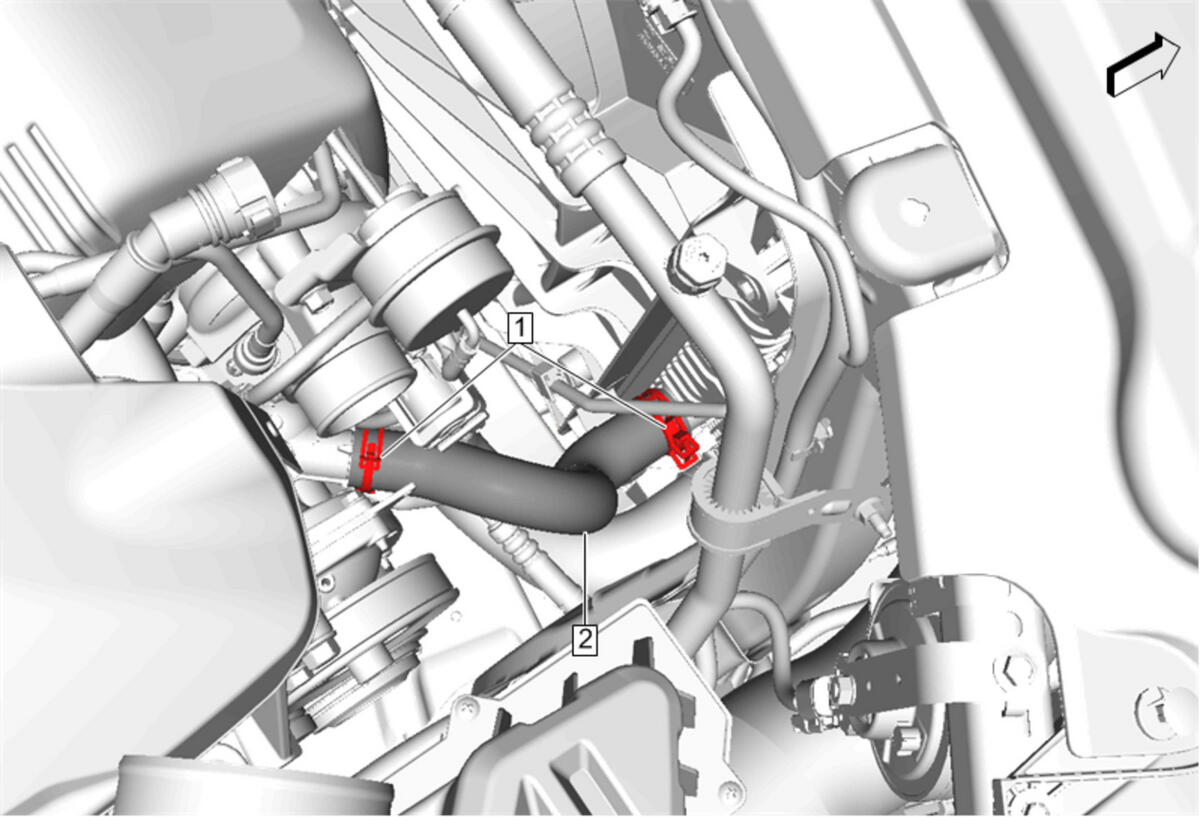

  11. GM4828627Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2)@Radiator - Remove - Radiator Outlet Hose Replacement (LTG)

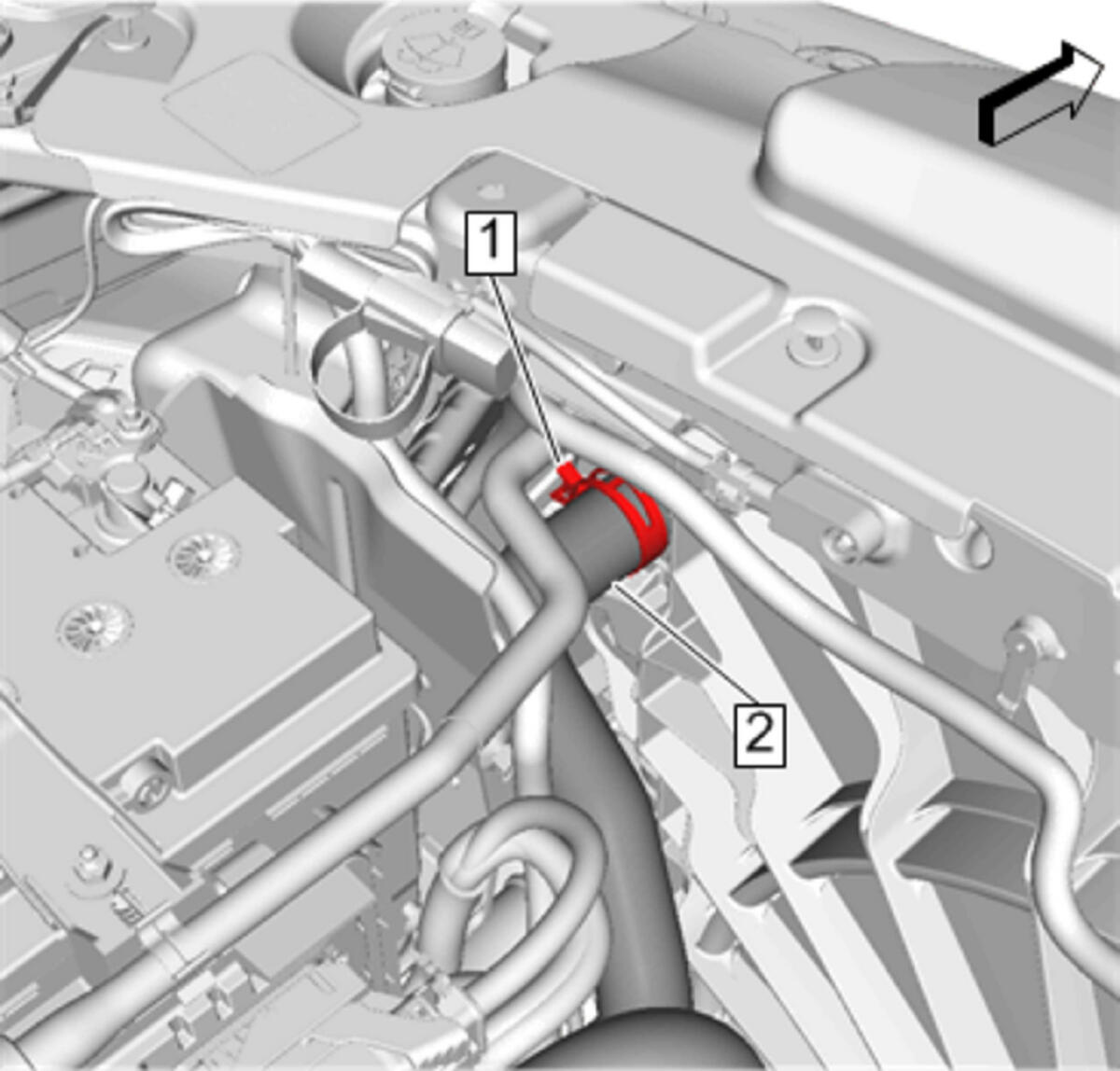

  12. GM4828593Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2)@Radiator - Remove - Radiator Inlet Hose Replacement (LTG)

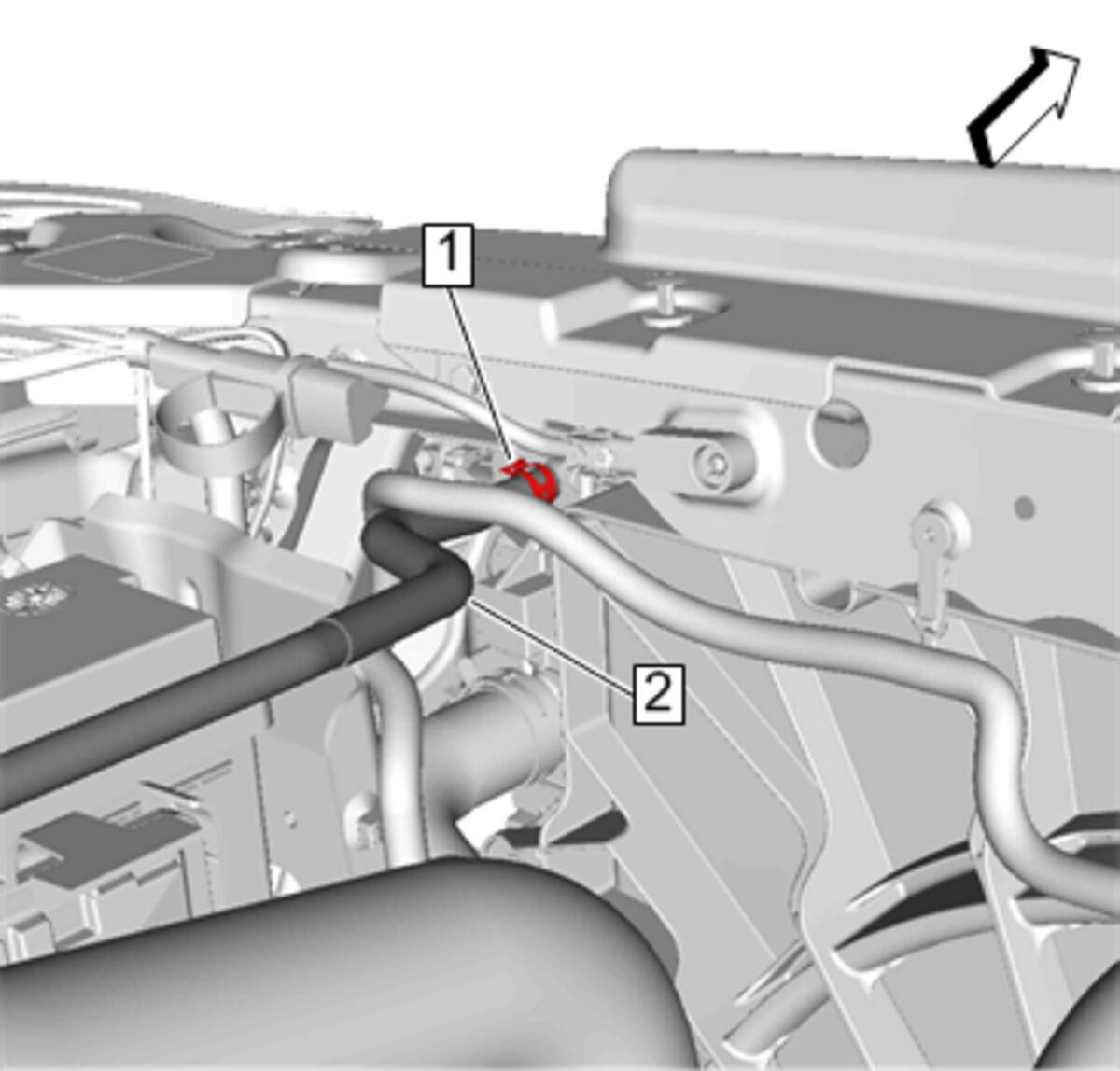

  13. GM4828432Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Overflow Hose (2)@Radiator - Remove - Radiator Surge Tank Overflow Hose Replacement (LTG Radiator Surge Tank to Engine Coolant Air Bleed Pipe to Radiator)

  14. GM4746783Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1)@Engine Coolant Fan - Disconnect

  15. Wiring Harness@Engine Coolant Fan - Disconnect
  16. Transmission Fluid Cooler Thermal Bypass Valve - Remove - Transmission Fluid Cooler Thermal Bypass Valve Replacement (LFY)
  17. GM4737653Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LTG)

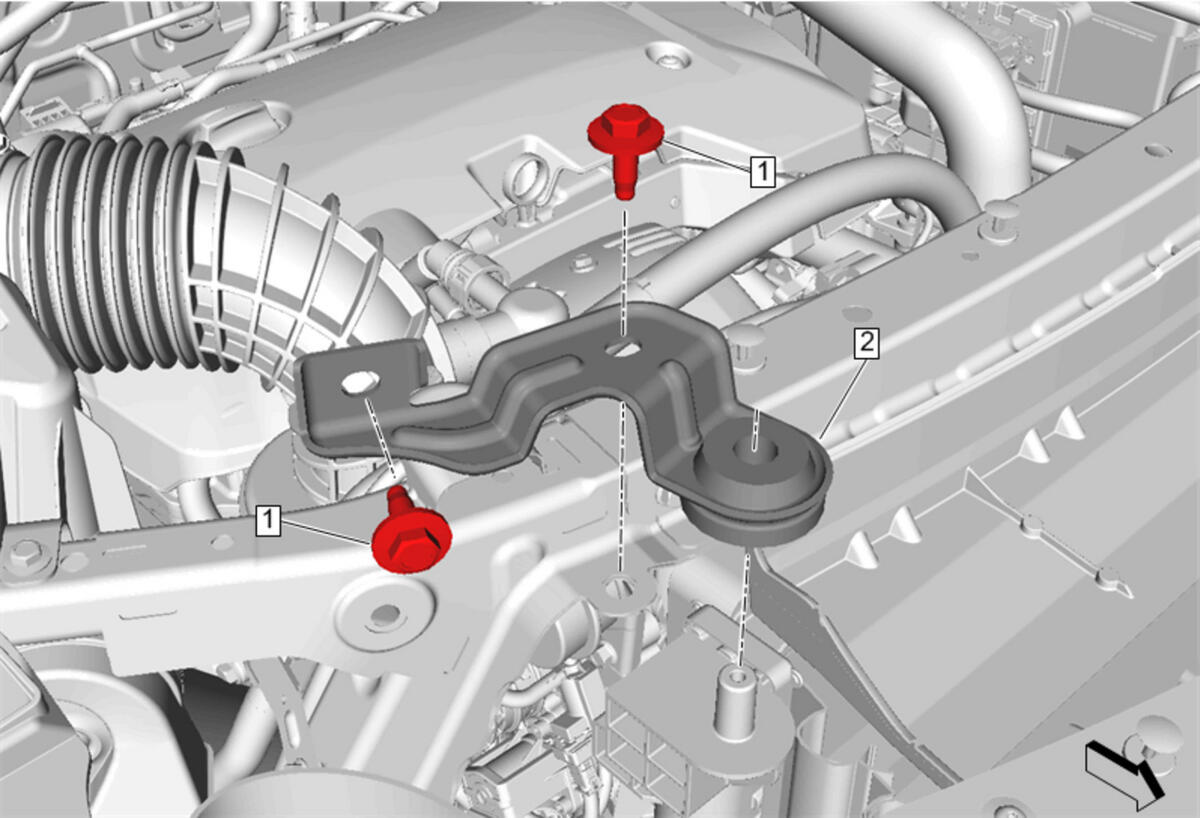

  18. GM4828857Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket-Right Side (2) - Remove - Radiator Upper Bracket Replacement - Right Side (LTG)

  19. GM4747184Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan Module Radiator (1) - Remove

  20. Transfer components as necessary.
