Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

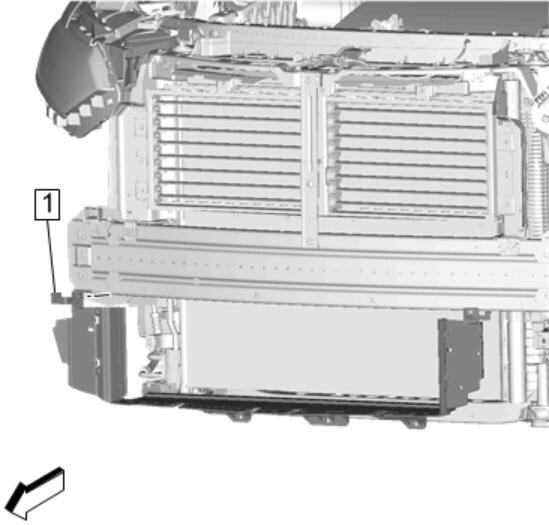

Engine Coolant Fan Module Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

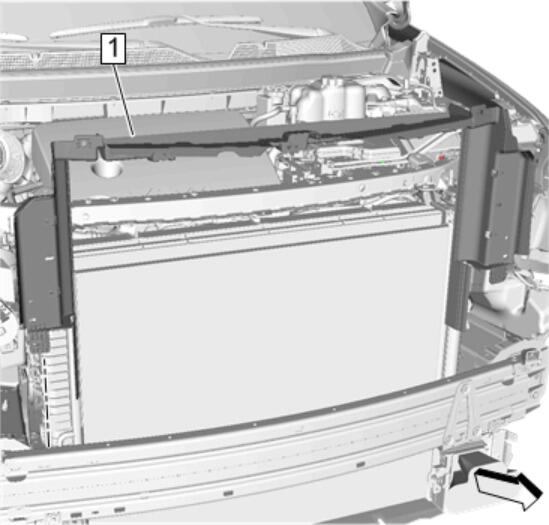

Radiator Upper Bracket-Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side (LFY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket-Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side (LFY)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Clip (2)@Engine Coolant Fan - Install
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet Pipe (1)@Radiator - Install - Transmission Fluid Cooler Inlet Pipe Replacement (LFY without V08)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Outlet Pipe (1)@Radiator - Install - Transmission Fluid Cooler Outlet Pipe Replacement (LFY without V08)
Wiring Harness@Engine Coolant Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1)@Engine Coolant Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Overflow Hose (2)@Radiator - Install - Radiator Surge Tank Overflow Hose Replacement (LFY Radiator Surge Tank to Engine Coolant Air Bleed Pipe) , or Radiator Surge Tank Overflow Hose Replacement (LFY Engine Coolant Air Bleed Pipe to Radiator)
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2)@Radiator - Install - Radiator Inlet Hose Replacement (LFY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2)@Radiator - Install - Radiator Outlet Hose Replacement (LFY)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser (1) - Install - Air Conditioning Condenser Replacement (LFY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Lower Baffle (1) - Install - Radiator Air Lower Baffle Replacement (LFY without V08)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Baffle (1) - Install - Radiator Air Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (1) - Install - Radiator Air Upper Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Support (3) - Install - Front Bumper Fascia Center Support Replacement
Front Bumper Fascia - Install - Front Bumper Fascia Replacement (LFY)
Intake Air Splash Shield - Install - Intake Air Splash Shield Replacement
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
Start the engine and check for coolant leaks.
