Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

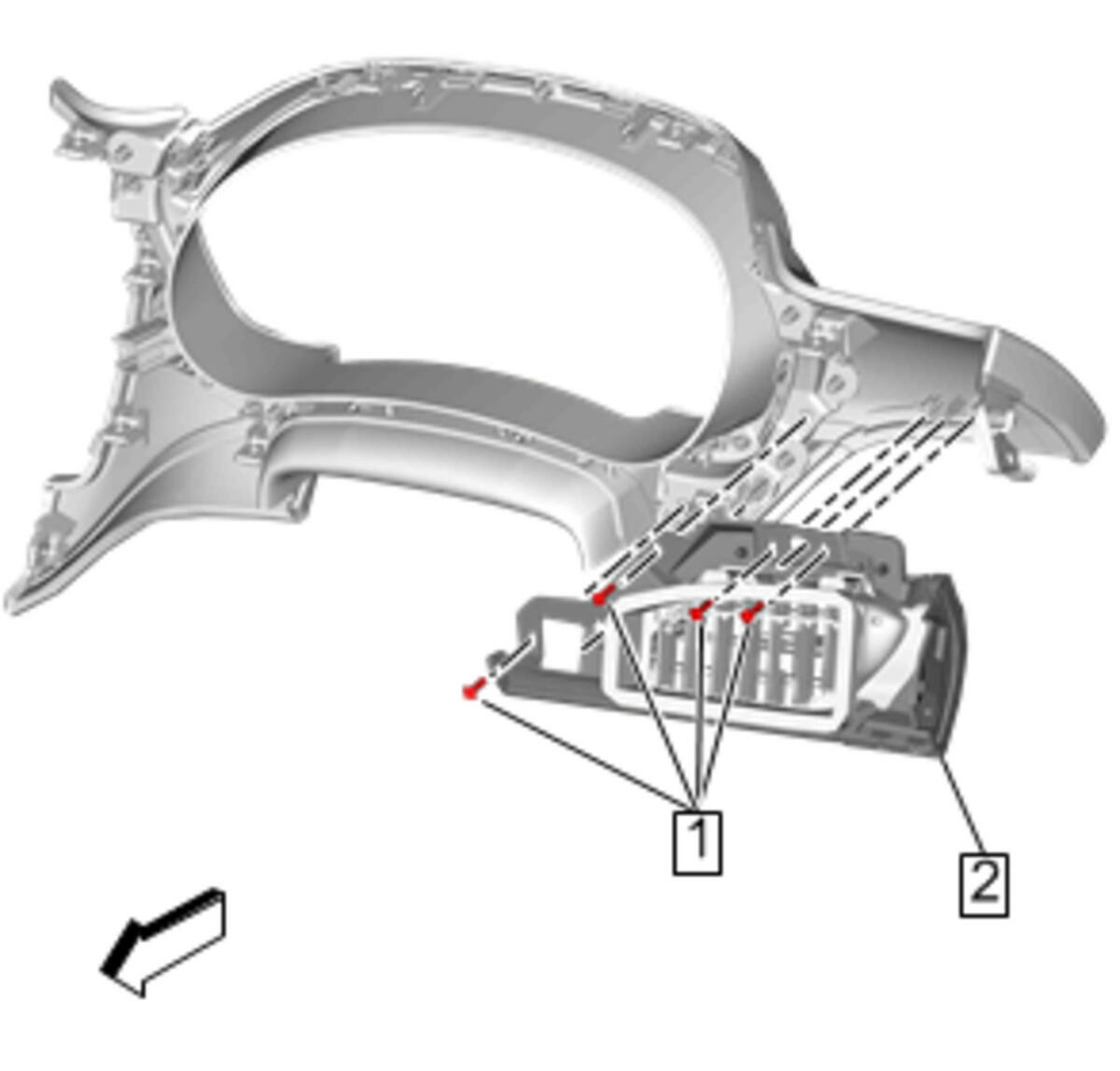

  1. GM4755818Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] 0.67N.m (6 lb in)
  3. GM4755737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side
