Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Trim Pad - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

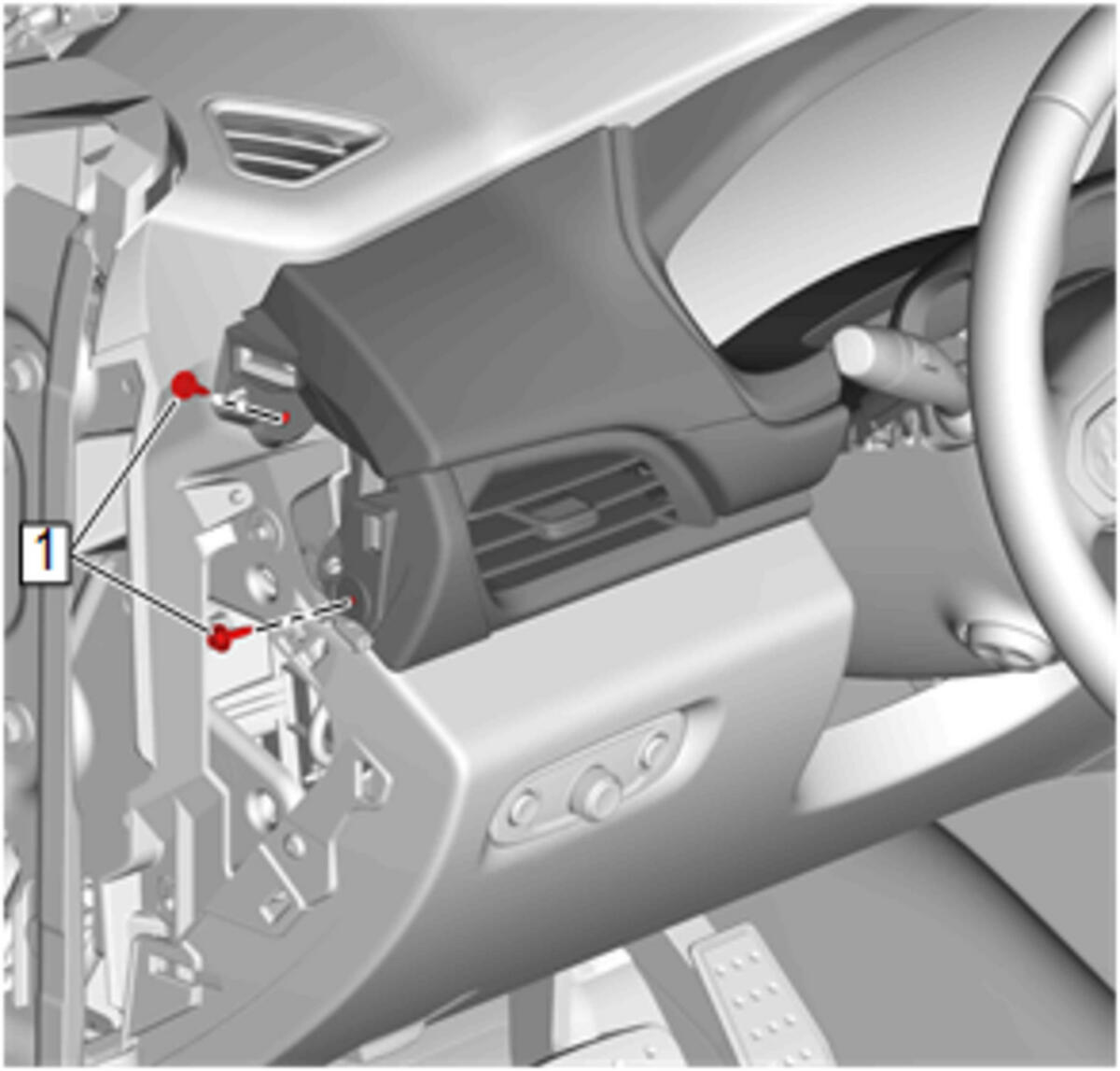

Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [2x] 2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Steering Column Upper Trim Cover (1) - Install
Instrument Panel Outer Trim Cover - Install - Instrument Panel Outer Trim Cover Replacement
