Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle.
  2. Install the instrument panel wiring harness assembly to the position noted in the removal procedure.
  3. GM4310267Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

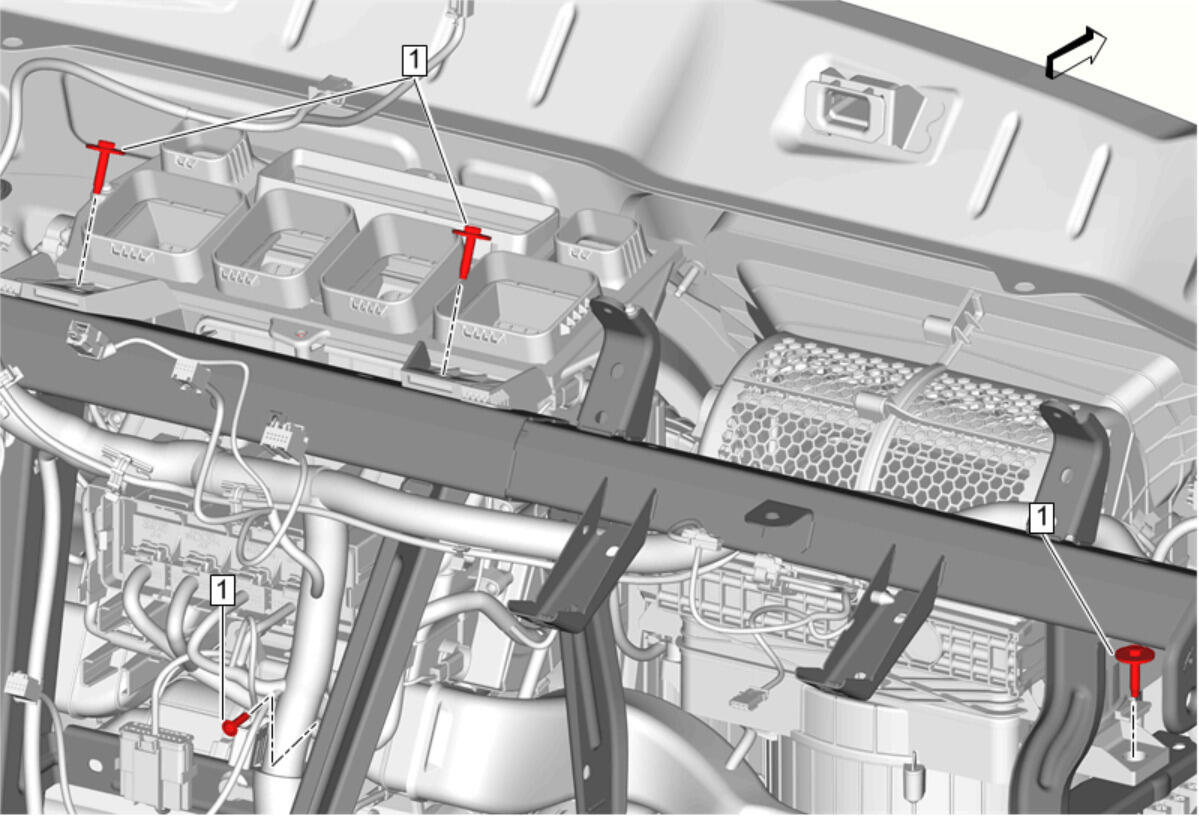

  4. GM4310266Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

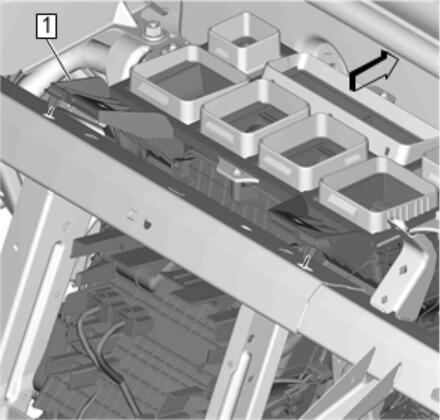

  5. GM4769725Courtesy of GENERAL MOTORS COMPANY

    Seat the HVAC module tabs (1) into the tie bar.

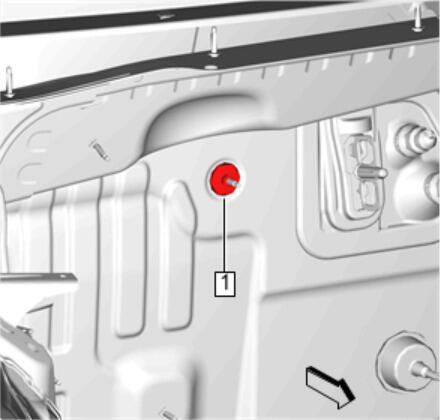

  6. GM4769720Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Nut (1)@Cowl Panel - Tighten 9N.m (80 lb in)

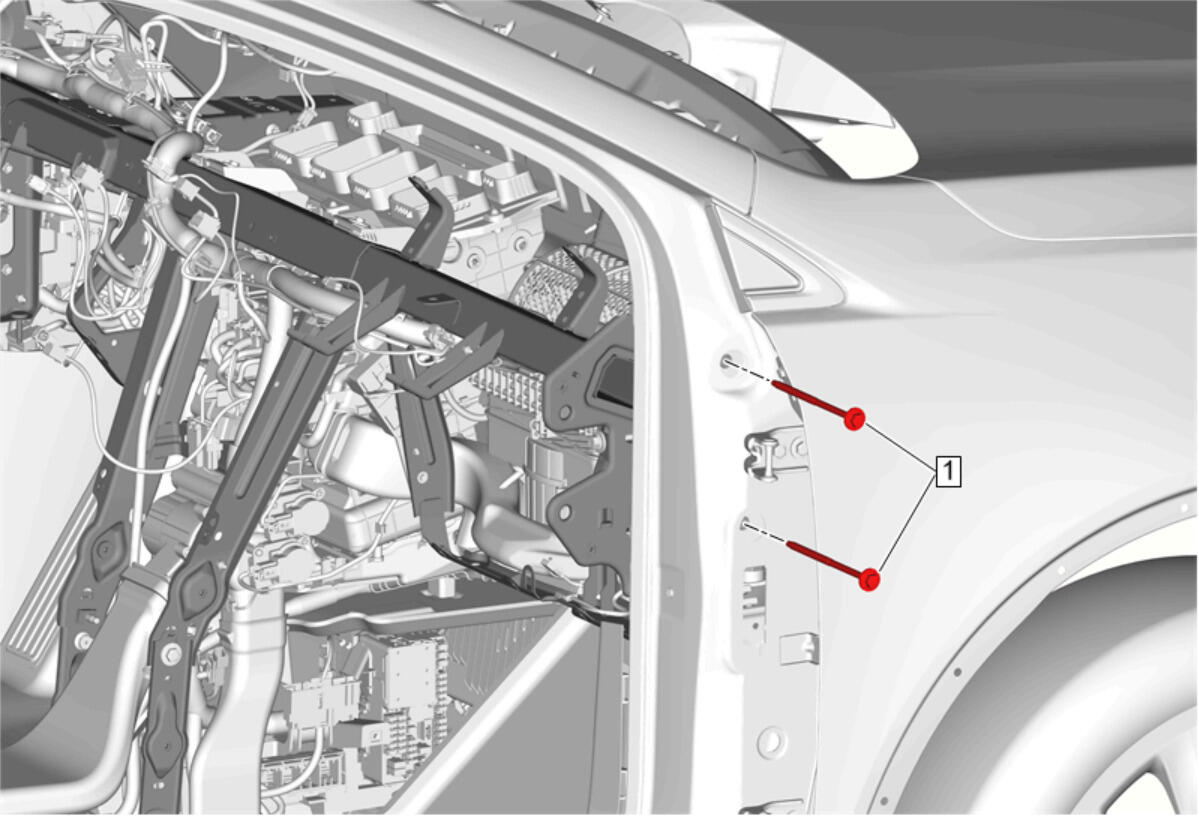

  7. GM4310265Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

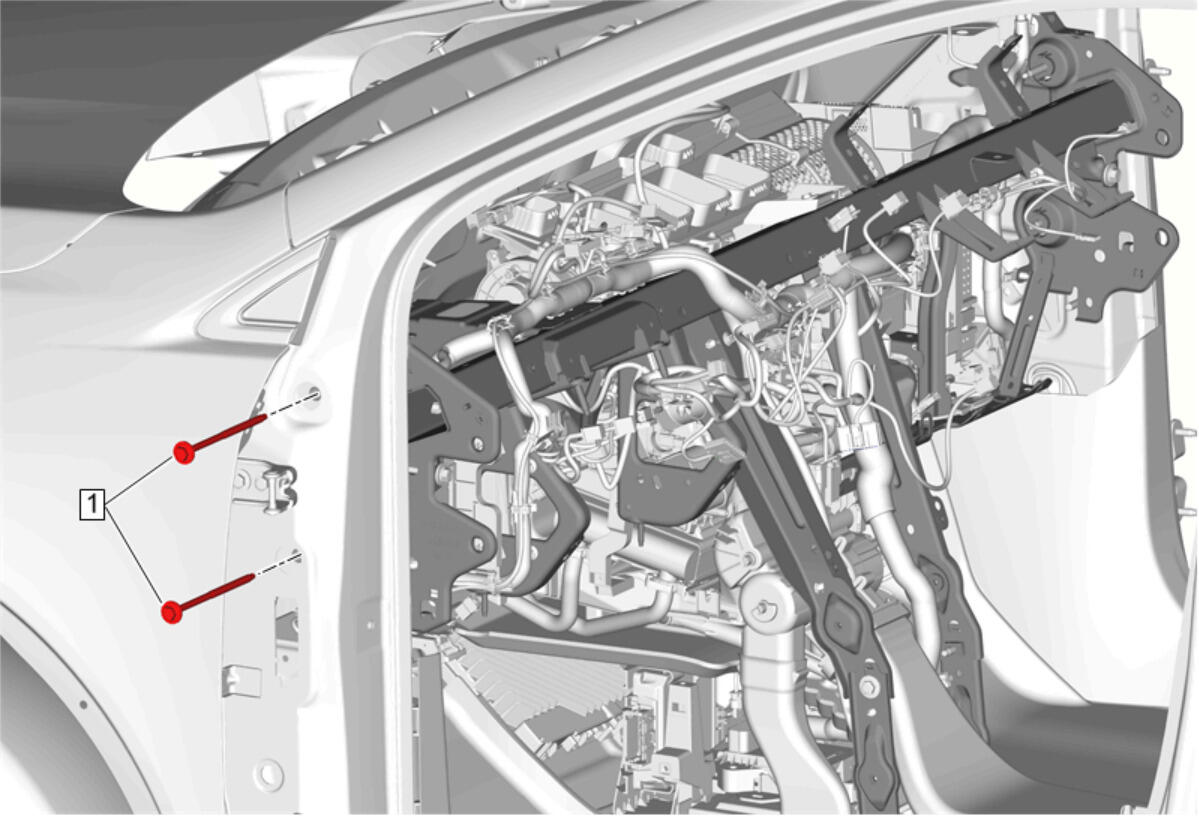

  8. GM4310264Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

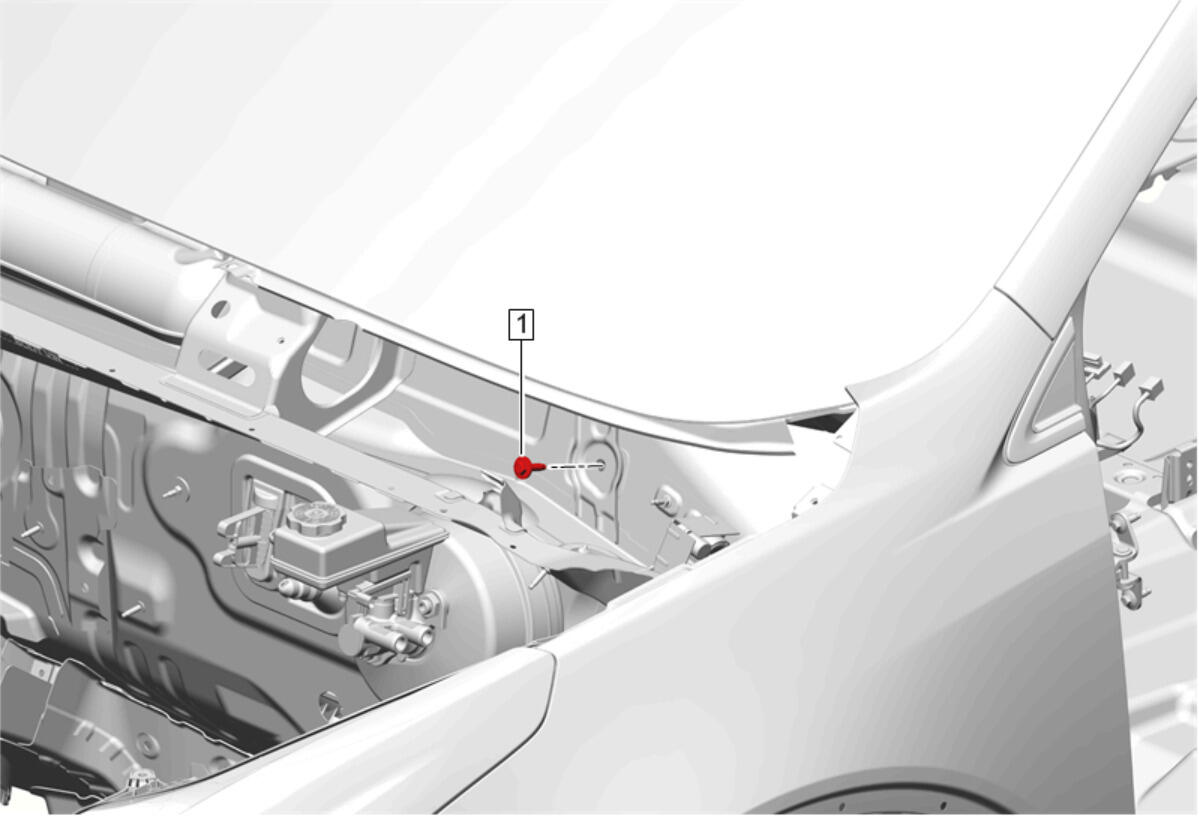

  9. GM4310263Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  10. GM4281971Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement

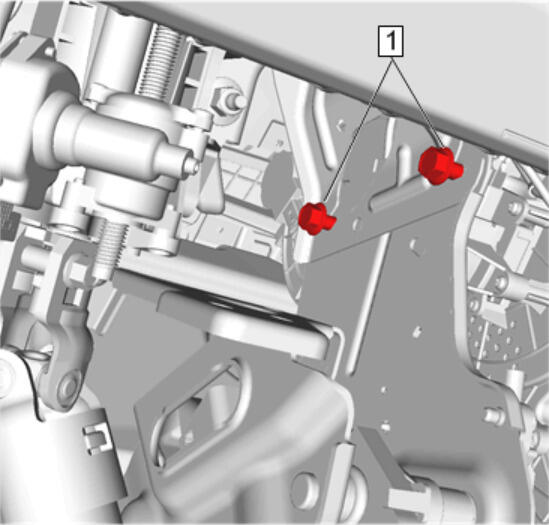

  11. GM4285109Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bracket Bolt (1) - Install and tighten [2x] 15 N.m (11 lb ft)

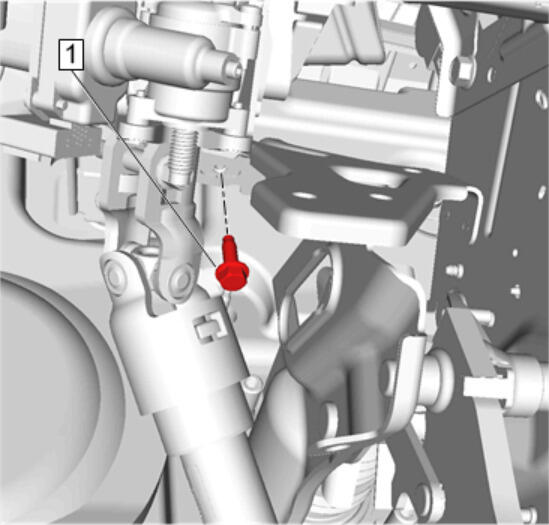

  12. GM4285094Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bracket Bolt (1) - Install and tighten 15 N.m (11 lb ft)

  13. GM4427324Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace (2) - Install - Instrument Panel Tie Bar Brace Replacement

  14. GM4756516Courtesy of GENERAL MOTORS COMPANY

    Human Machine Interface Control Module Bracket (2) - Install - Human Machine Interface Control Module Bracket Replacement

  15. GM4756147Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket (3) - Install - Radio Bracket Replacement

  16. GM4757373Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install - Communication Interface Module Bracket Replacement

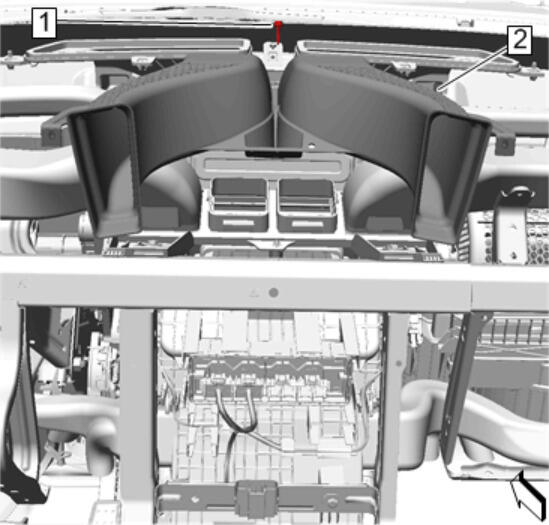

  17. GM4756832Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct (2) - Install - Instrument Panel Air Outlet Duct Replacement

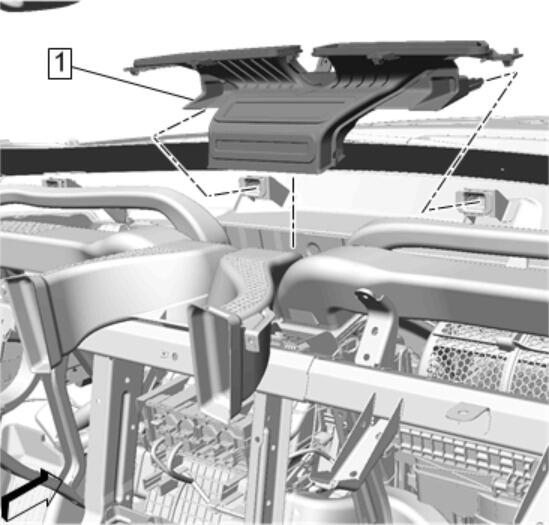

  18. GM4755883Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement

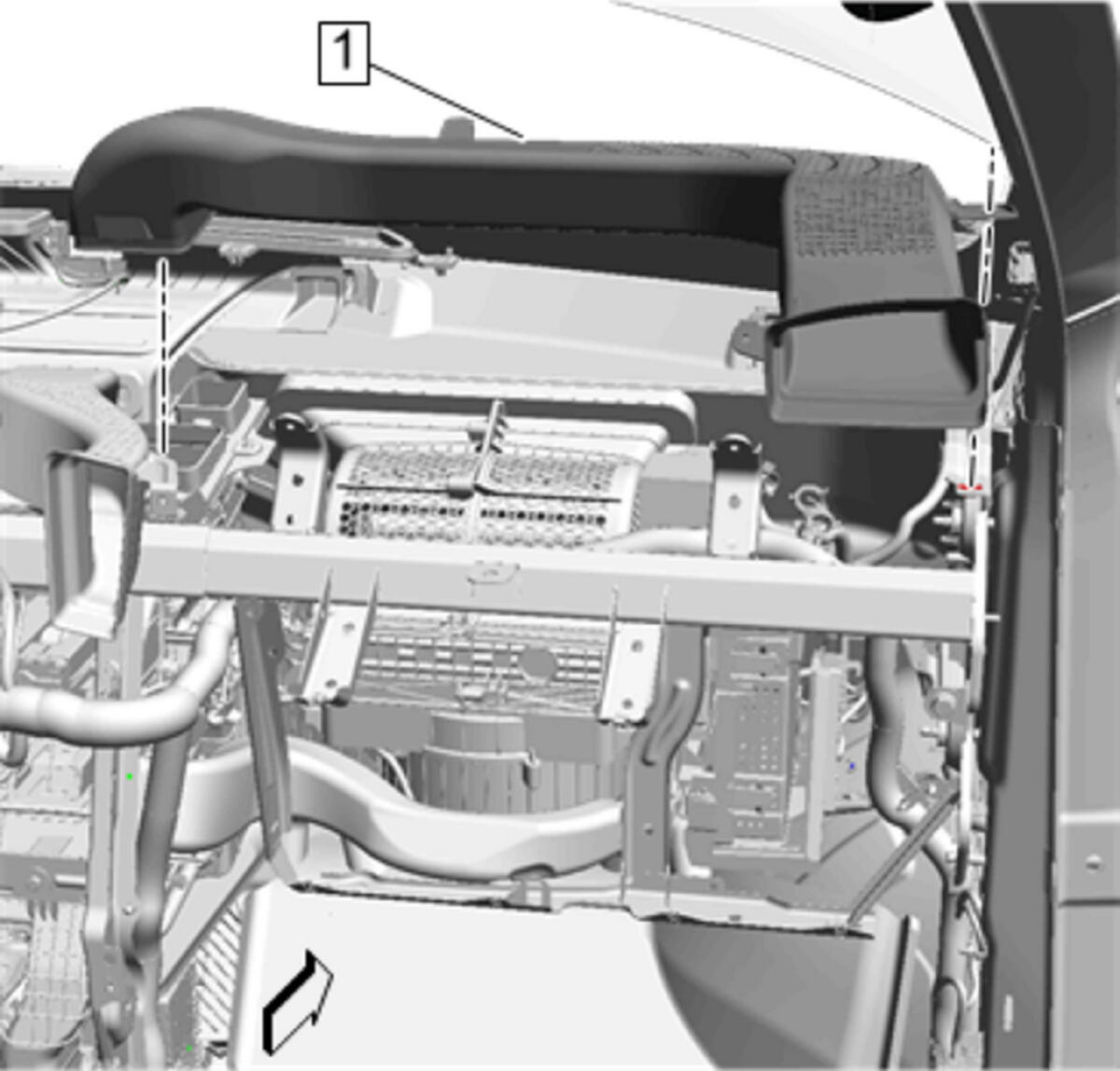

  19. GM4756627Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Right Side

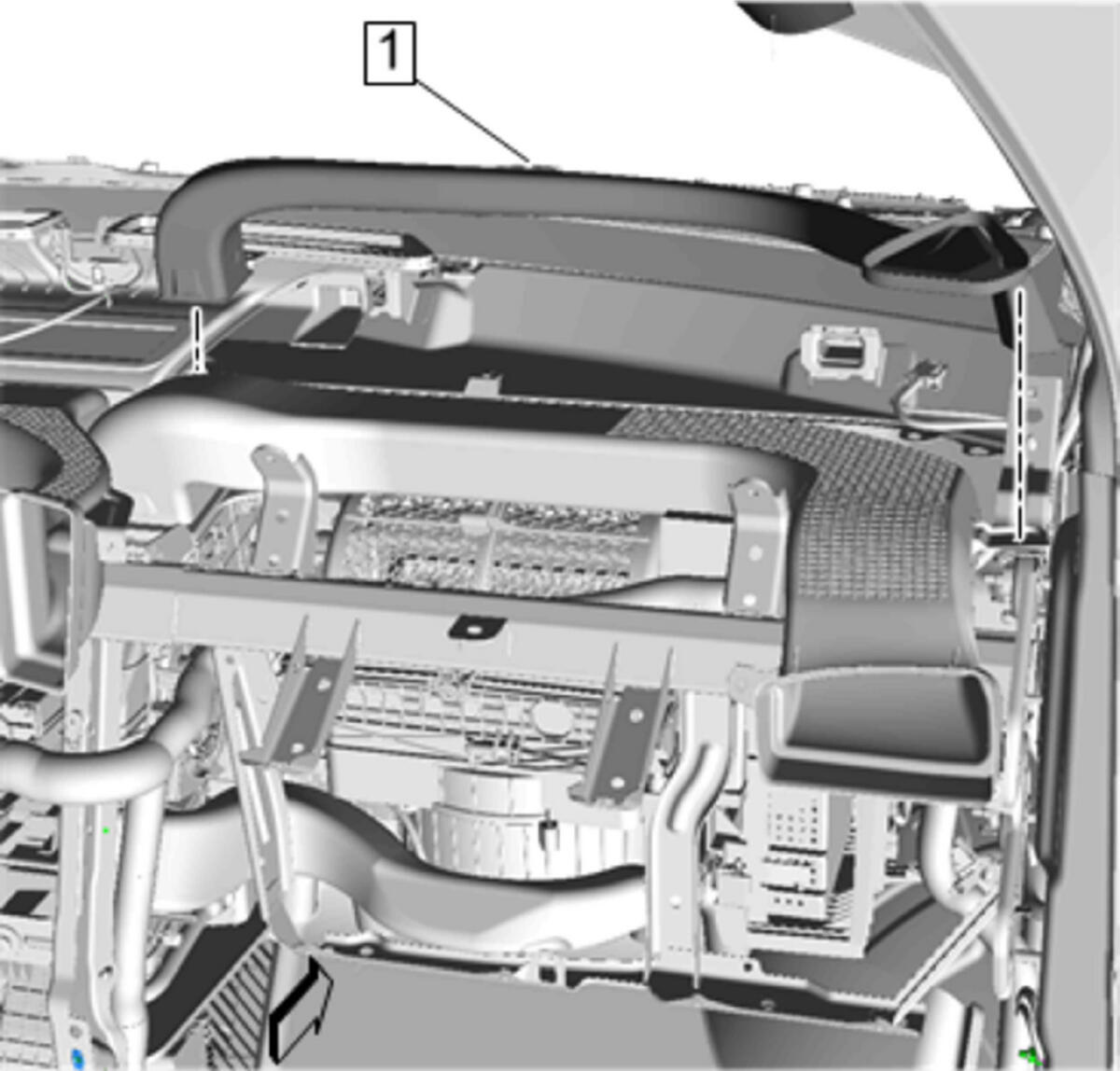

  20. GM4756575Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side

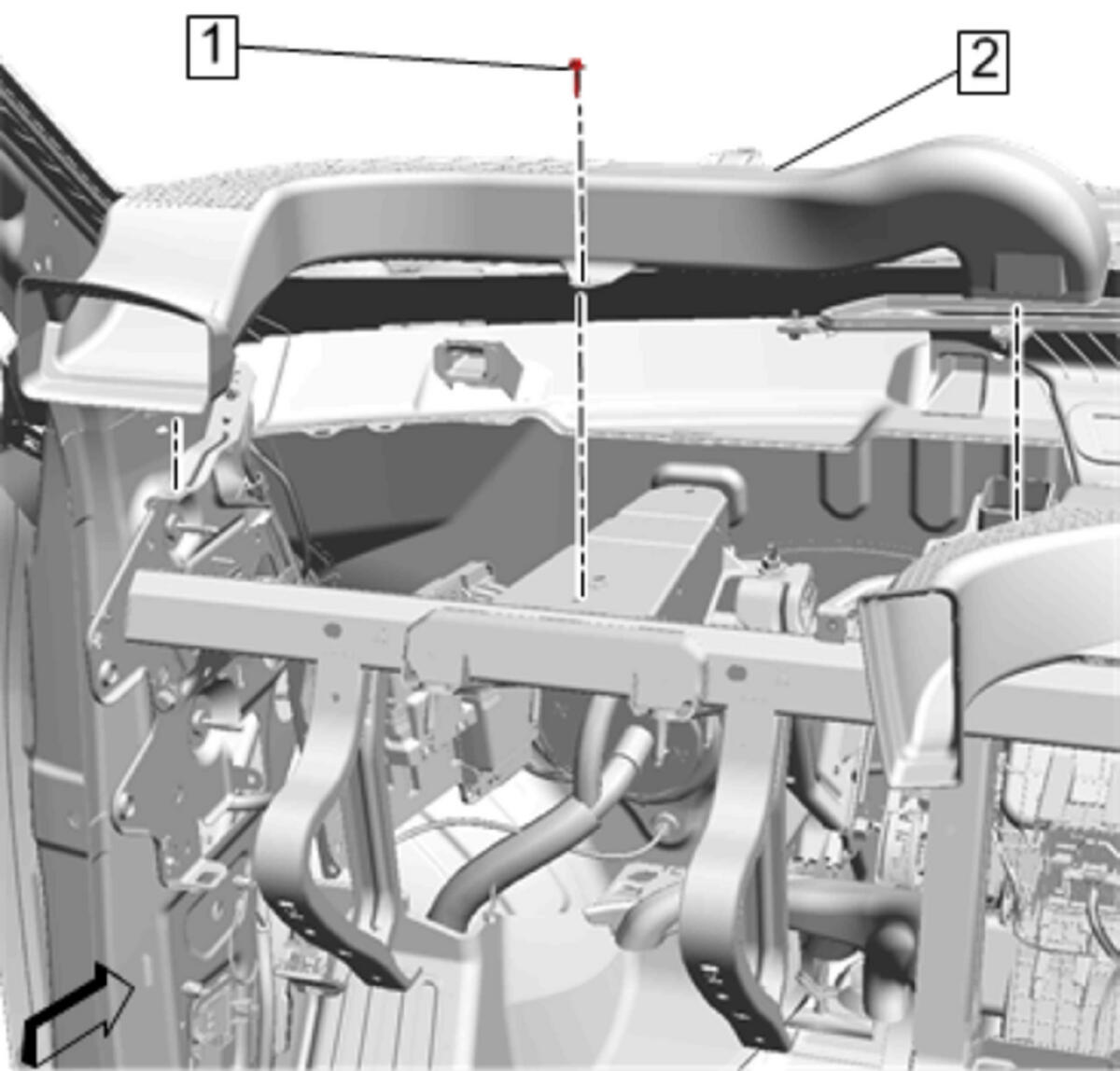

  21. GM4757032Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct - Left Side (2) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Left Side

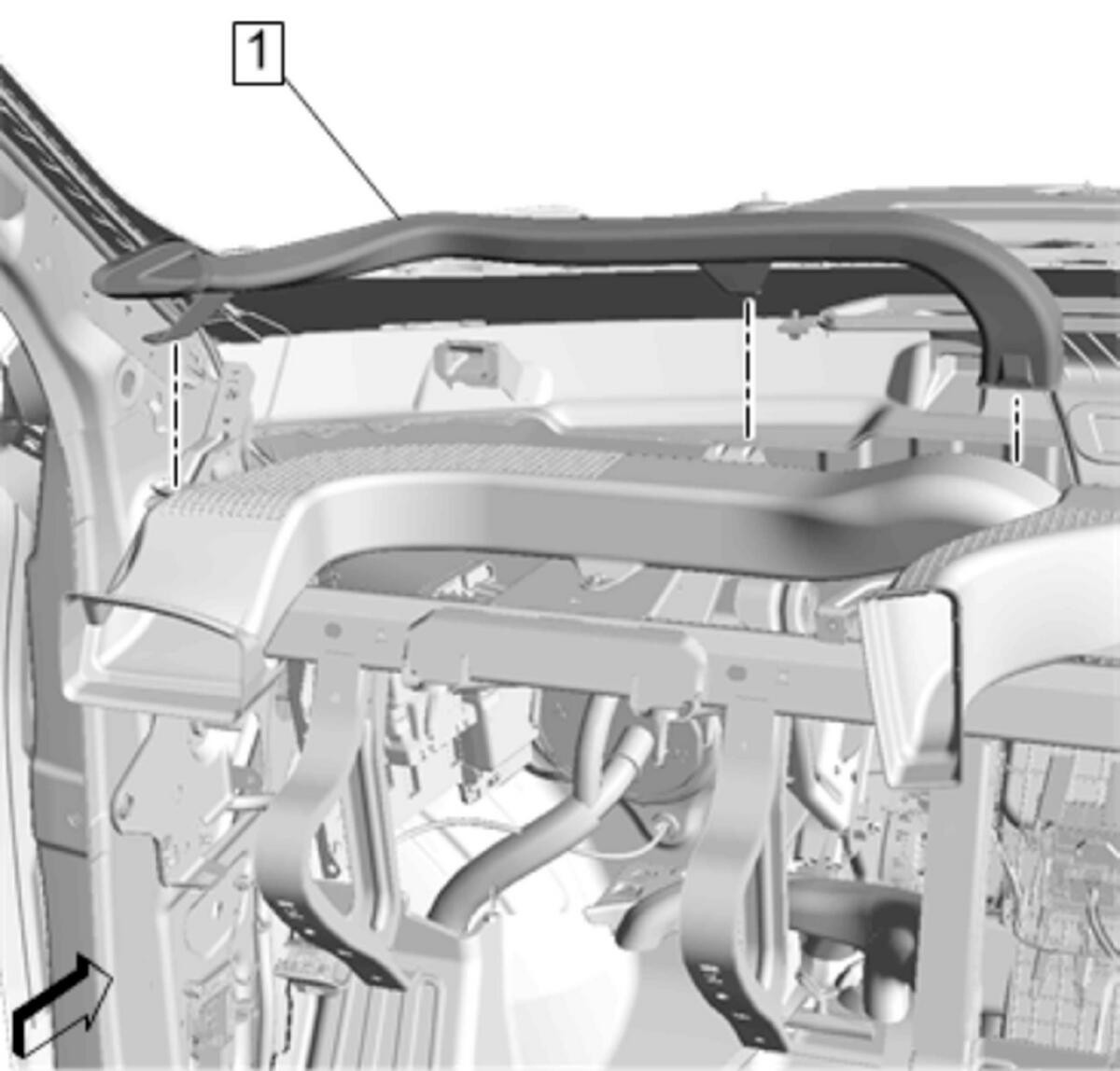

  22. GM4756989Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side

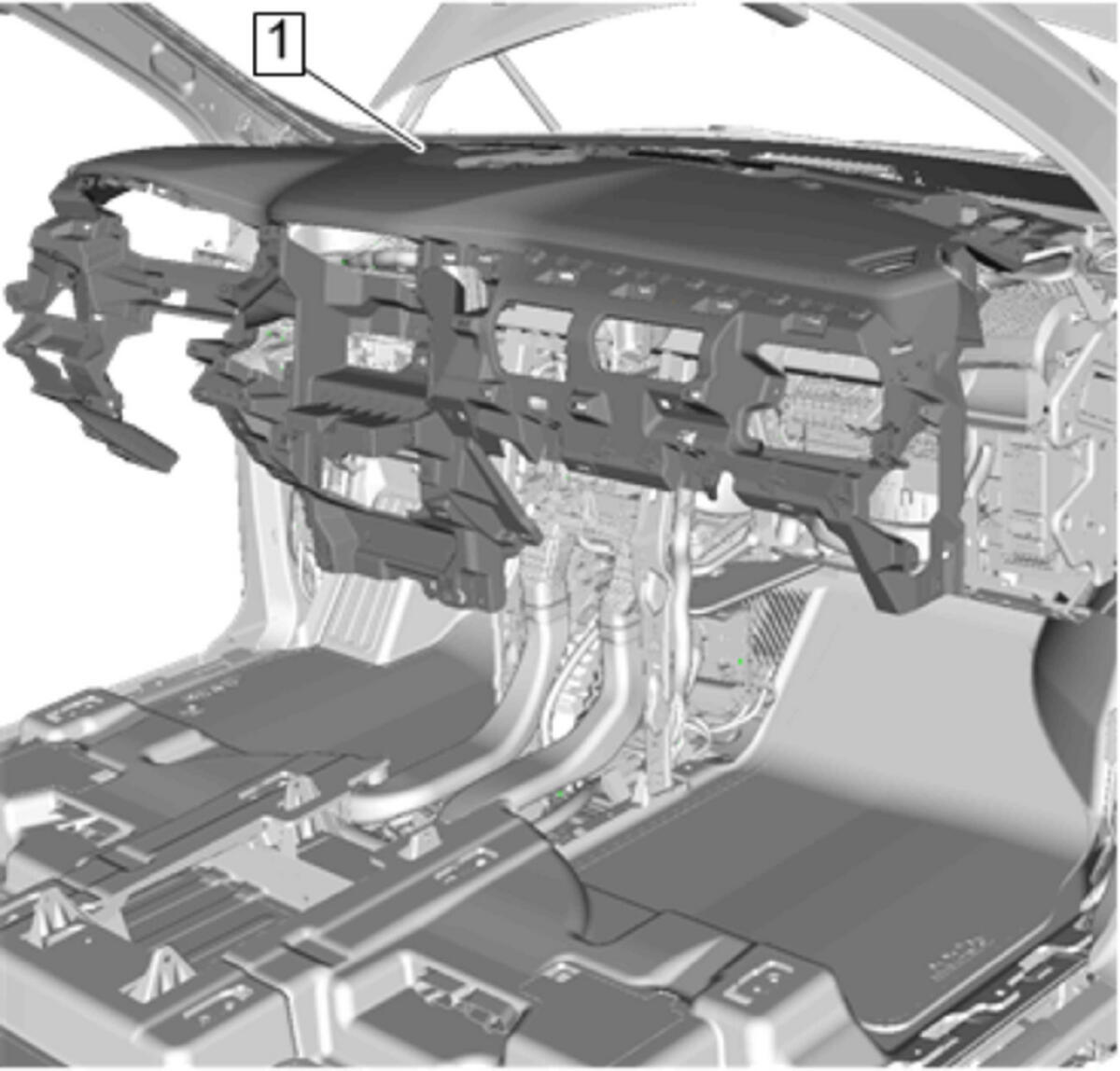

  23. GM4756474Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install - Instrument Panel Assembly Replacement

  24. GM4754904Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

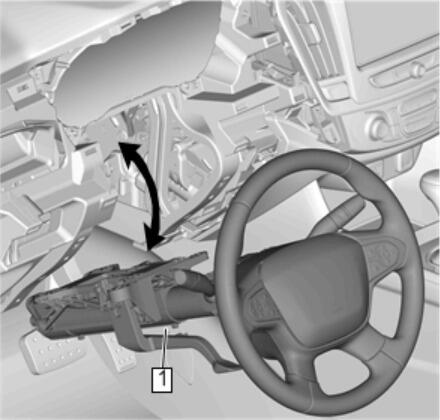

  25. GM4751041Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)

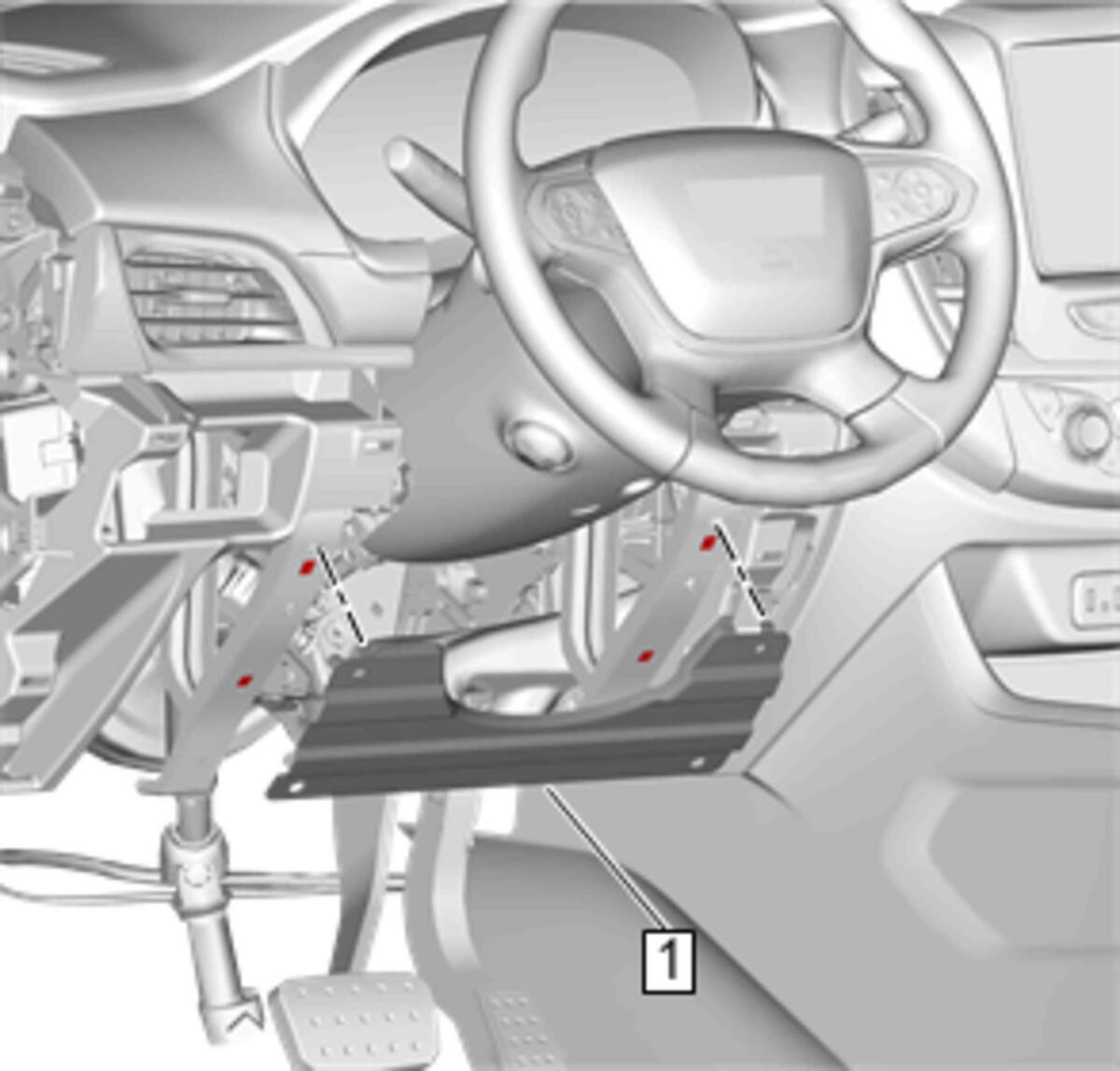

  26. GM4756605Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bracket (1) - Install - Instrument Panel Knee Bolster Bracket Replacement

  27. Connect the electrical connectors.
  28. GM4769752Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

  29. GM4756689Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install - Radio Control Assembly Replacement (With IO5, IO6)

  30. GM4762667Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Opening Frame (1) - Install - Instrument Panel Compartment Door Opening Frame Replacement

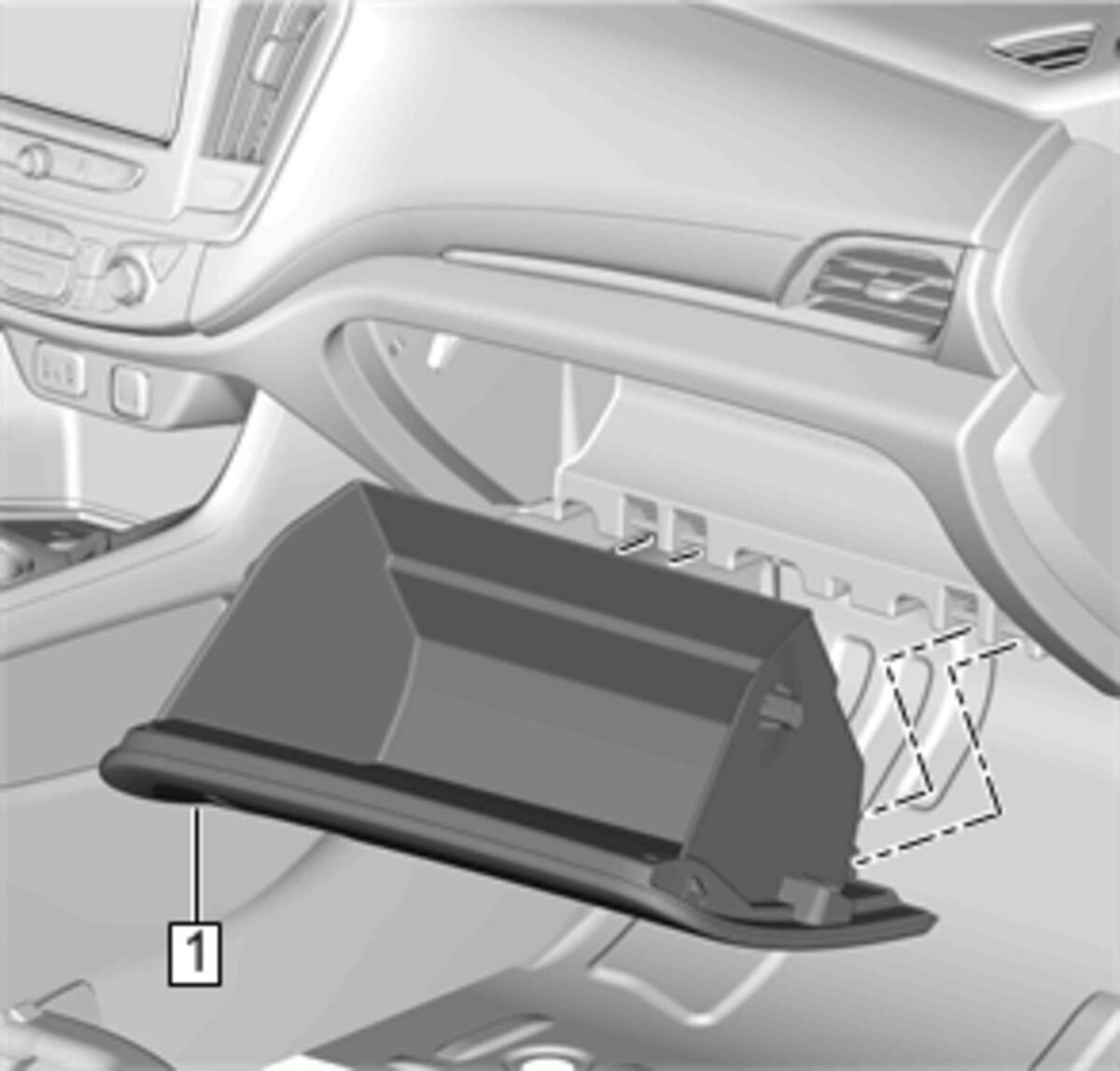

  31. GM4757512Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement

  32. Connect the electrical connectors.
  33. GM4738614Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  34. GM4754378Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

  35. GM4749780Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

  36. GM4749789Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

  37. GM4756534Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

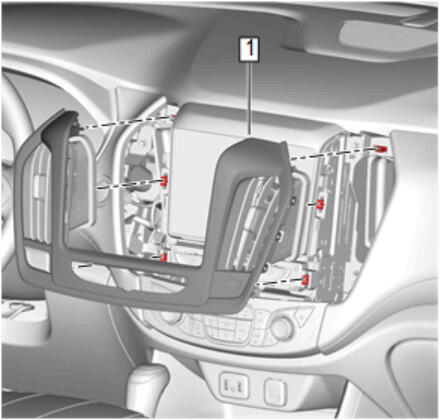

  38. GM4758192Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install - Instrument Panel Radio Front Trim Plate Replacement (RPO IOA) , or Instrument Panel Radio Front Trim Plate Replacement (RPO IO5, IO6)

  39. GM4756846Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  40. GM4755737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side

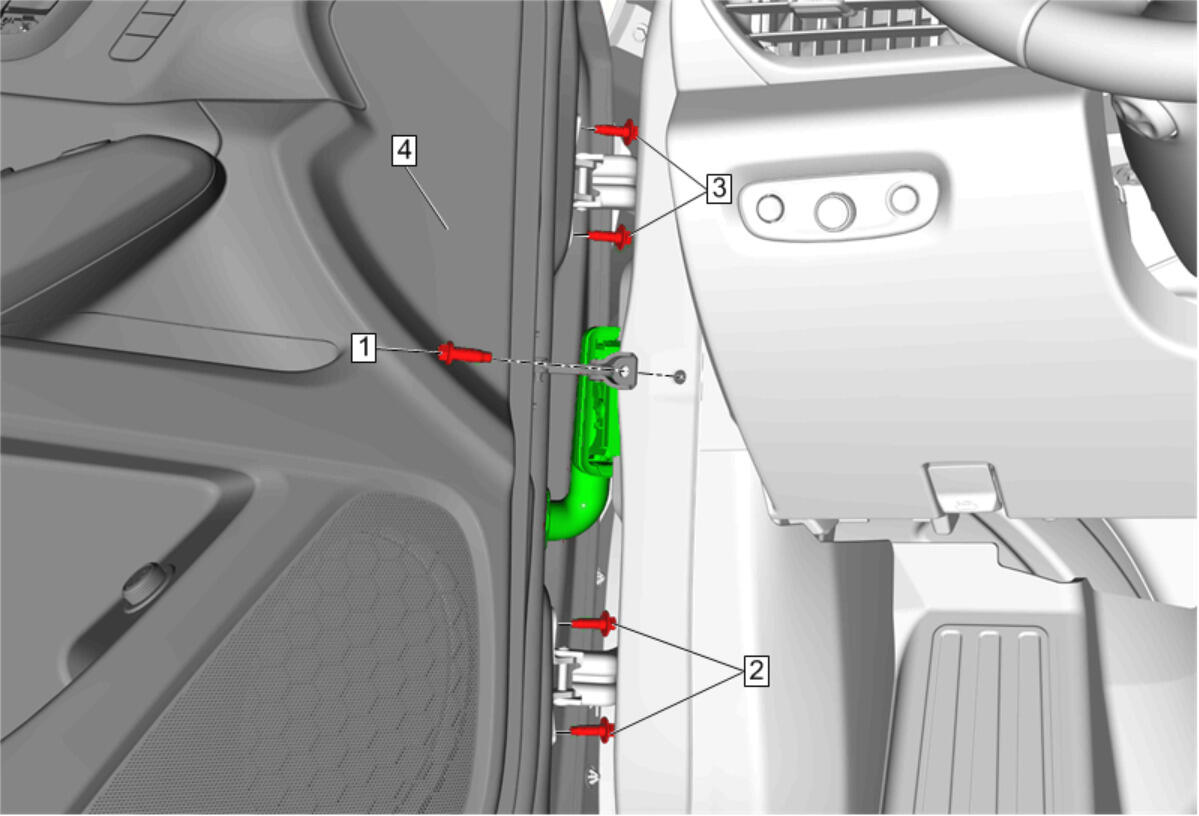

  41. GM4707601Courtesy of GENERAL MOTORS COMPANY

    Front Side Door (4) - Install - Front Side Door Replacement
