Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

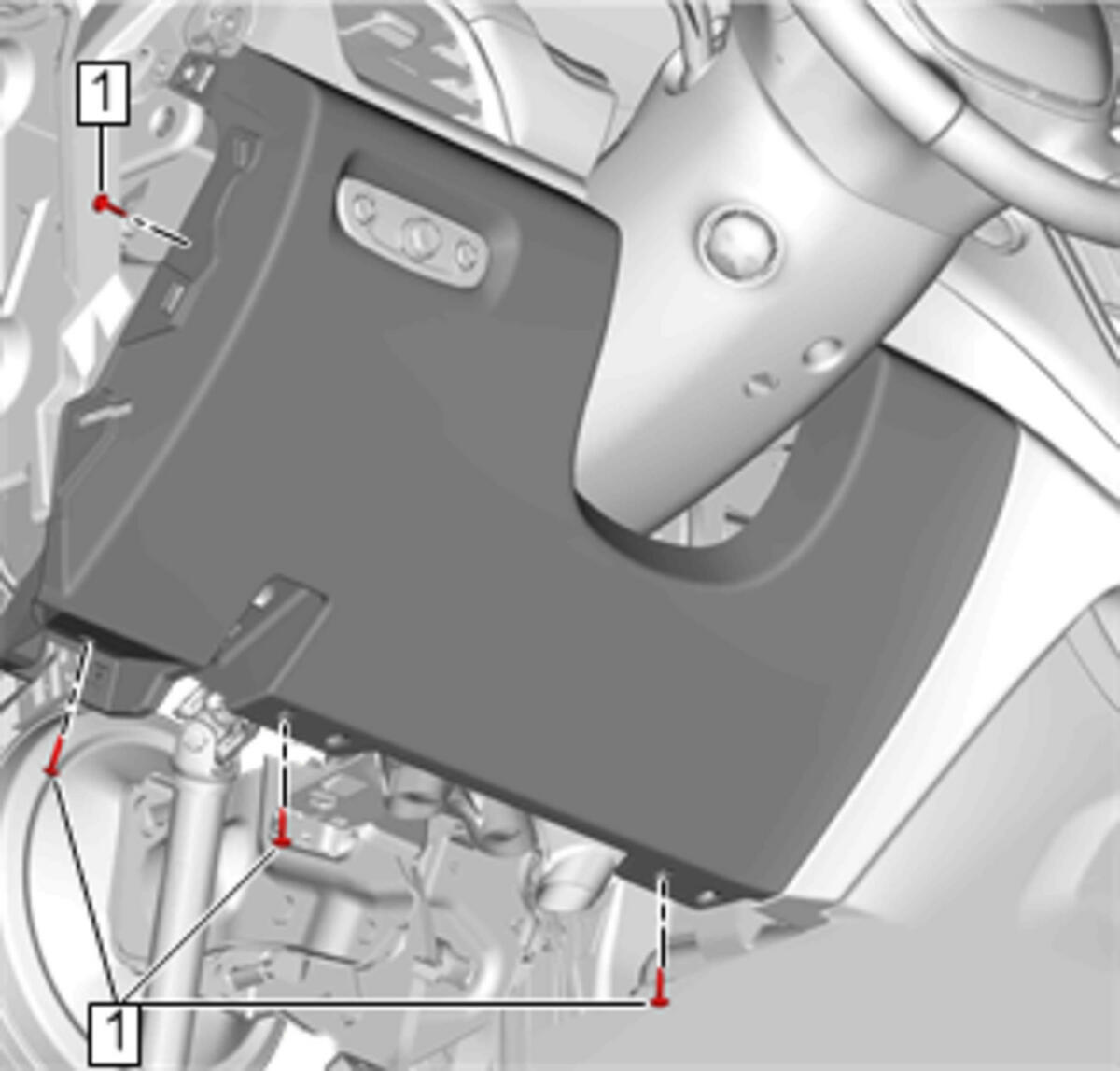

- Instrument Panel Knee Bolster (1) - Install
Instrument Panel Knee Bolster Bolt (1) - Install and tighten [4x] 2N.m (18 lb in)
Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
- Connect the data link connector.
- Hood Primary Latch Release Cable Handle - Install - Hood Primary Latch Release Cable Handle Replacement
- Front Side Door Sill Garnish Molding - Install - Front Side Door Sill Garnish Molding Replacement
