Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

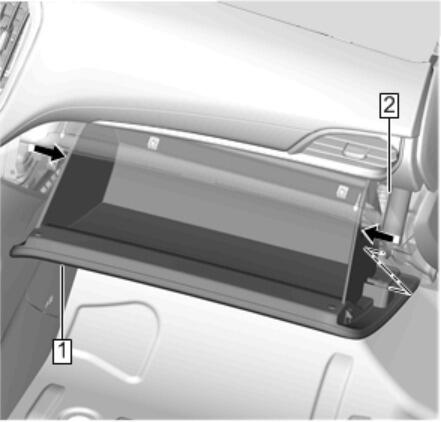

  1. GM4757510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Open

  2. Disconnect the instrument panel compartment door dampener (2) from the instrument panel compartment door (1).
  3. Squeeze the sides of the instrument panel compartment door (1) to allow the door to open past the stops.
  4. GM4757512Courtesy of GENERAL MOTORS COMPANY

    Unsnap the instrument panel compartment door (1) from the instrument panel assembly.
