Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Seat (2) - Remove - Front Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

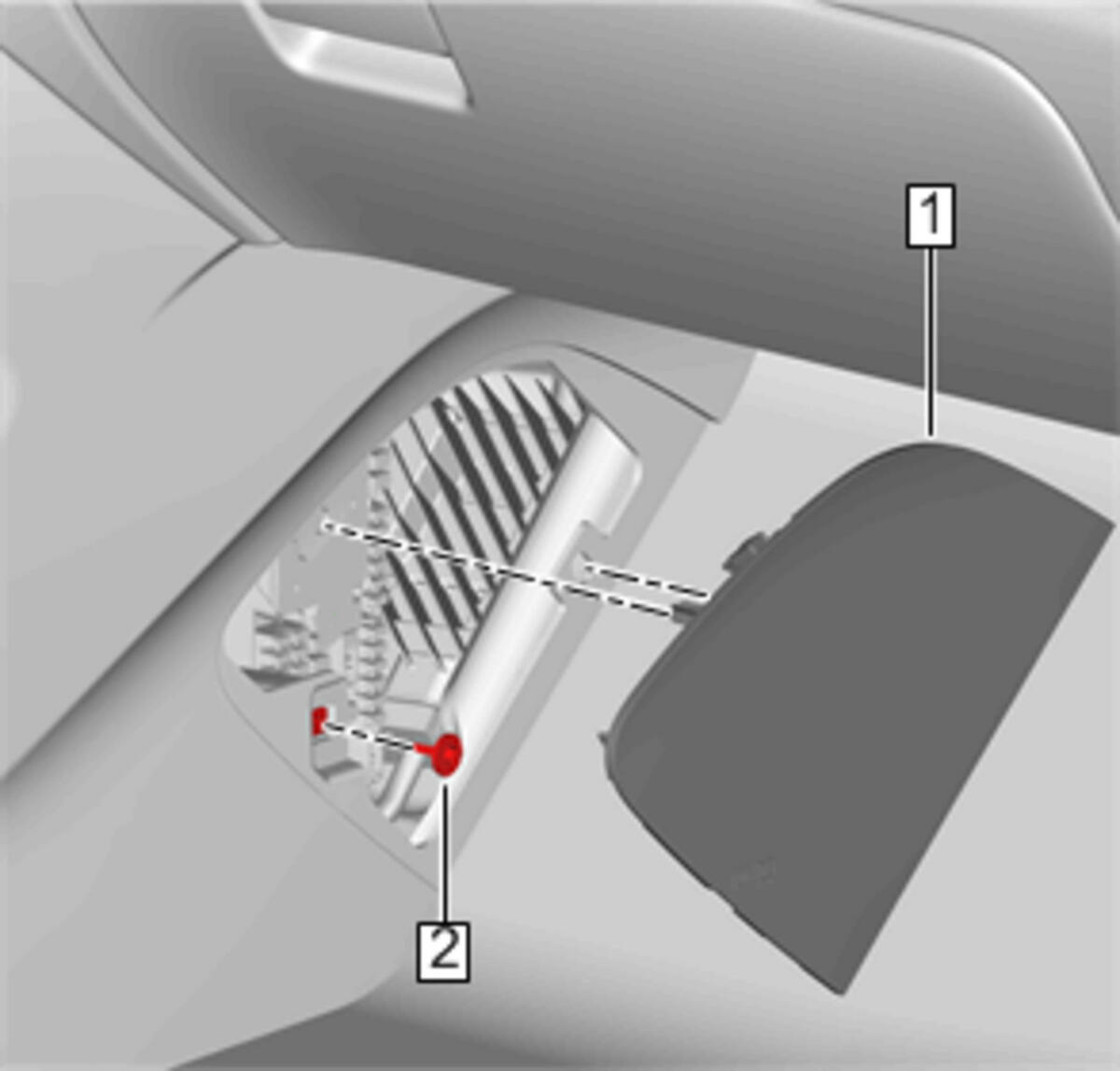

Front Floor Console Front Cover (1) - Remove
Use a plastic trim tool if necessary.
Front Floor Console Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

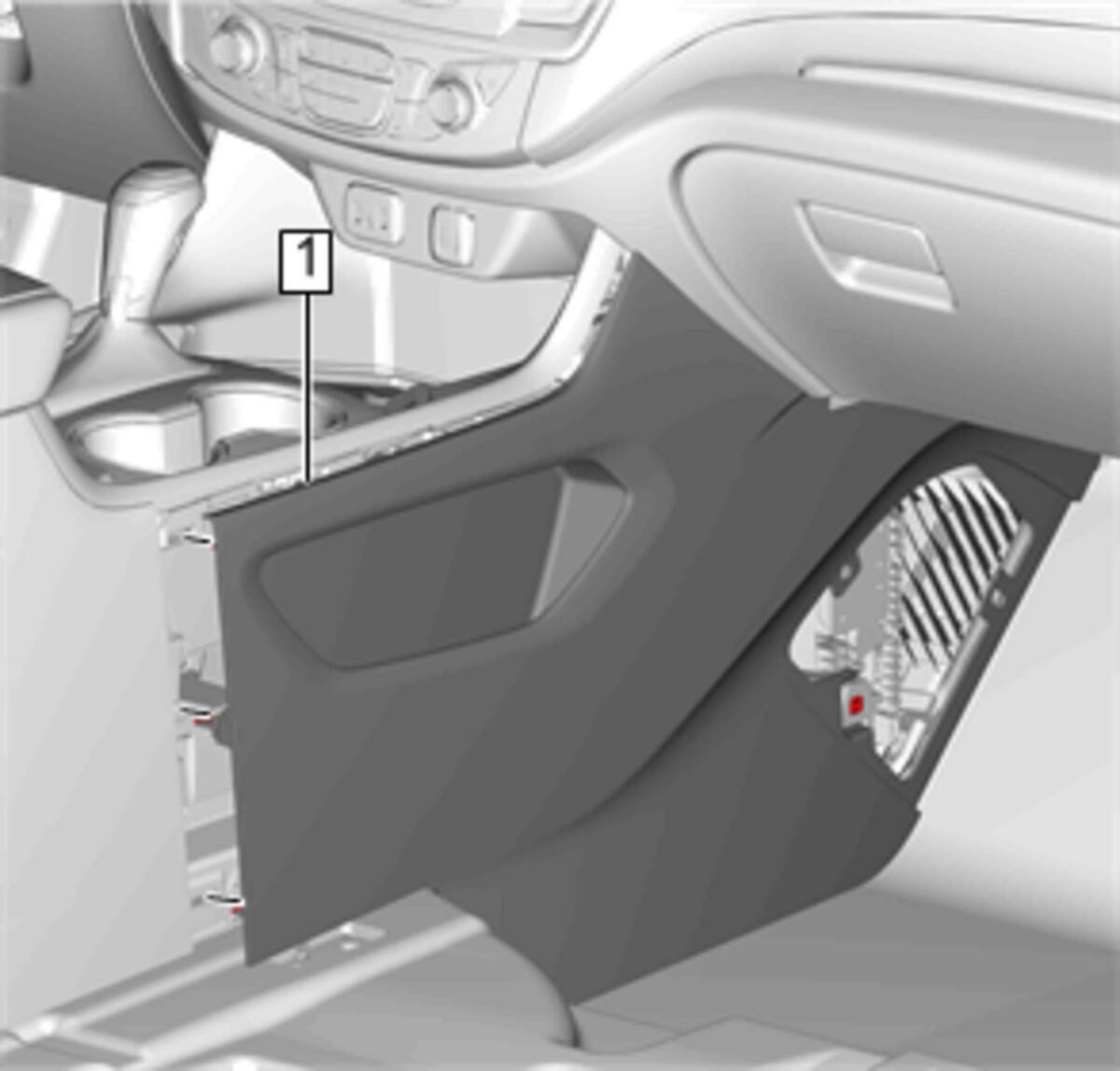

Start at the rear and work your way forward when releasing the front floor console extension panel (1).
Use a plastic trim tool if necessary.
Courtesy of GENERAL MOTORS COMPANY

Pull the front floor console extension panel (1) rearward to clear the tab from the instrument panel.
