Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

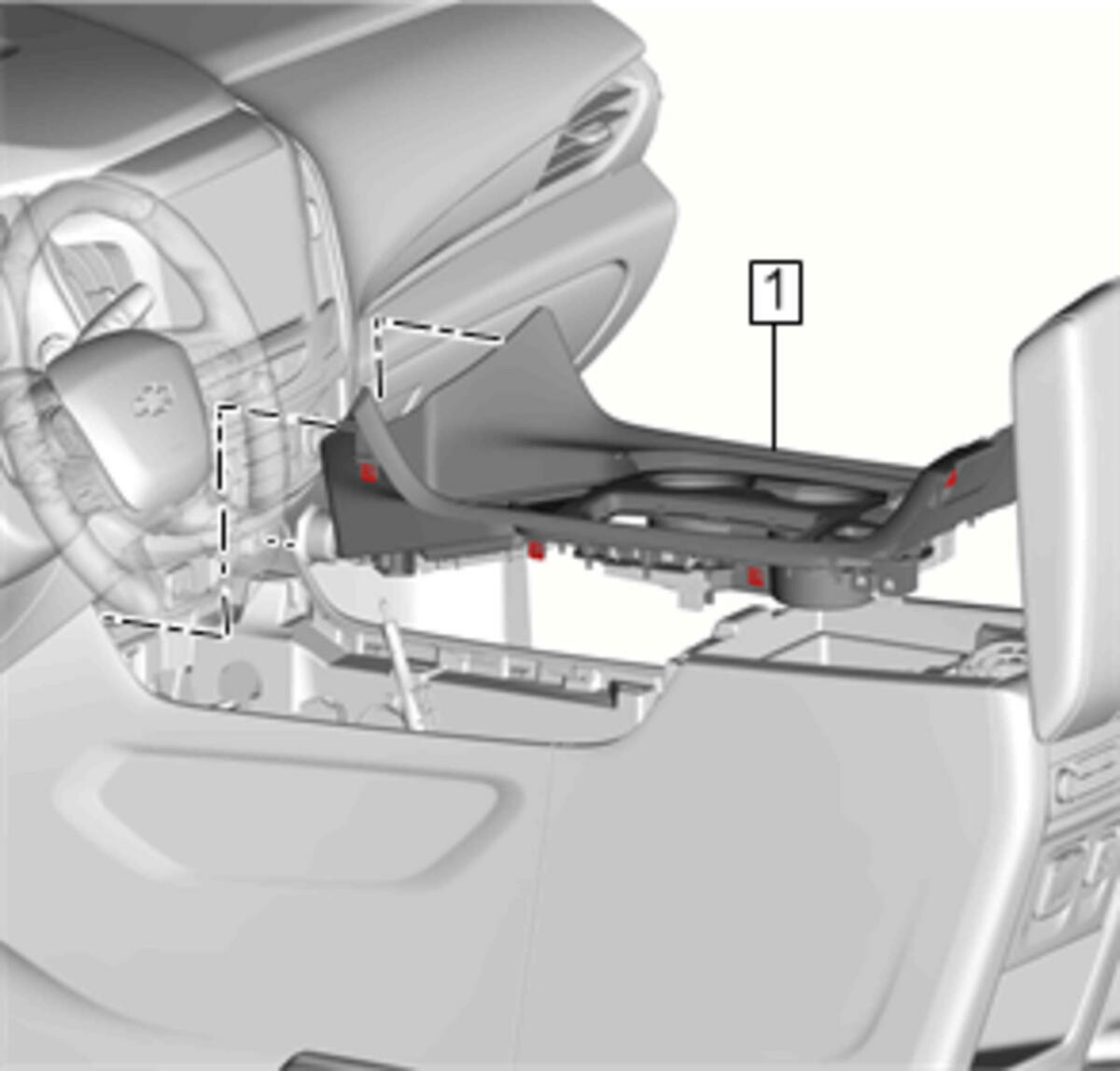

  1. GM4749778Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  2. Front Floor Console Trim Plate (1) - Install
  3. Close the armrest cover.

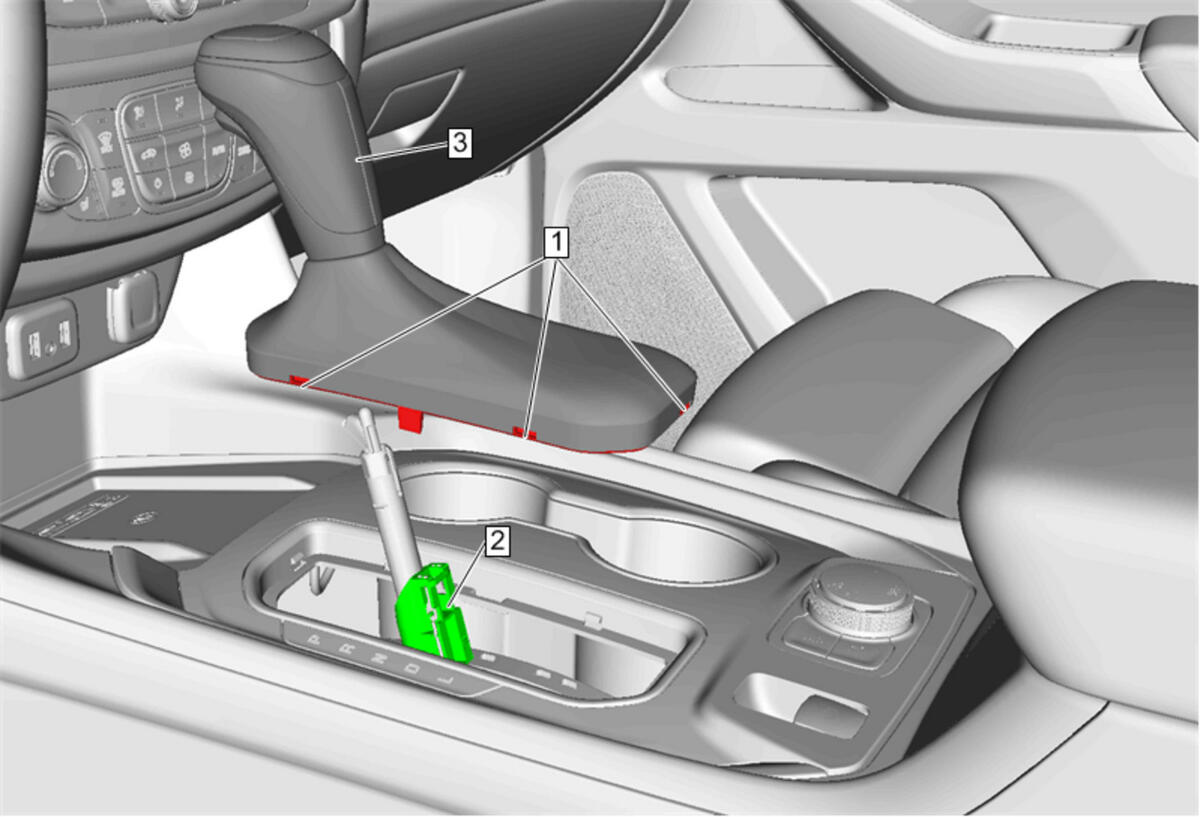

  4. GM4704539Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Lever Knob (3) - Install - Transmission Control Lever Knob Replacement
