S79P Window Switch - Passenger
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

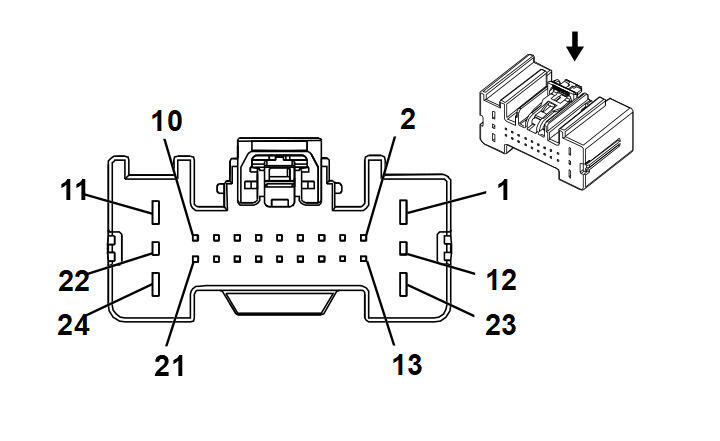

Connector Part Information
- Harness Type: Passenger Door Trim
- OEM Connector: 13581061
- Service Connector: Service by Harness - See Part Catalog
- Description: 24-Way F 0.64, 1.5, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
YE/BU |
3388 |
Power Window Motor Passenger Down Control |
II |
- |
| 2 |
0.35 |
GY |
746 |
Right Front Door Ajar Switch Signal |
III |
- |
| 3 |
0.35 |
GN/BK |
3396 |
Passenger Mirror Motor Right (+) Left (-) Control |
III |
- |
| 4 |
0.35 |
YE/VT |
3397 |
Passenger Mirror Motor Up (+) Down (-) Control |
III |
- |
| 5 |
0.35 |
WH |
3398 |
Passenger Mirror Motor Common Control |
III |
- |
| 6 |
0.35 |
YE/RD |
3399 |
Passenger Mirror Position Sensor 5V Reference |
III |
- |
| 7 |
0.35 |
BU/YE |
3401 |
Passenger Mirror Position Sensor Up (+) Down (-) Signal |
III |
- |
| 8 |
0.35 |
BK/GN |
3400 |
Passenger Mirror Position Sensor Low Reference |
III |
- |
| 9 |
0.35 |
VT/WH |
3403 |
Passenger Mirror Position Sensor Left (-) Right (+) Signal |
III |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
2.5 |
GN/GY |
3387 |
Power Window Motor Passenger Up Control |
II |
- |
| 12 |
0.35 |
BU/GY |
3414 |
Passenger Mirror Motor Fold In Control |
I |
DNP |
| 13 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GN/YE |
6134 |
Local Interconnect Network Serial Data Bus 3 |
III |
- |
| 21 |
0.35 |
GN/WH |
7530 |
Local Interconnect Network Serial Data Bus 8 |
III |
- |
| 22 |
0.35 |
YE/WH |
3413 |
Passenger Mirror Motor Fold Out Control |
I |
DNP |
| 23 |
2.5 |
RD/BU |
840 |
Battery Positive Voltage |
II |
- |
| 24 |
2.5 |
BK |
650 |
Ground |
II |
- |
