Installation Procedure

  1. GM4620101

    Route the side view driver information camera (1) through the opening in the housing bezel.

  2. Connect the electrical connector.
  3. GM4579958

    Outside Rearview Mirror Inner Actuator (2) - Install - Outside Rearview Mirror Actuator Replacement

  4. Connect the electrical connectors.

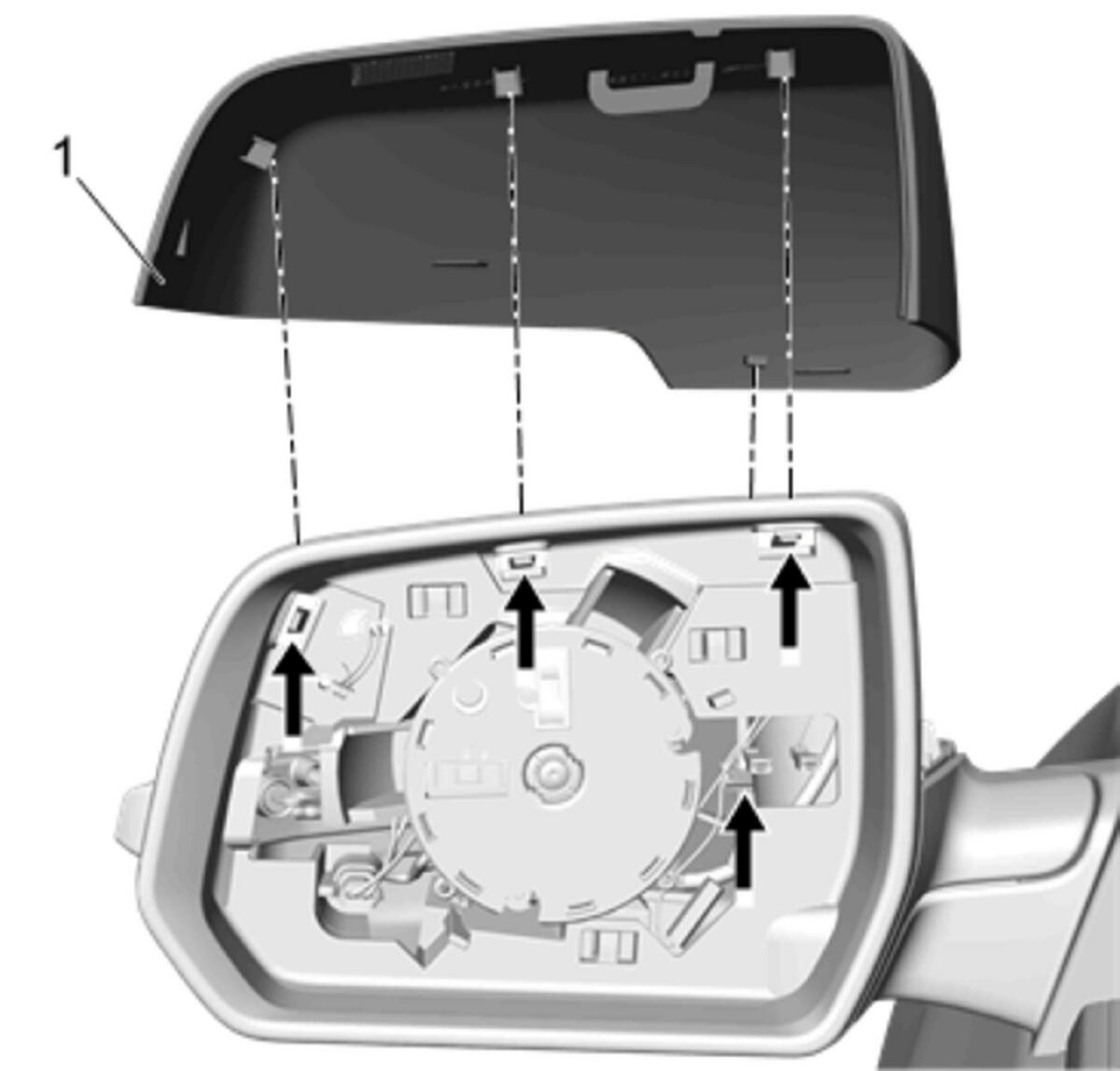

  5. GM4726495
    NOTE:

    Inspect the outside rearview mirror for proper operation.

    Outside Rearview Mirror Upper Housing Cover (1) - Install - Outside Rearview Mirror Housing Upper Cover Replacement
