External Components

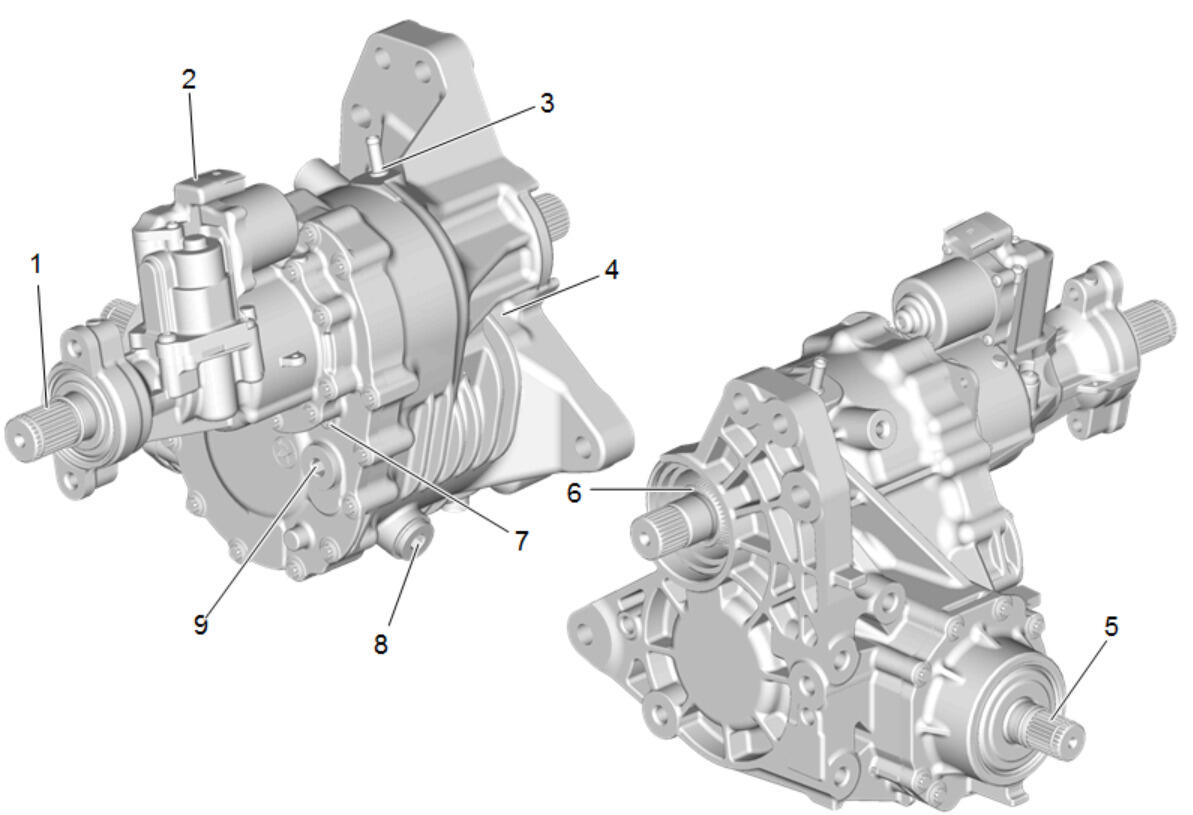

GM4218586
  1. Power Transfer Unit Intermediate Drive Shaft
  2. Power Transfer Unit Shift Actuator
  3. Power Transfer Unit Vent Hose Connector
  4. Power Transfer Unit Weep Hole Location - Main Case/Left Input Shaft Seal
  5. Power Transfer Unit Rear Output Shaft
  6. Power Transfer Unit Input Disconnect Shaft
  7. Power Transfer Unit Weep Hole Location - Cover/Right Input Shaft Seal
  8. Power Transfer Unit Drain Plug
  9. Power Transfer Unit Fill Plug
