Power Transfer Unit Mounting (with Transmission M3W)

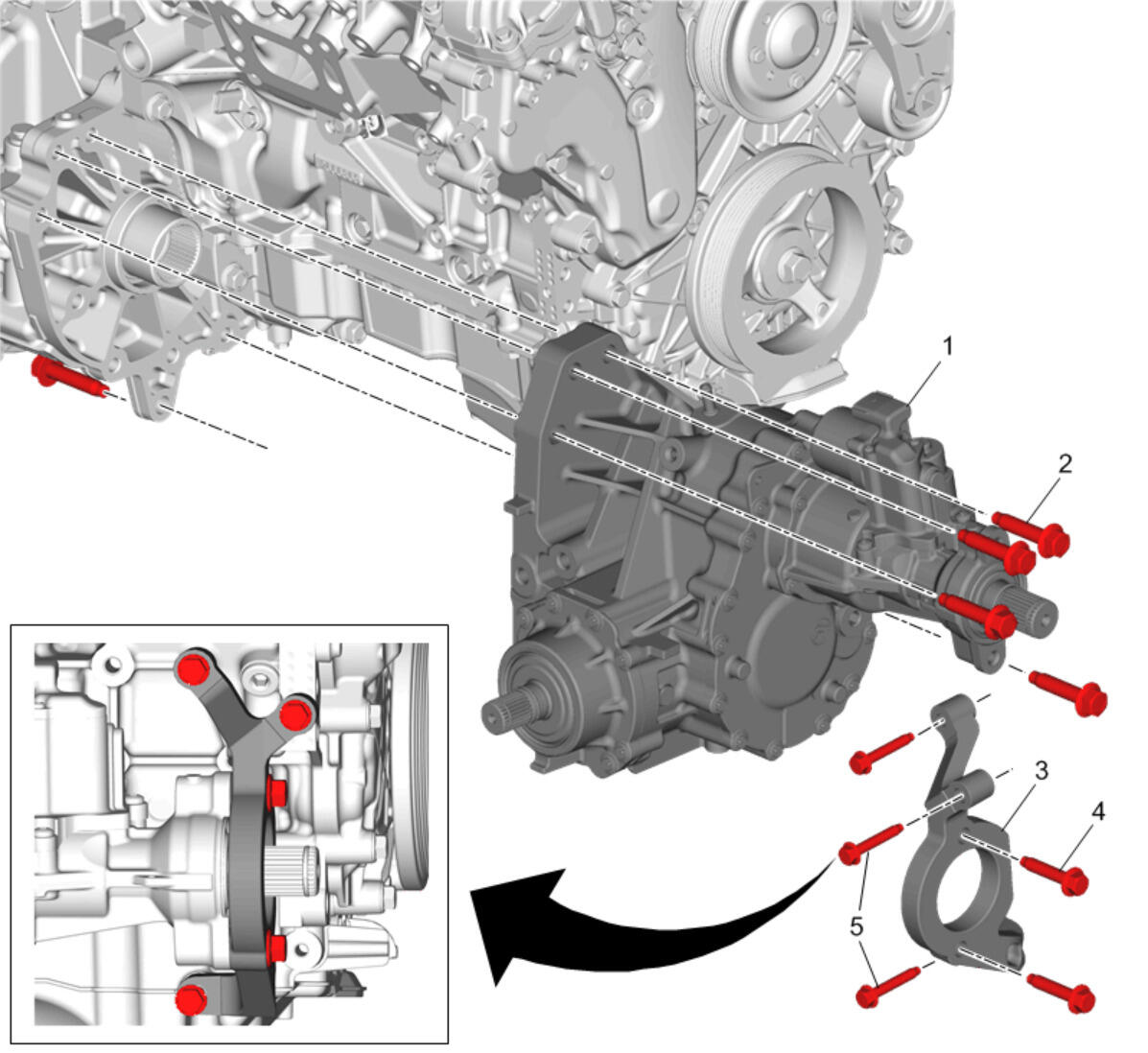

Fig 1: Exploded View Of Power Transfer Unit Mounting Components (With Transmission M3W)
GM4848373Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Power Transfer Unit Case
2 Power Transfer Unit Bolt [5x]
3 Transaxle Brace-to-Engine Bolt
4 Transfer Case-to-Transmission Bolt [3x]
5 Transfer Case-to-Transmission Bolt [2x]
