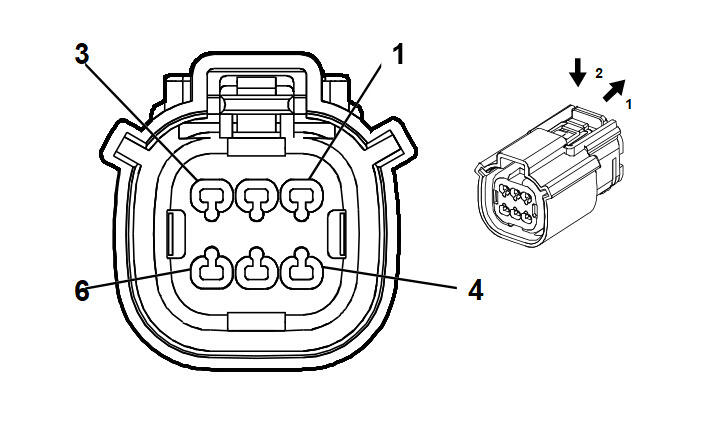

K43 Power Steering Control Module X3
|
|
Connector Part Information
- Harness Type: Power Steering Shaft Torque/Position Sensor
- OEM Connector: 33472-0679
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GN |
- |
- |
I |
- |
| 2 |
- |
BU |
- |
- |
I |
- |
| 3 |
- |
RD |
- |
- |
I |
- |
| 4 |
- |
BK |
- |
- |
I |
- |
| 5 |
- |
YE |
- |
- |
I |
- |
| 6 |
- |
WH |
- |
- |
I |
- |
