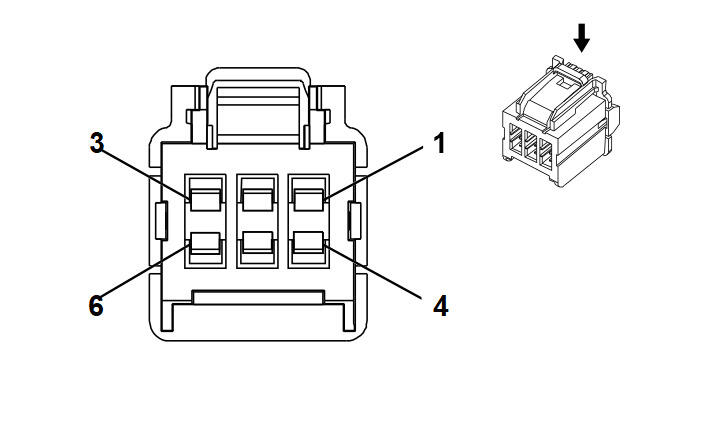

K39 Liftgate Control Module X2 (TB5/TC2)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13583929
- Service Connector: 19368139
- Description: 6-Way F 280 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BU/GY |
4682 |
Rear Closure Cinch Latch Motor Close Control |
I |
TB5/TC2 |
| 2 |
1 |
BN |
4681 |
Rear Closure Cinch Latch Motor Open Control |
I |
TB5/TC2 |
| 3 |
4 |
RD/GN |
1540 |
Battery Positive Voltage |
I |
TB5/TC2 |
| 4 |
0.35 |
RD/BU |
840 |
Battery Positive Voltage |
I |
TB5/TC2 |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
4 |
BK |
1350 |
Ground |
I |
TB5/TC2 |
