Accelerator Pedal with Position Sensor Assembly Replacement

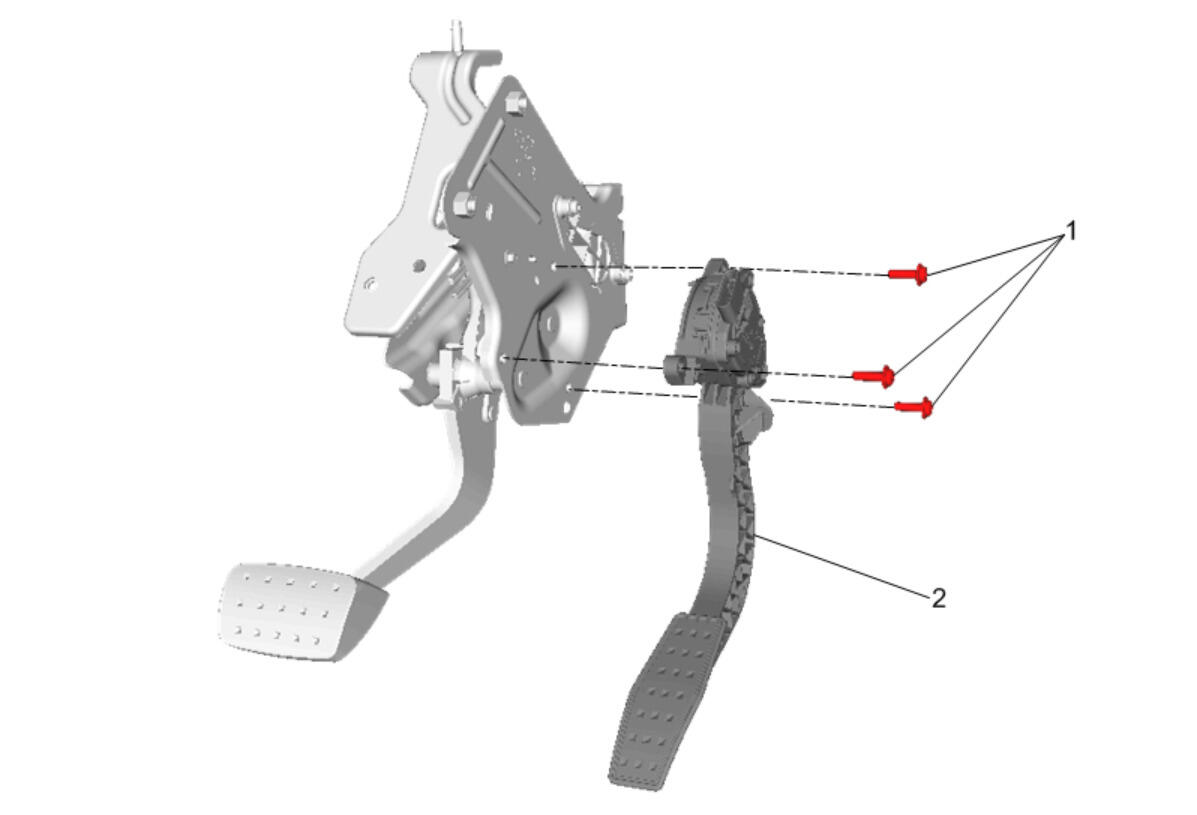

GM4292567
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Left Side
1 Accelerator Pedal Position Sensor Fastener [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical connector.
