Communication Interface Module Bracket Replacement

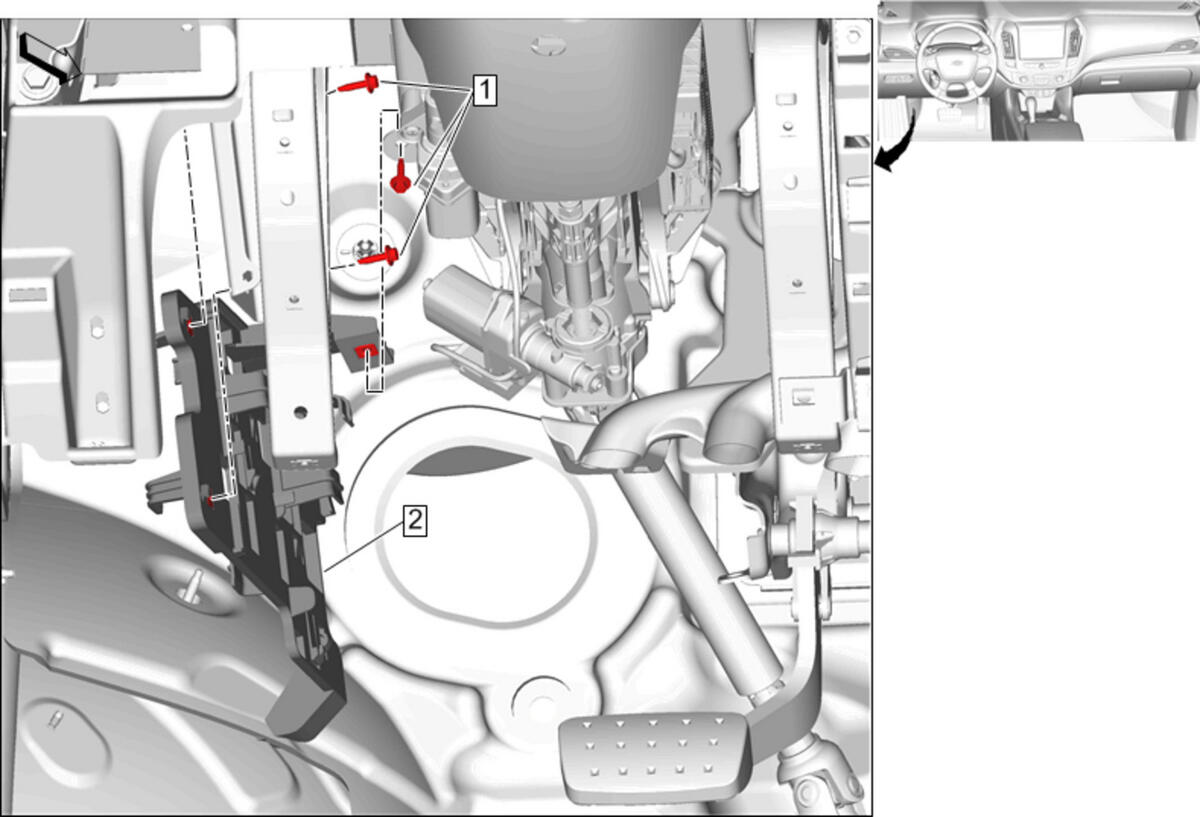

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Bracket Replacement
1	Communication Interface Module Bracket Bolt [3x] CAUTION: Fastener Caution NOTE: Some components missing for better clarity. Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Communication Interface Module Bracket Bolt [3x]

CAUTION:

NOTE:

Some components missing for better clarity.

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure
