Behind Front Fascia Components (Z75)

Behind Front Fascia Components (Z75)

Items
1. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
2. B55 Engine Hood Switch B55 Engine Hood Switch
3. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
4. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left

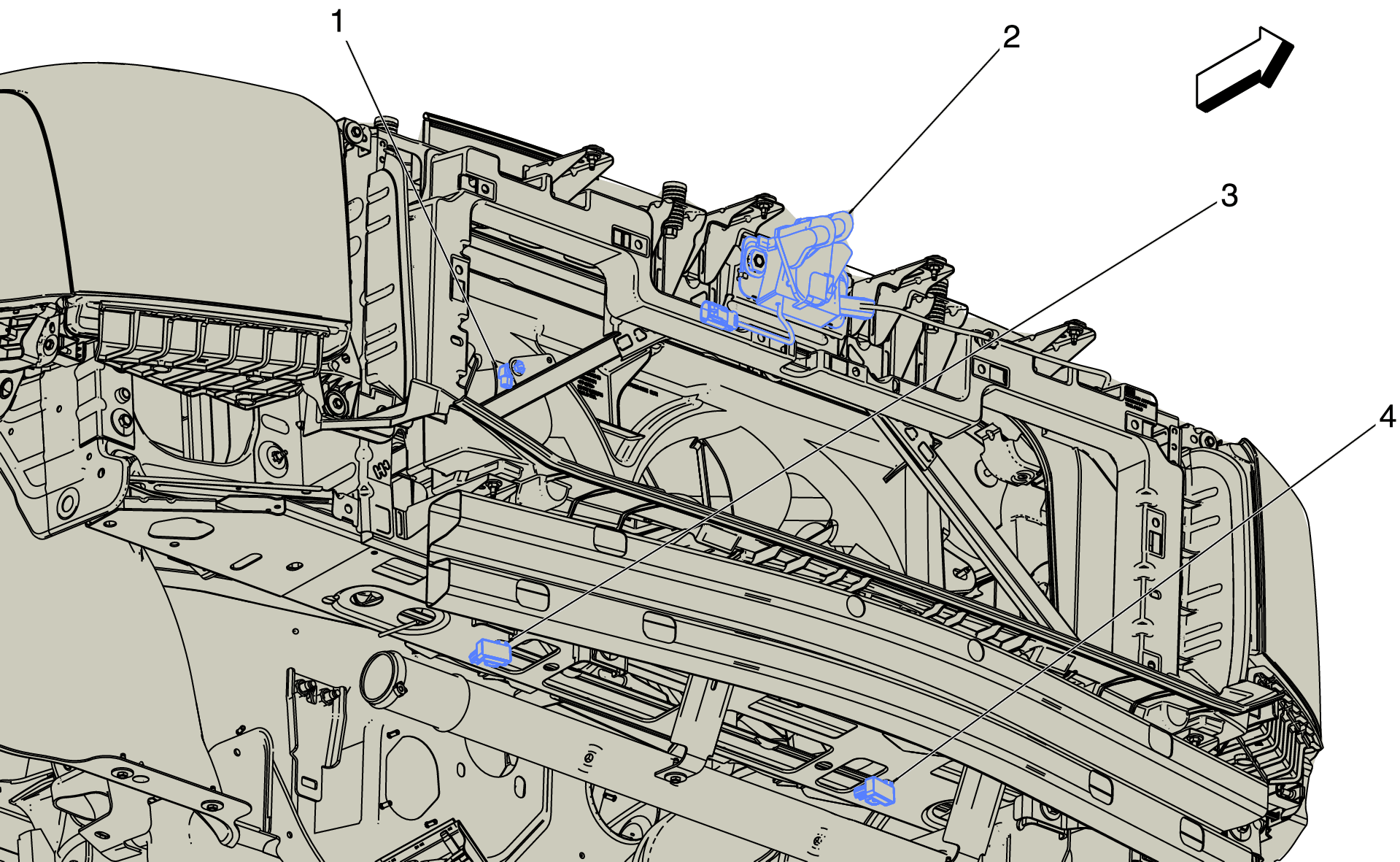

Fig 1: Behind Front Fascia Components (Z75)
GM3639539Courtesy of GENERAL MOTORS COMPANY
