Theft Deterrent Module Replacement (Cadillac)

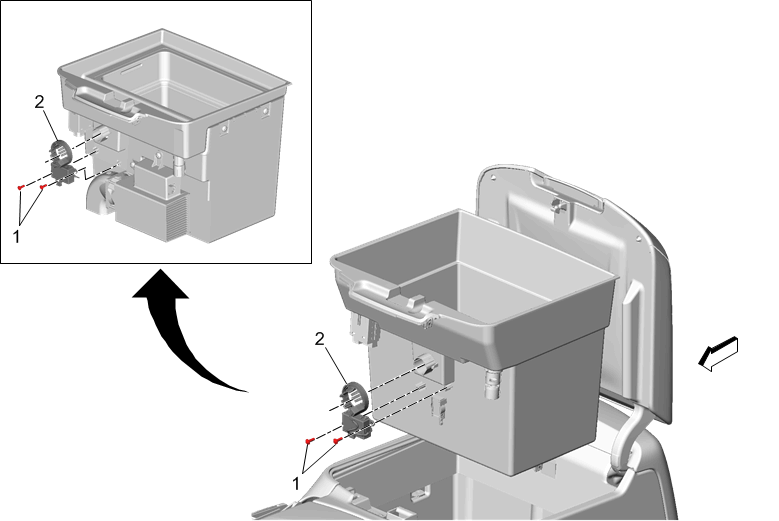

Fig 1: Theft Deterrent Module (Cadillac)

GM3993757

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

{ If equipped } Front Floor Console Front Compartment Replacement (Cadillac)
{ If equipped } Front Floor Console Center Compartment Replacement (Insert) , or Front Floor Console Center Compartment Replacement (Cadillac)

1

Theft Deterrent Module Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Theft Deterrent Module

Procedure

Disengage tabs and slide downward to remove.
Refer to Control Module References for programming and set up procedures, if required.
