Liftgate Latch Cover Replacement

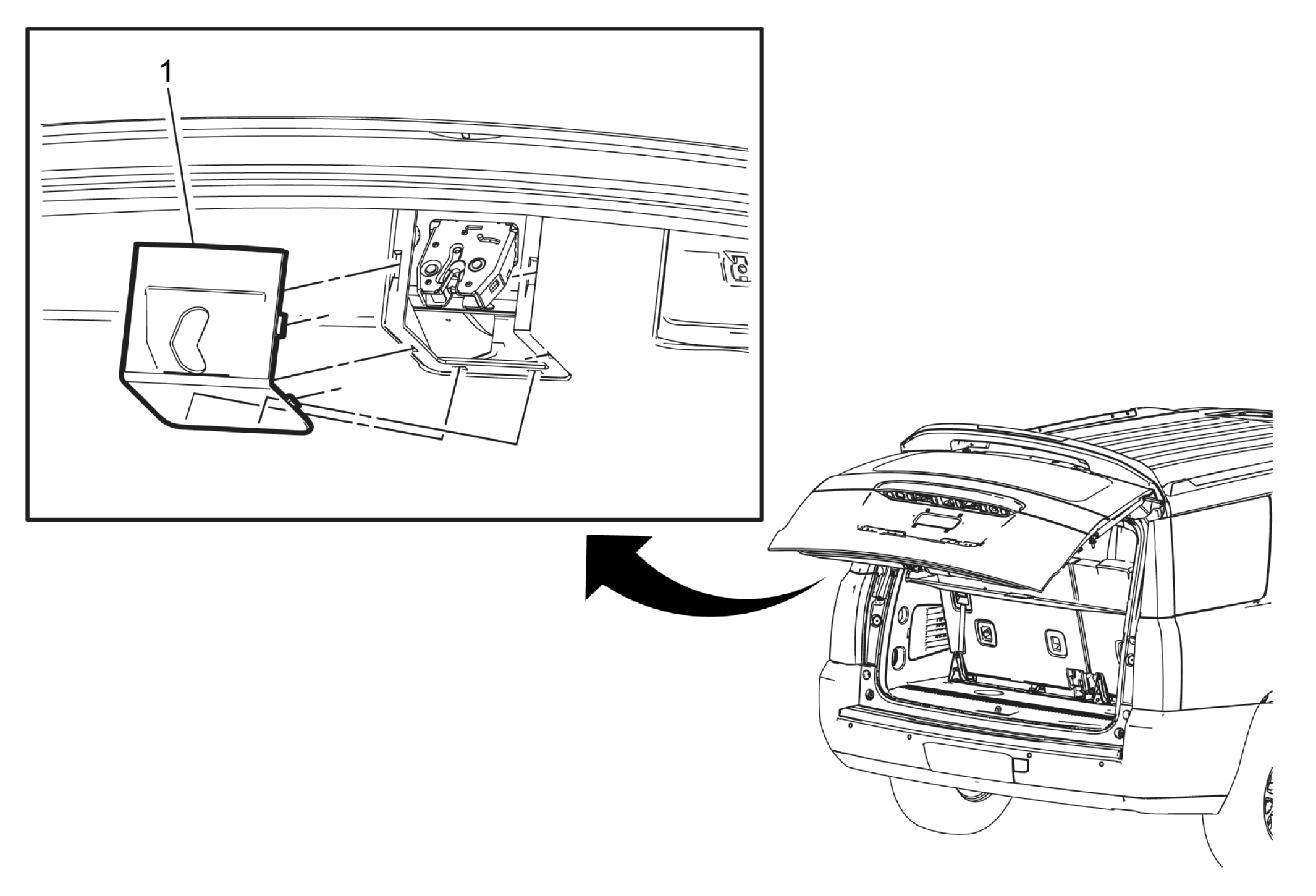

Fig 1: Liftgate Latch Cover
GM3637181Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Latch Cover
Procedure
Use a small flat-bladed tool to pull and release the liftgate latch cover from the liftgate latch assembly.
