Installation Procedure

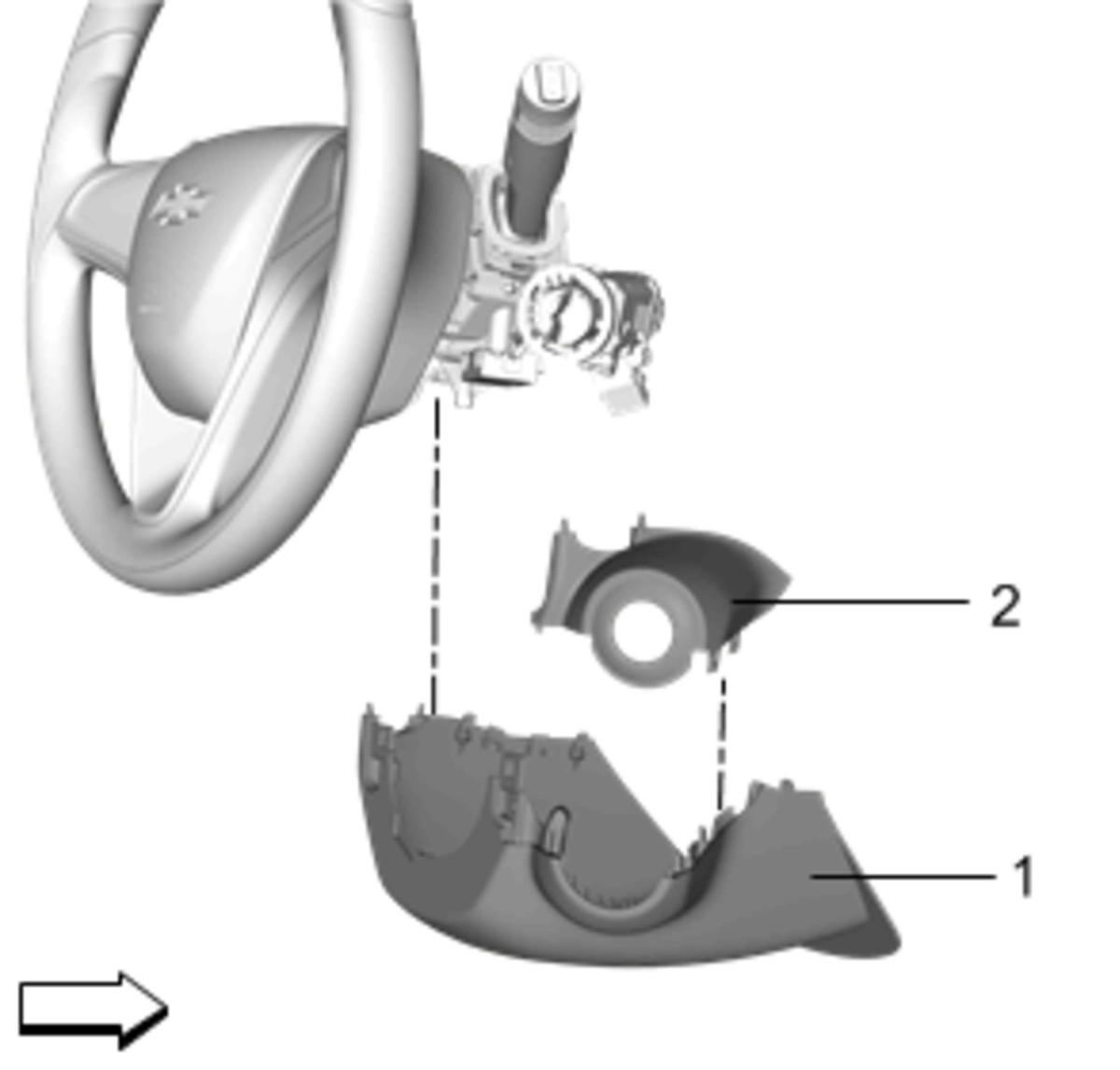

  1. GM4116984Courtesy of GENERAL MOTORS COMPANY

    Install the ignition lock cylinder opening cover (2) to the steering column trim cover.

  2. Install the steering column lower trim cover (1).

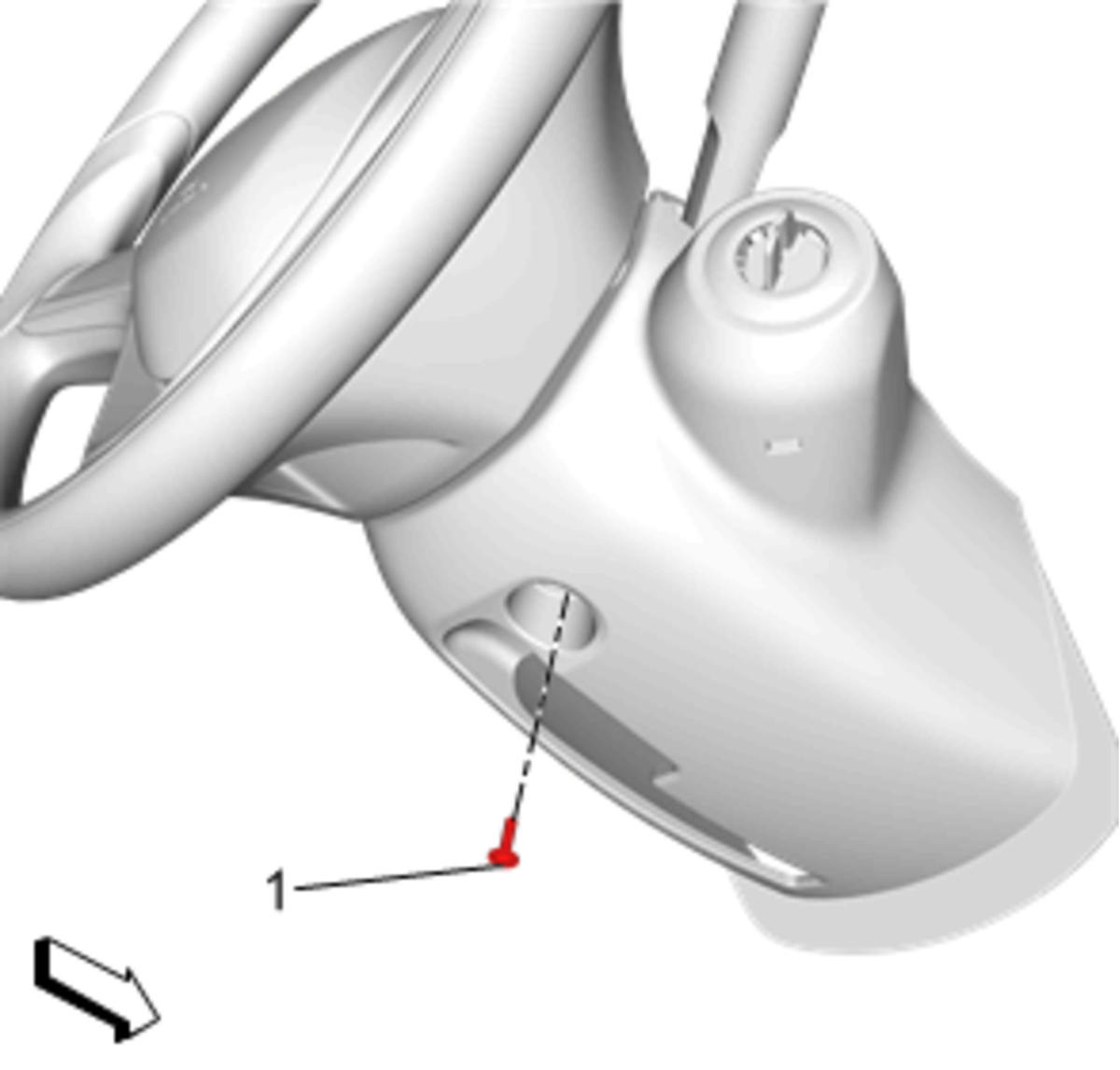

  3. GM4116983Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the steering column lower trim cover screw (1).

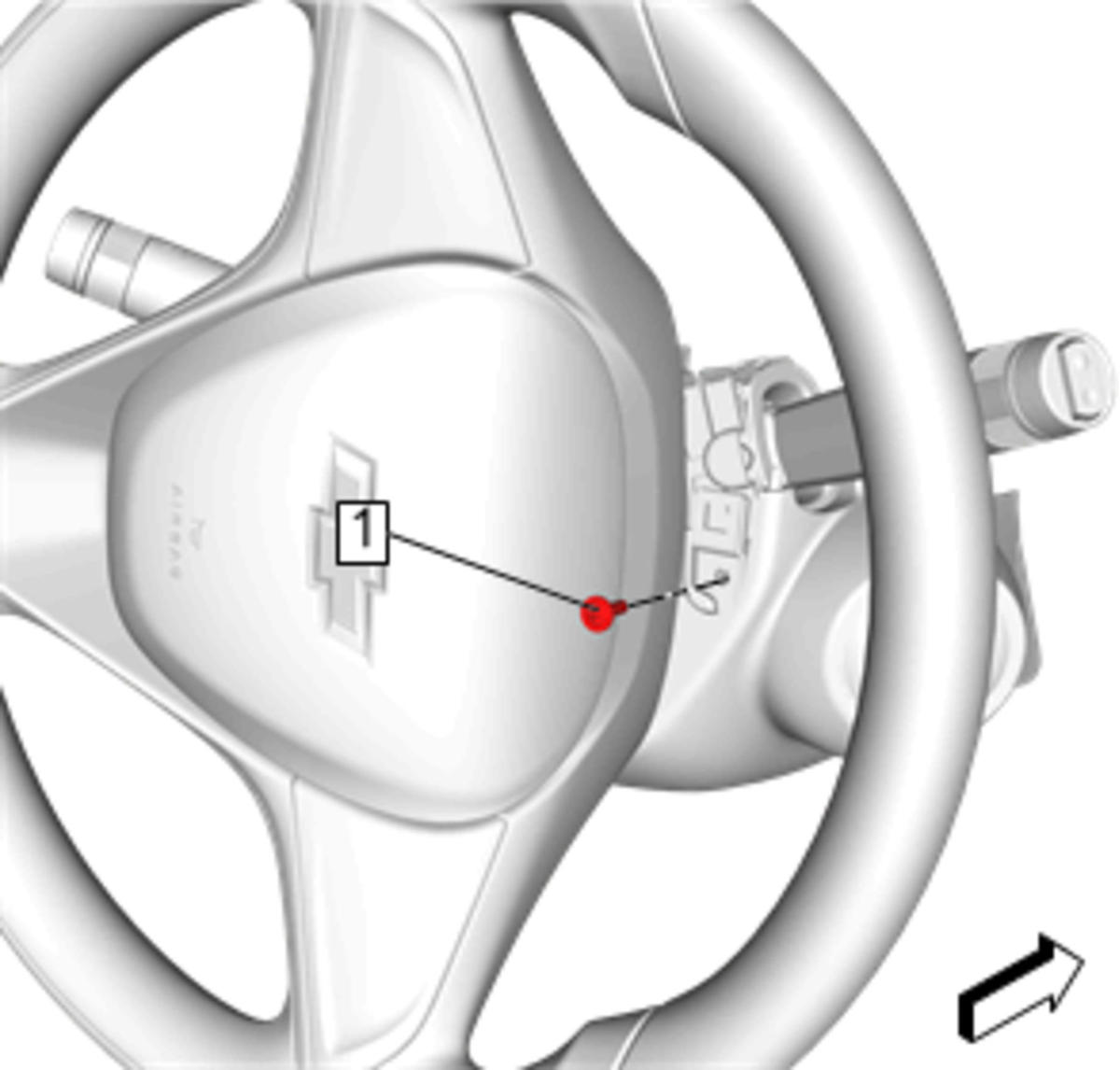

  4. GM4116981Courtesy of GENERAL MOTORS COMPANY

    Install the steering column lower trim cover screw (1).

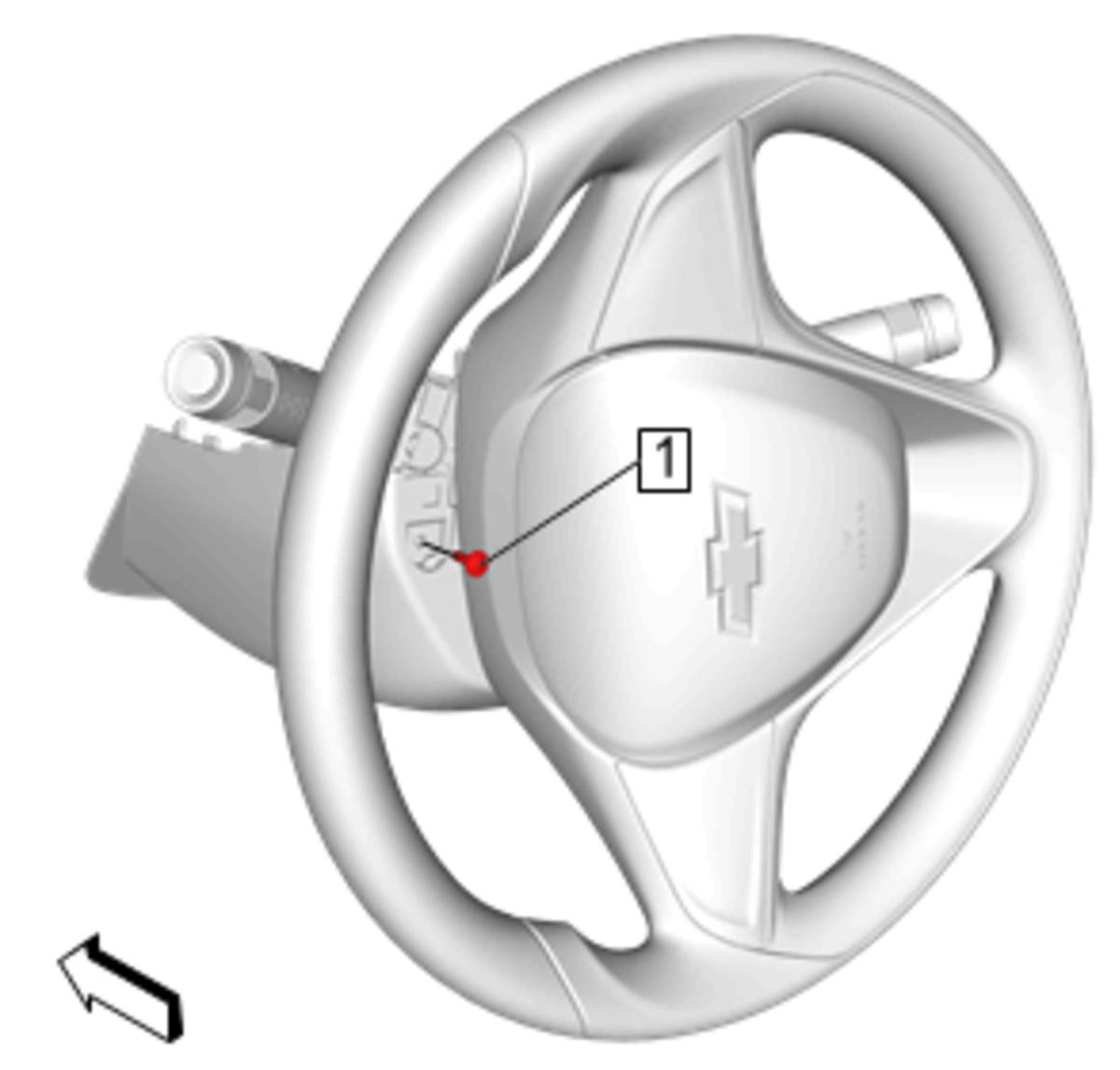

  5. GM4116980Courtesy of GENERAL MOTORS COMPANY

    Install the steering column lower trim cover screw (1).

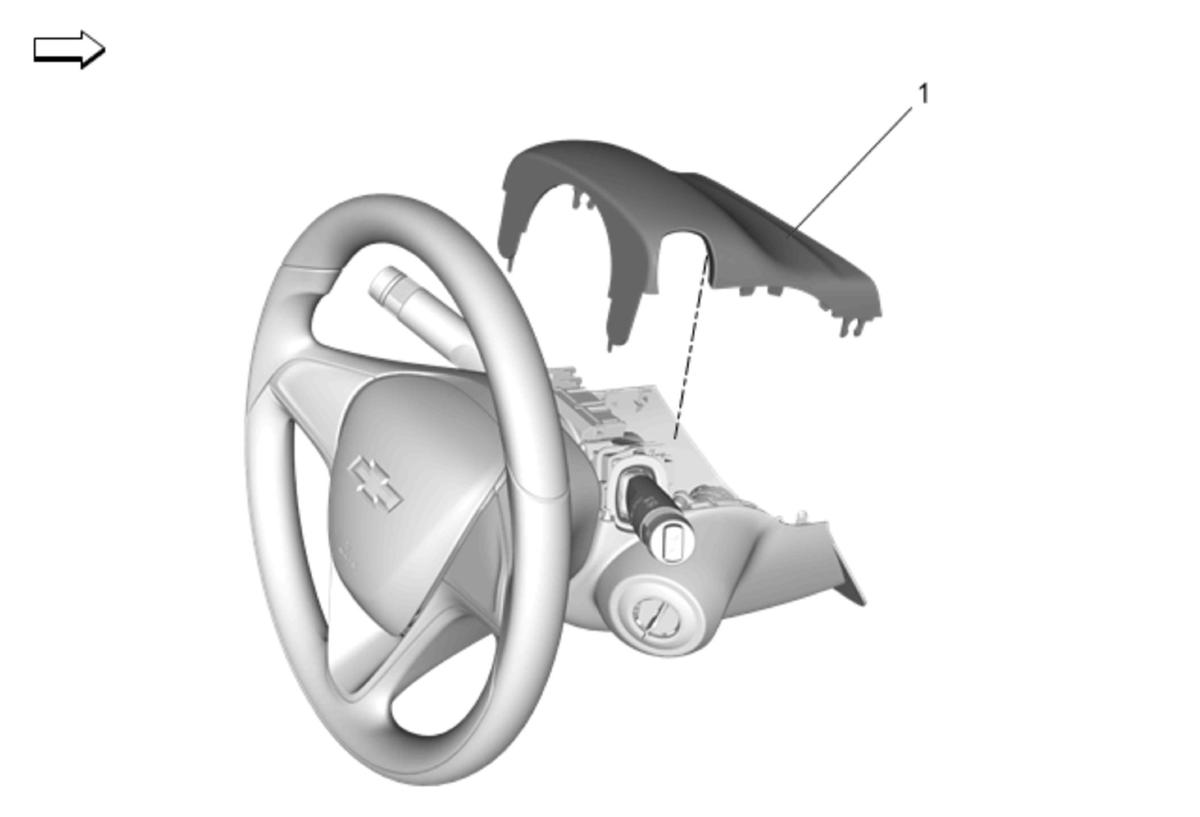

  6. GM4116979Courtesy of GENERAL MOTORS COMPANY

    Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
