Installation Procedure

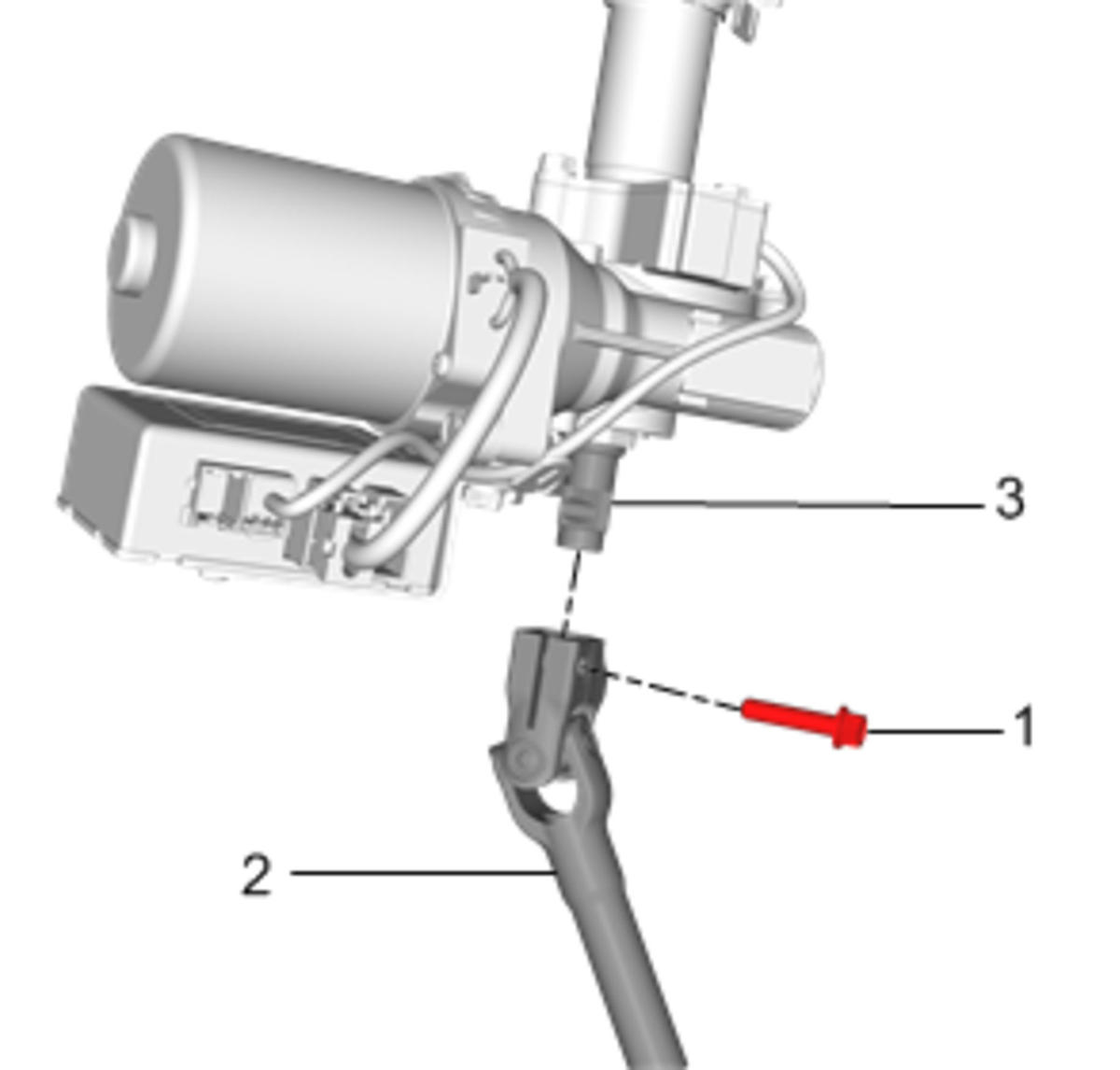

  1. GM4024811Courtesy of GENERAL MOTORS COMPANY

    Install the intermediate steering shaft (2) to the vehicle.

    2. NOTE:

    The recess of the fine tooth in the universal joint have to be precisely aligned to the recess of the fine tooth on the steering column shaft. The bore in the universal joint have to be aligned to the groove on the steering column shaft.

  2. Connect the intermediate steering shaft (2) to the steering column shaft (3).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the intermediate steering shaft upper bolt (1) and tighten to 34 N.m (25 lb ft).

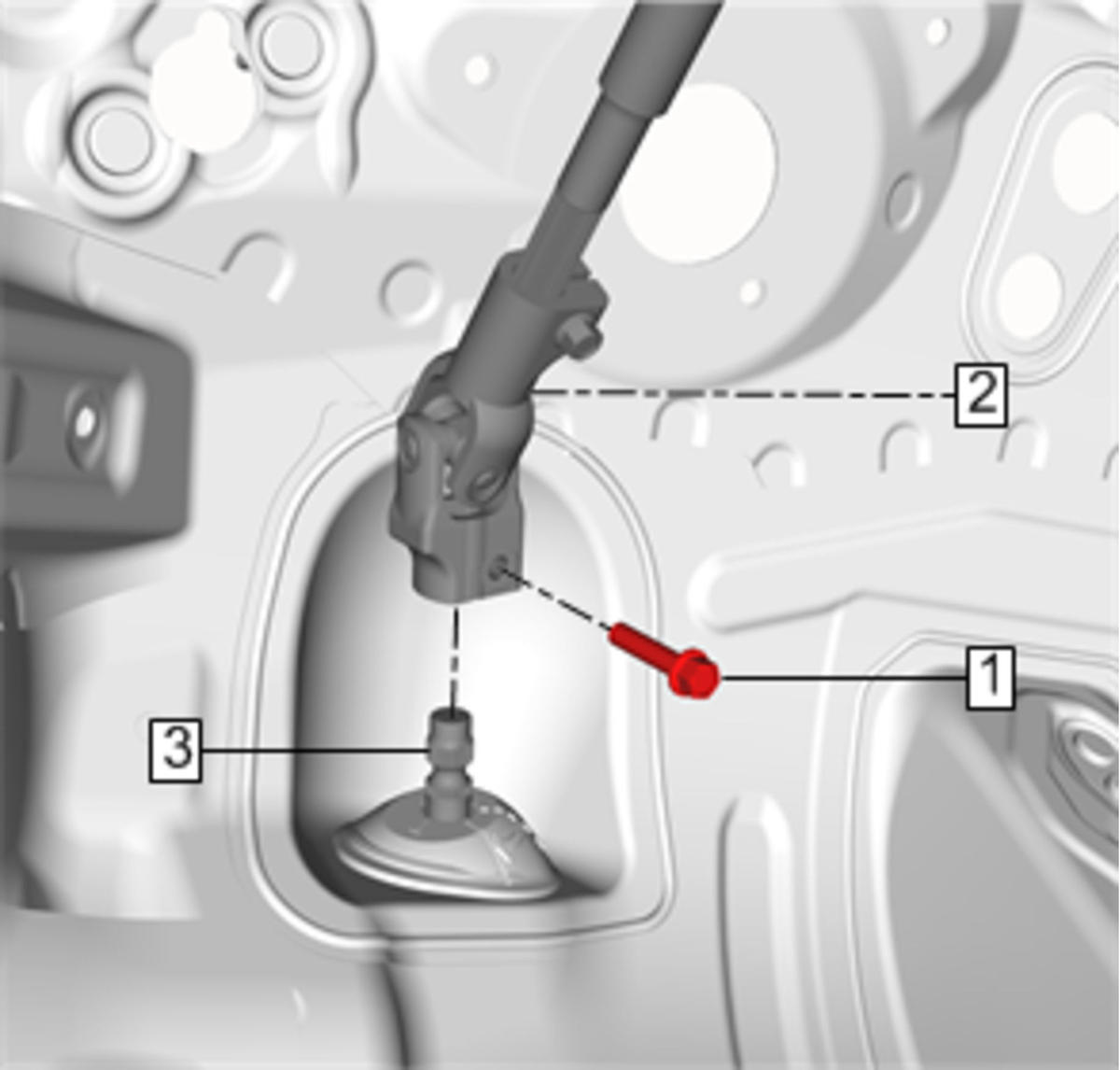

  4. GM4024804Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The recess of the fine tooth in the universal joint have to be precisely aligned to the recess of the fine tooth on the steering gear pinion. The bore in the universal joint have to be aligned to the groove on the steering gear pinion.

    Connect the intermediate steering shaft (2) to the steering gear pinion shaft (3).

  5. Install the intermediate steering shaft lower bolt (1) and tighten to 34 N.m (25 lb ft).
