Inside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS COMPANY

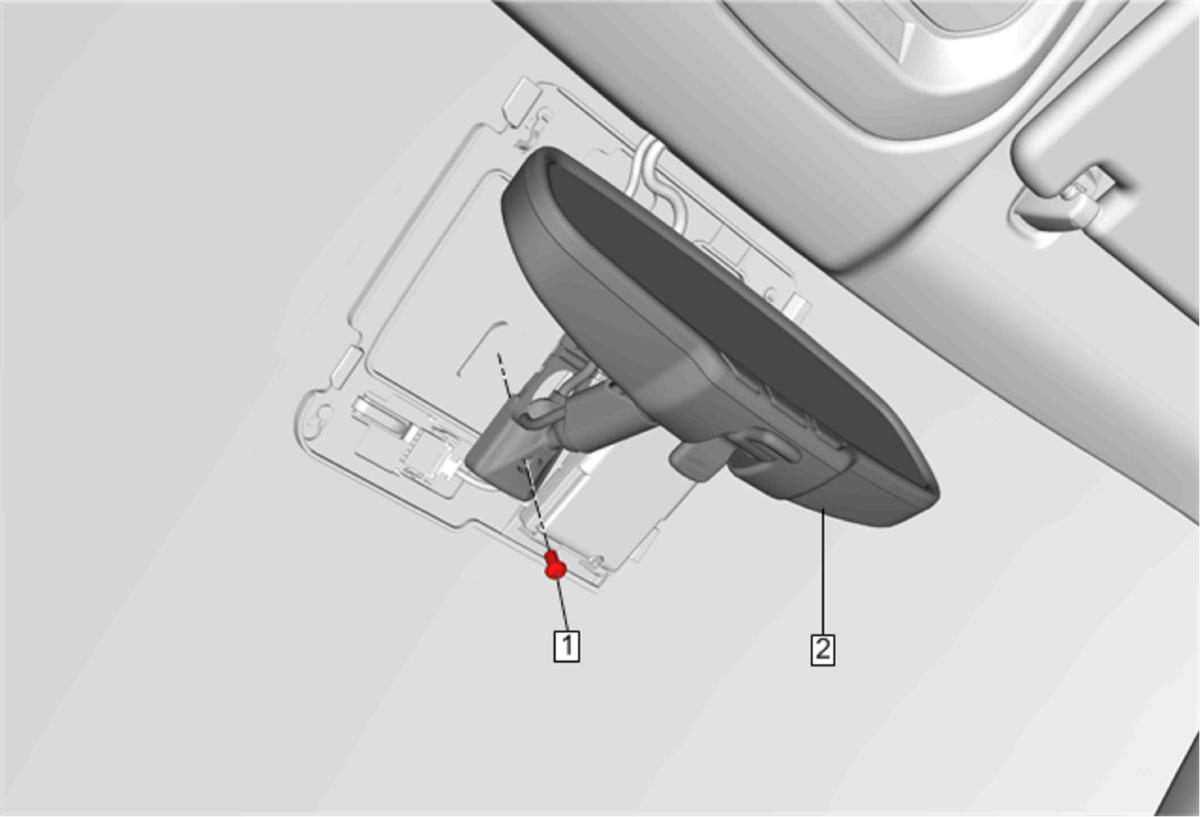

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror Procedure Disconnect the electrical connector. Slide the mirror in an upward motion in order to remove.

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .

Inside Rearview Mirror Screw

CAUTION:

Tighten
2 N.m (18 lb in)

Inside Rearview Mirror

Procedure
