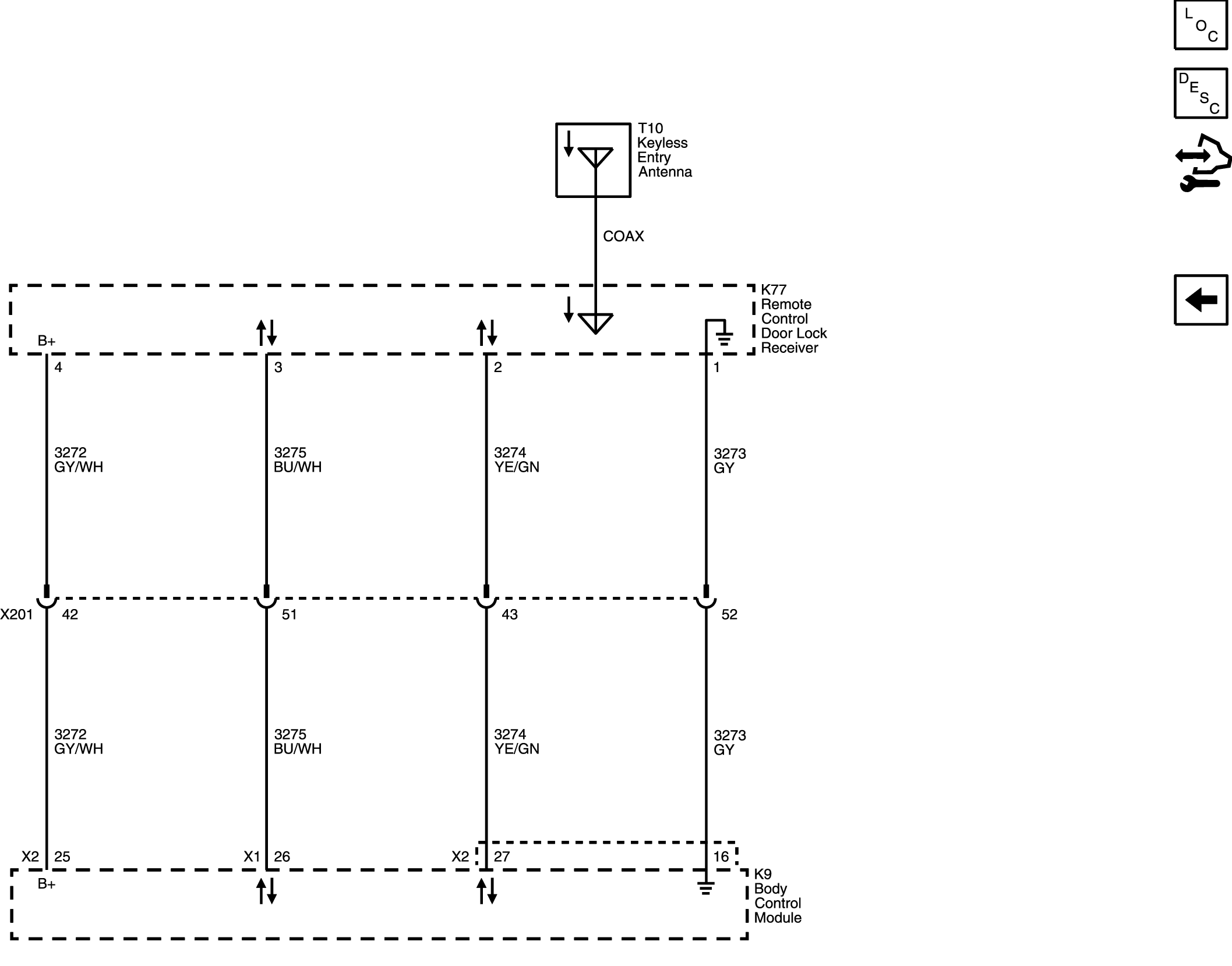

Home >> Chevrolet >> 2018 >> Spark LS, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry (XL8)
