Removal Procedure

  1. Position the window approximately half way down in the door.
  2. Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
  3. Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  4. GM4025113

    Remove the rear side door inside handle (3). Refer to Rear Side Door Inside Handle Replacement .

  5. GM4025119

    Remove the rear side door inside handle rod (1). Refer to Rear Side Door Inside Handle Rod Replacement .

  6. GM4086336

    Remove the rear side door locking rod bellcrank rod (2) and locking rod (3). Refer to Rear Side Door Locking Rod Bellcrank Rod Replacement .

  7. GM4045917

    Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .

  8. GM4086599

    Remove the rear side door window belt reveal molding (1). Refer to Rear Side Door Window Belt Reveal Molding Replacement .

  9. GM4223692

    Remove the rear side door window (1) from the regulator (2) and fix the window with proper tool and lower the regulator fully.

  10. GM4111024

    Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

  11. GM4111007

    Remove the rear side door window channel screw (1) and Remove the rear side door window channel (2). Refer to Rear Side Door Window Channel Replacement .

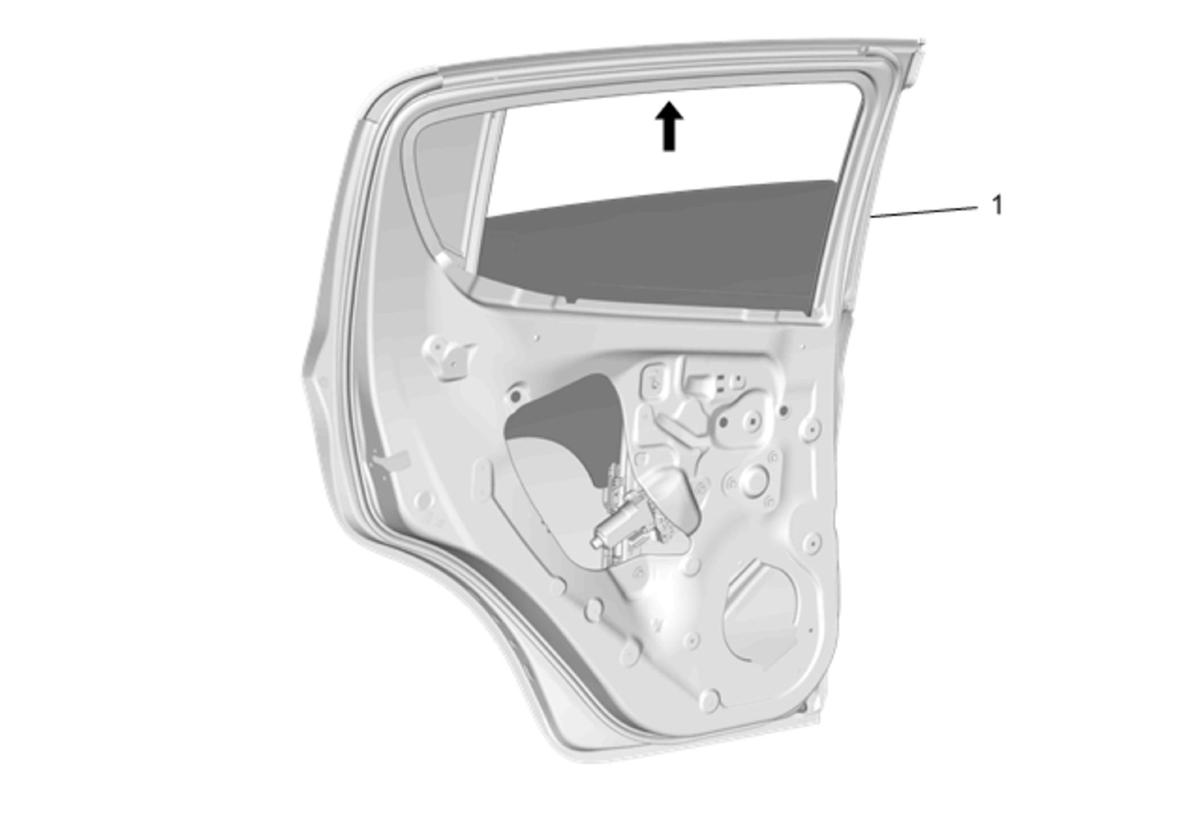

  12. GM4086363

    Rotate the rear door window as necessary to remove it from the door and remove the rear side door window from the rear side door.
