Outside Rearview Mirror Housing Bezel Replacement

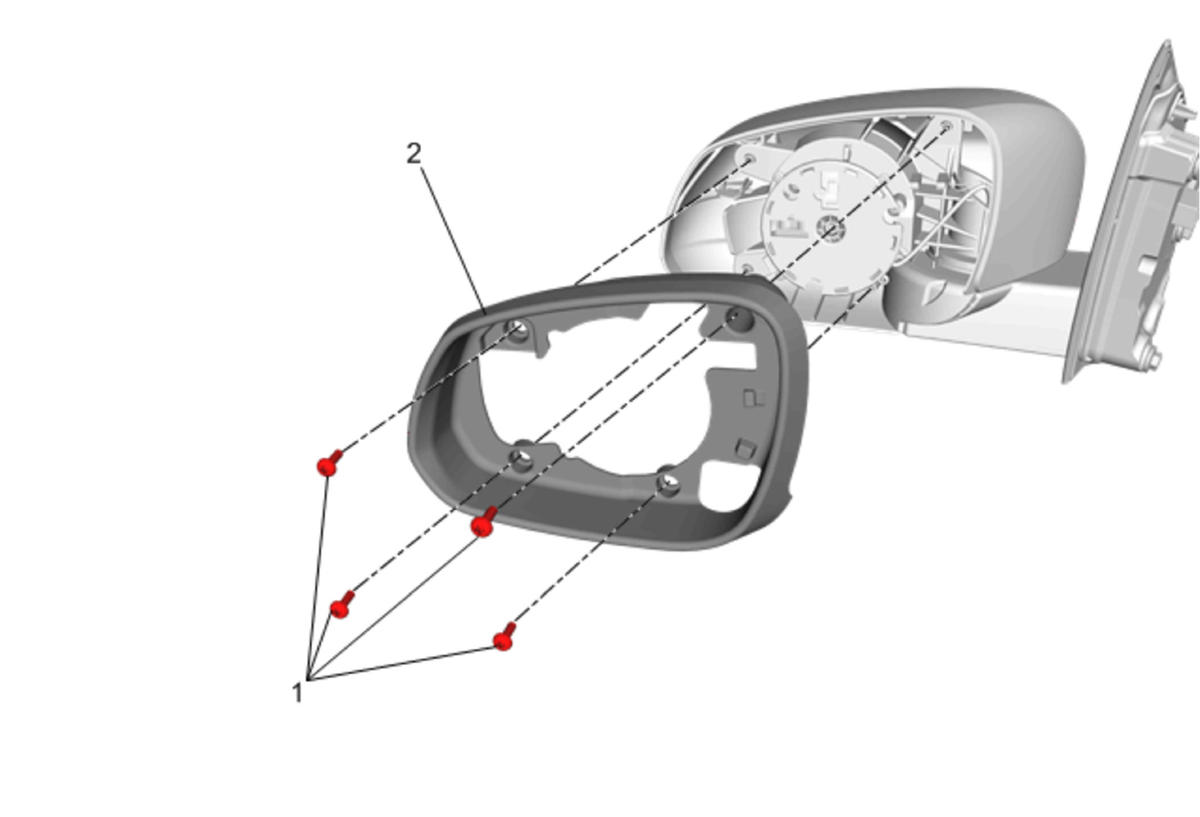

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement . |
|
| 1 | Outside Rearview Mirror Housing Cover Bezel Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Outside Rearview Mirror Housing Bezel |
