Rear Seat Center Shoulder Belt Replacement

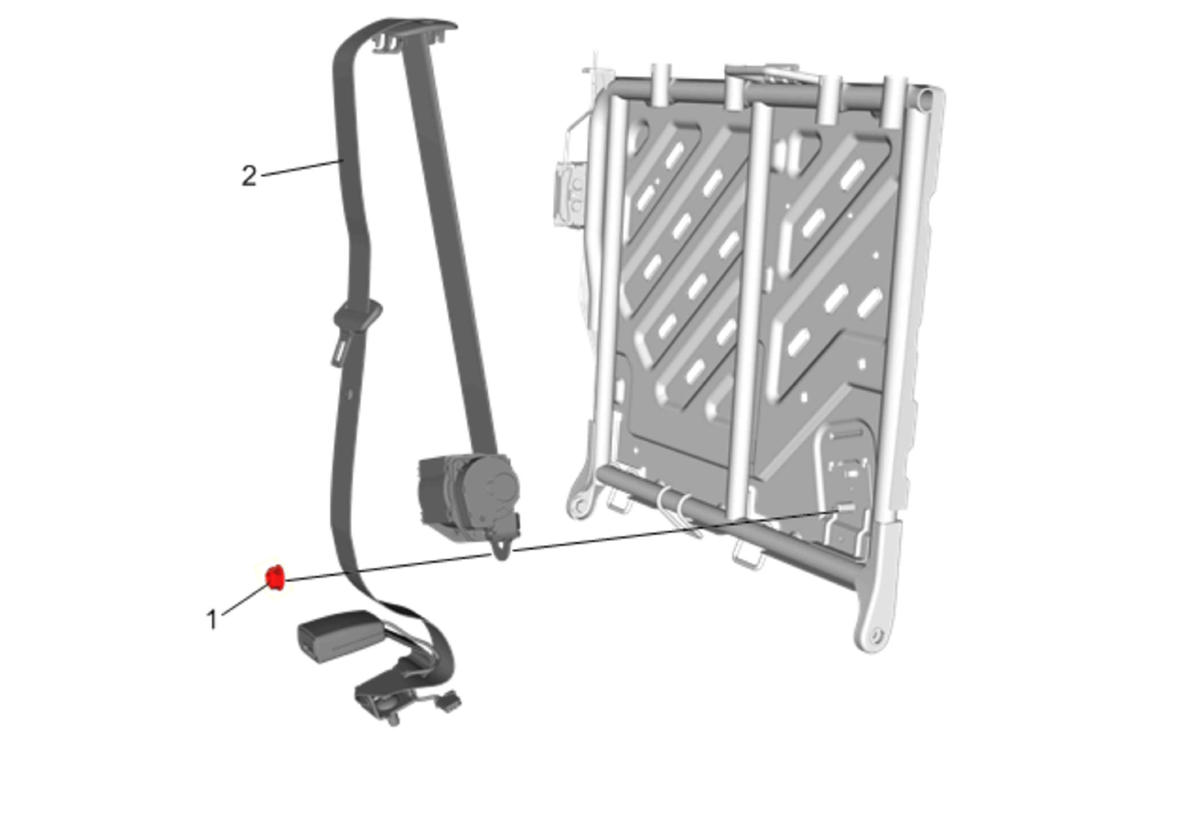

Callout	Component Name
Preliminary Procedures Remove the rear seat belt buckle. Refer to Rear Seat Belt Buckle Replacement . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Base)Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)Rear Seat Back Cushion Cover and Pad Replacement (60 Percent Seat) . Remove the center shoulder belt cover from the rear seat back cushion frame.
1	Rear Center Seat Belt Retractor Nut CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Belt Retractor Assembly

Callout

Component Name

Preliminary Procedures

Rear Center Seat Belt Retractor Nut

CAUTION:

Tighten
45 N.m (33 lb ft)

Rear Seat Center Belt Retractor Assembly
