Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

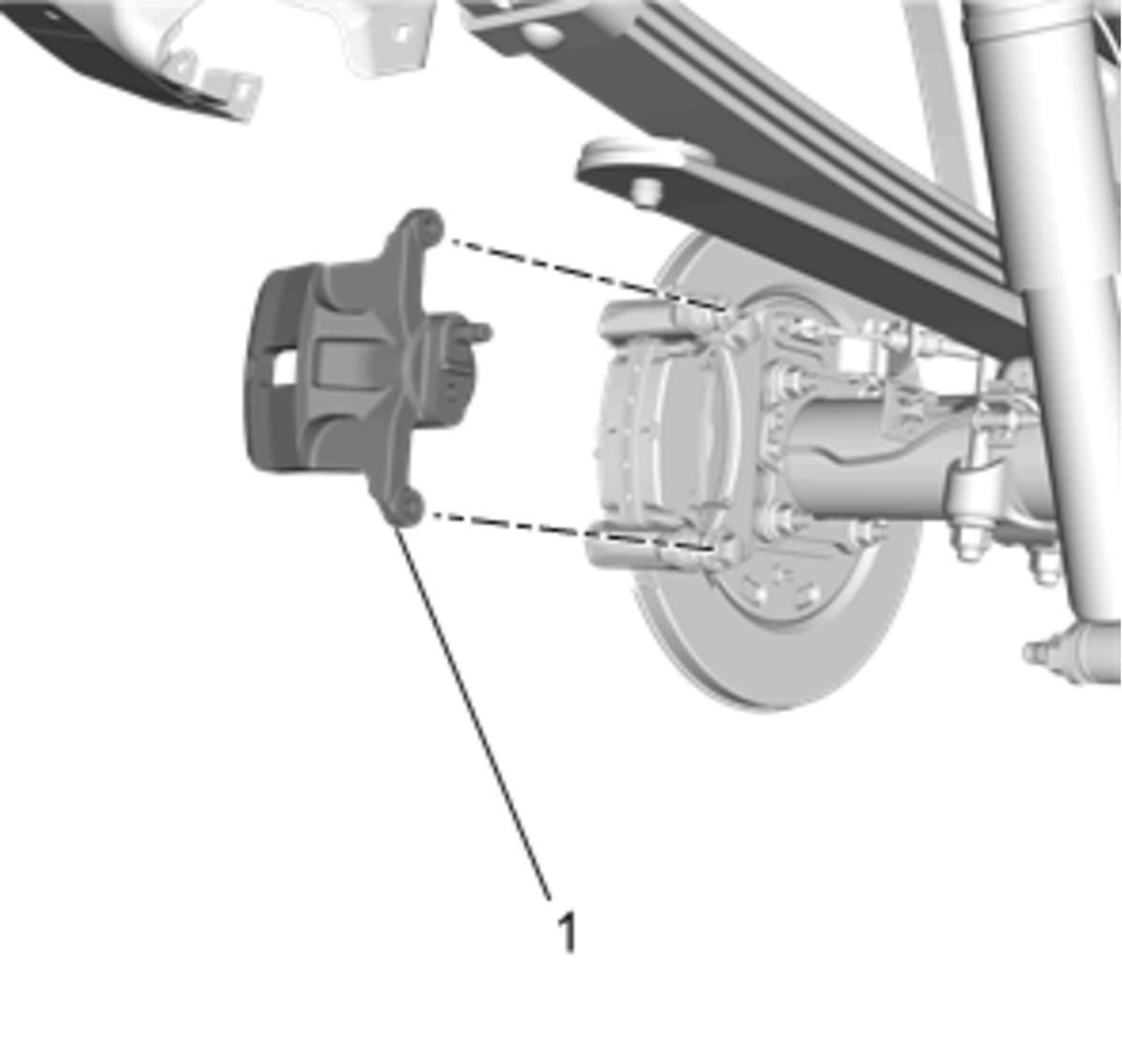

Position the brake caliper (1) over the brake pads and to the caliper bracket.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

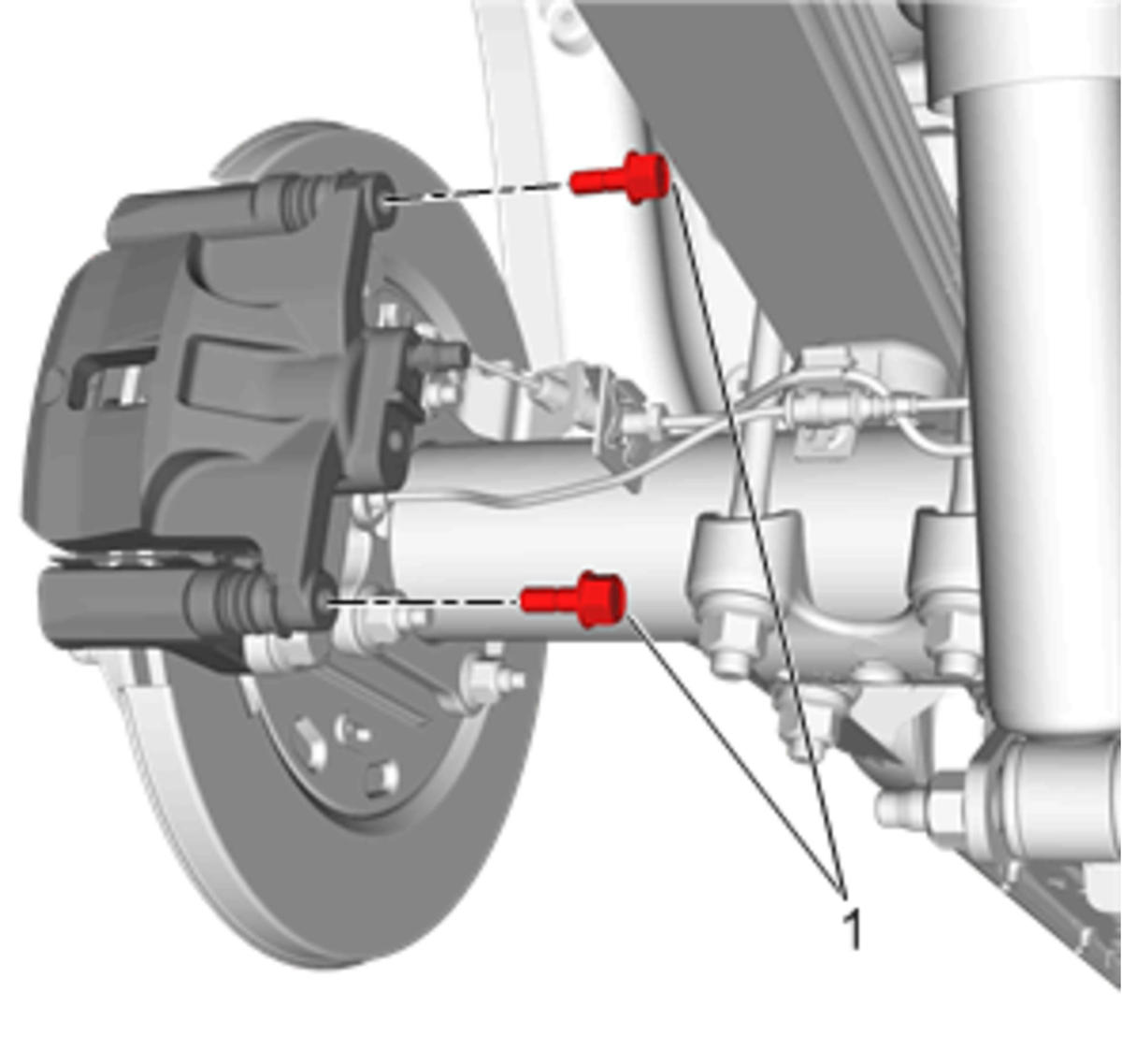

Install the brake caliper guide pin bolts (1) and tighten to 34 N.m (25 lb ft).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install new brake hose fitting gaskets.

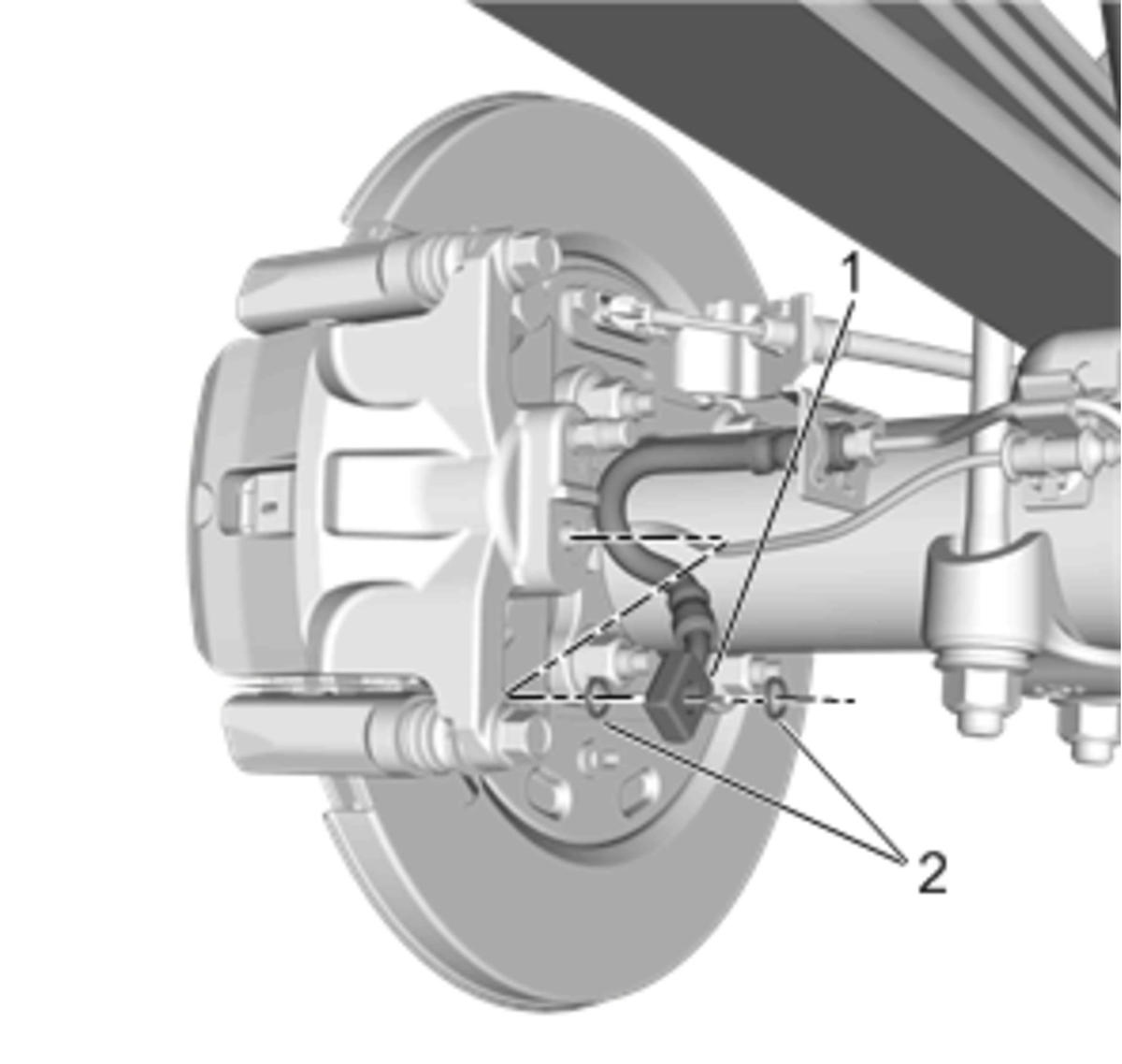

Position the brake hose fitting (1) with 2 new brake hose fitting gaskets (2) to the brake caliper.
Courtesy of GENERAL MOTORS COMPANY

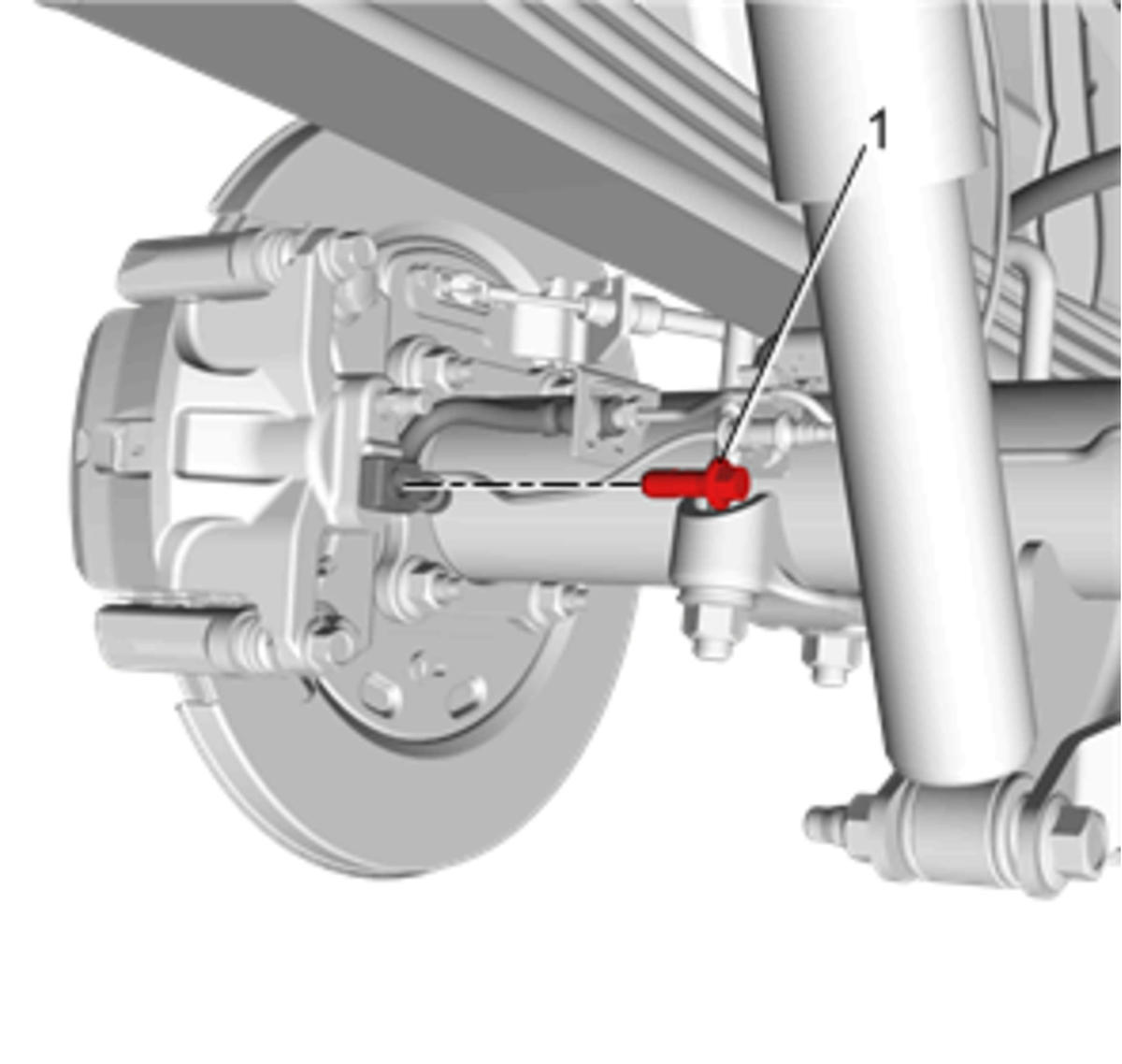

Install the brake hose fitting bolt (1) and tighten to 34 N.m (25 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
