Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

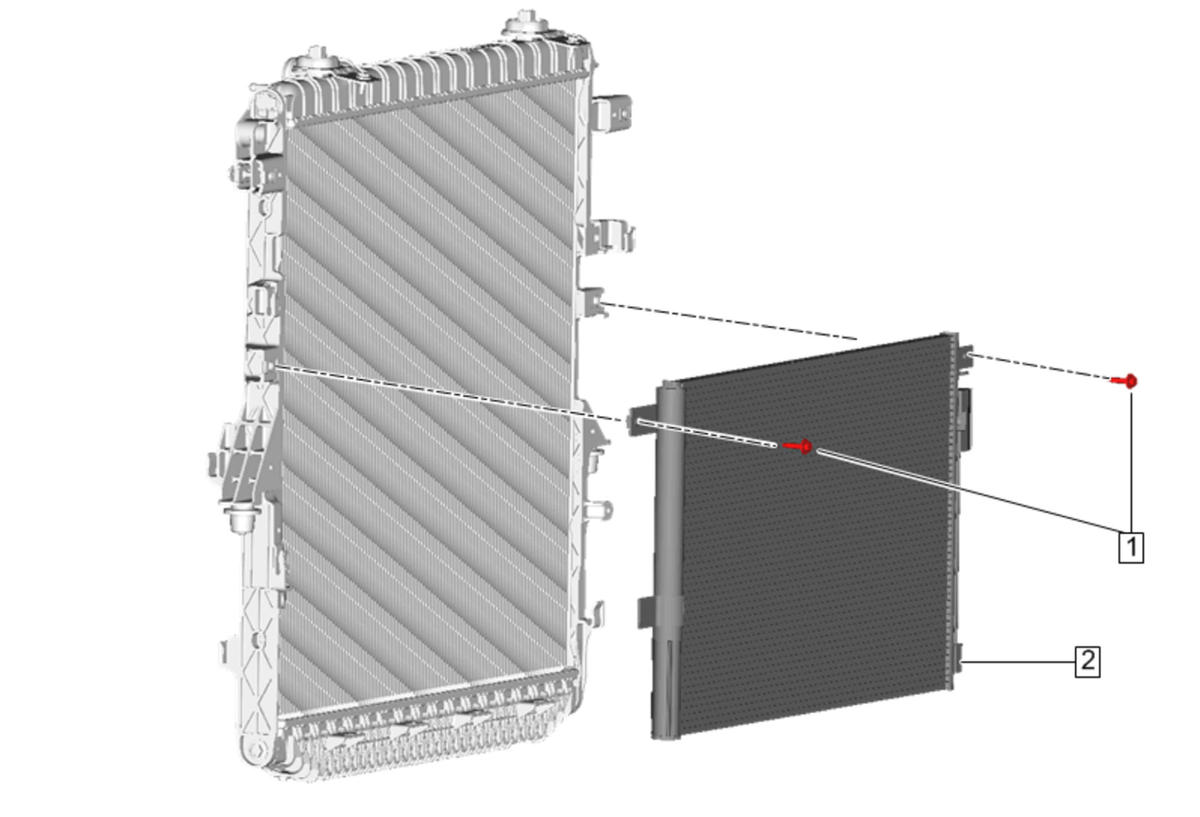

- Install Air Conditioning Condenser (2) - Air Conditioning Condenser Replacement (LCV, LWN)

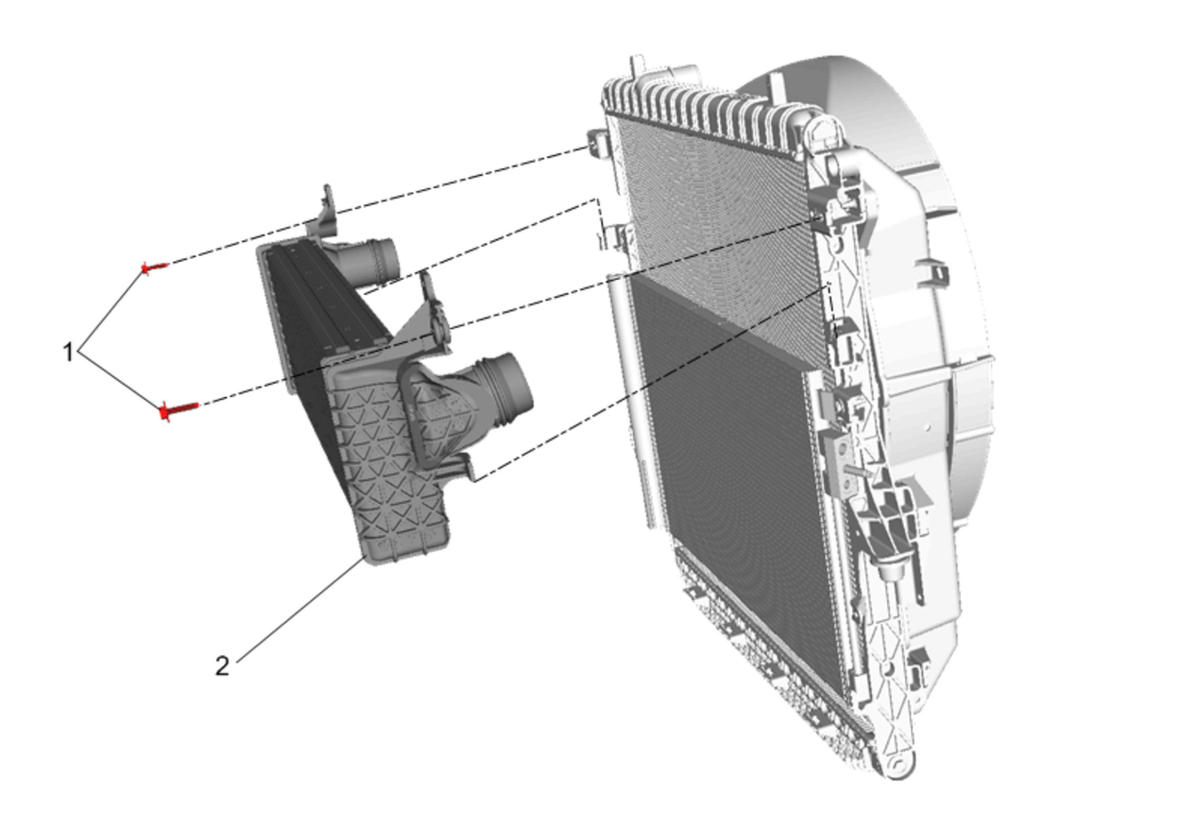

- Install Charge Air Cooler (2) - Charge Air Cooler Replacement

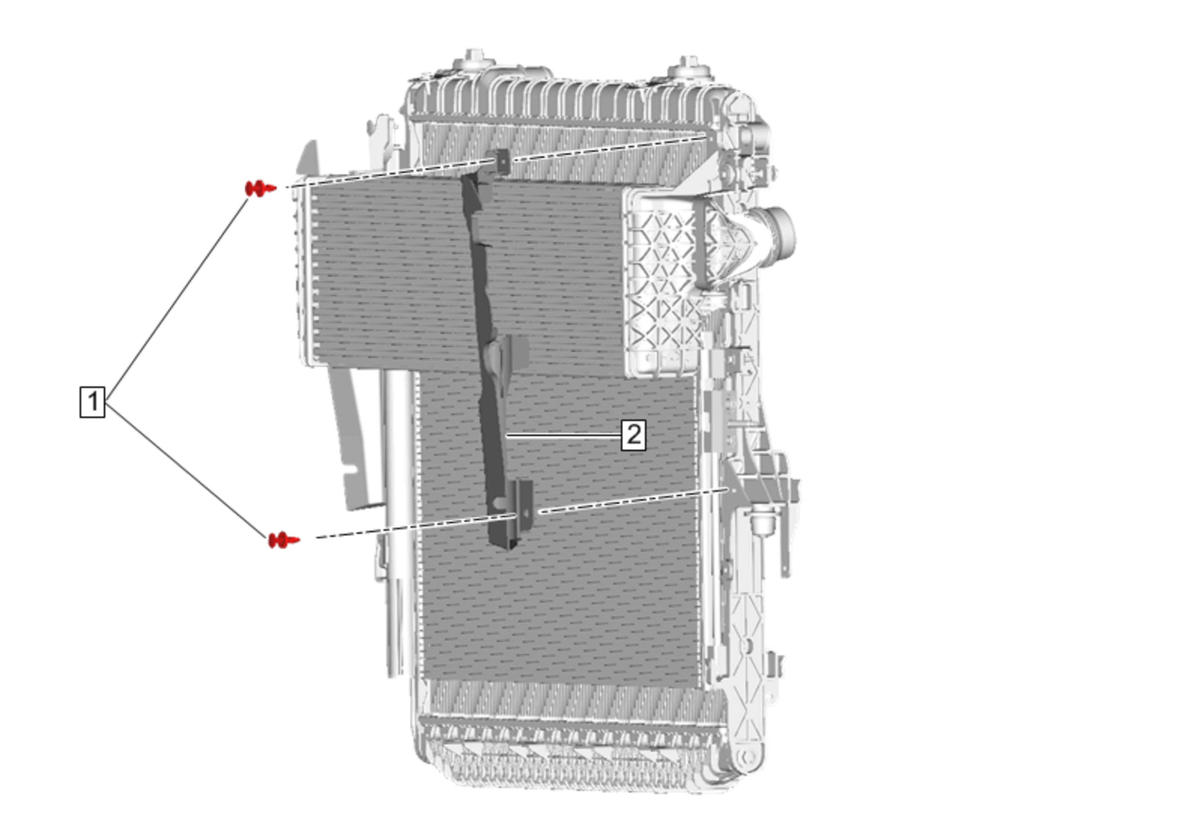

- Install Radiator Air Side Baffle - Right Side (2) - Radiator Air Side Baffle Replacement - Right Side (LWN)

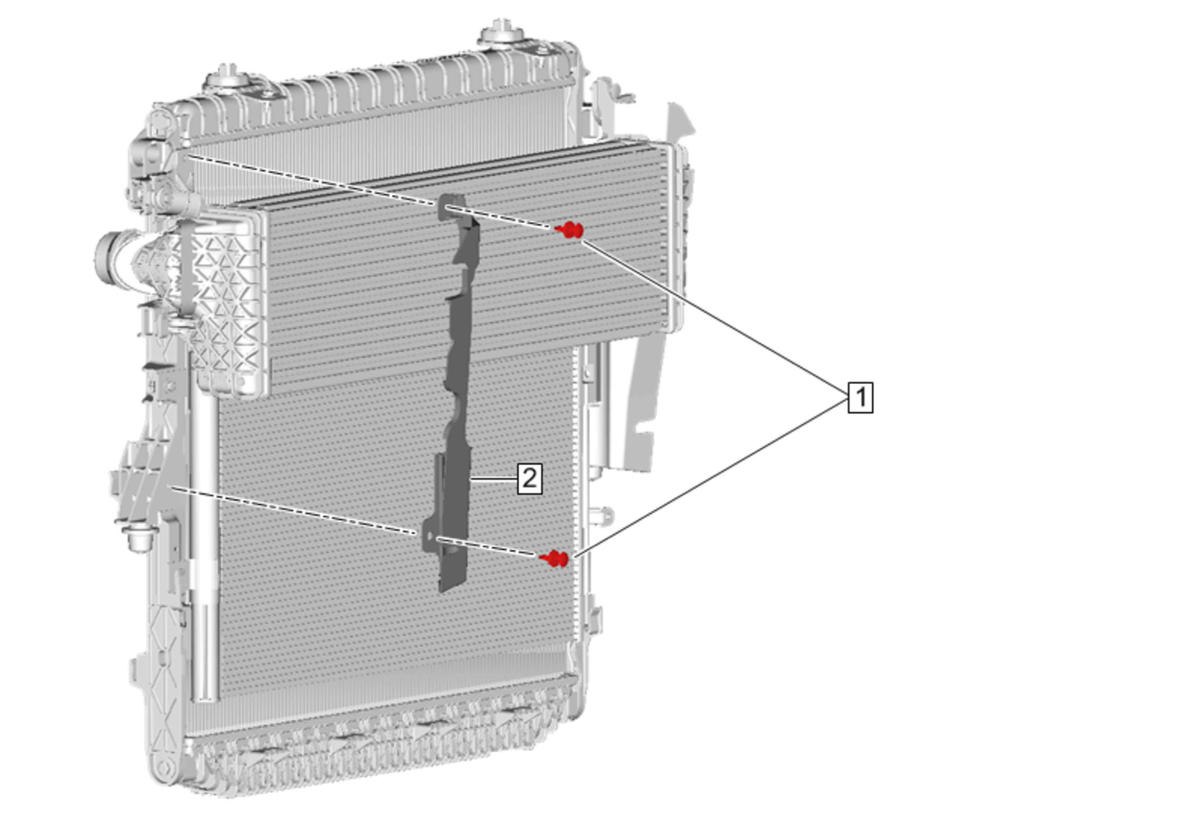

- Install Radiator Air Side Baffle - Left Side (2) - Radiator Air Side Baffle Replacement - Left Side (LWN)
- Install Radiator Assembly - Condenser, Fan, and Radiator Assembly Removal and Installation (LWN)
